Setpoints
MXD70 Setpoints, Current Outputs,
and Digital Inputs Configuration Guide
- 5 -
Setpoints
Setpoints
The MXD70 Series can be fitted with up to six setpoint relays designated 1 – 6. Setpoints 1 – 4 are
“Change Over” relays while 5 – 6 are “Normally Open” relays. Each individual setpoint can be assigned
to any one of the Sensor Input Channels. The Setpoint/Relays menu contains all of the necessary setup
functions to configure the setpoint sources. The instrument indicates the status of the enabled
setpoints by means of 6 LED indicators located above the main instrument display. A lit LED indicates
that the setpoint / Relay is active. If the LED is blinking it indicates a dose alarm has occurred on that
setpoint.

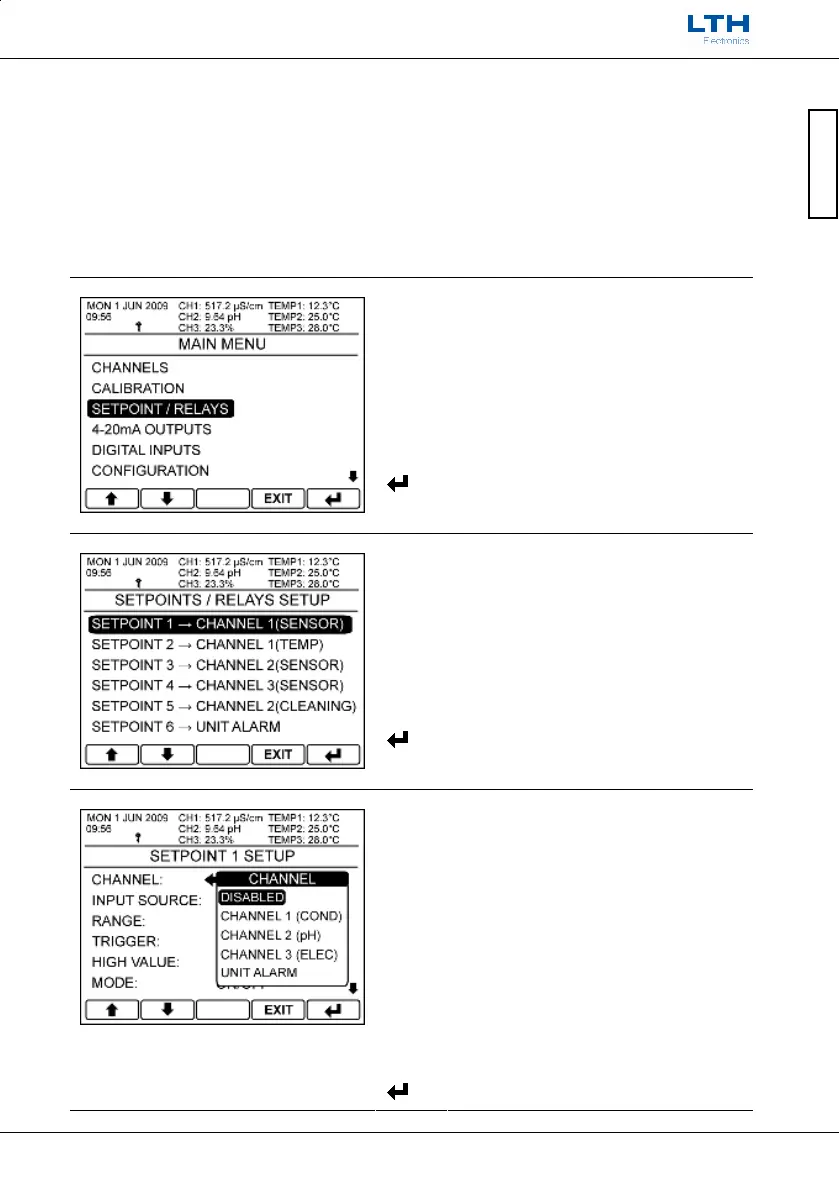

Main Menu
From the front screen press the menu button to
show the main menu options and select
Setpoint/Relays.
/ – Select Option
EXIT
– Return to Front Screen
– Enter Option
Setpoints / Relays Setup
Select the Setpoint you wish to edit.
/ – Select Option
EXIT
– Return to Main Menu
– Enter Option
Channel
The “Sensor Input Channel” the setpoint is to be
associated with. The channels shown depend on the
configuration of the instrument. For more
information regarding the Unit Alarm option see the
setpoint alarm mode section.
To disable the setpoint select the disabled option.
This will turn off the setpoint and clear any error
messages associated with it.
/ – Select Option
EXIT
– Cancel
– Save Selection
To Next Page
