Current Outputs

MXD70 Setpoints, Current Outputs,
and Digital Inputs Configuration Guide
- 27 -
Current Outputs


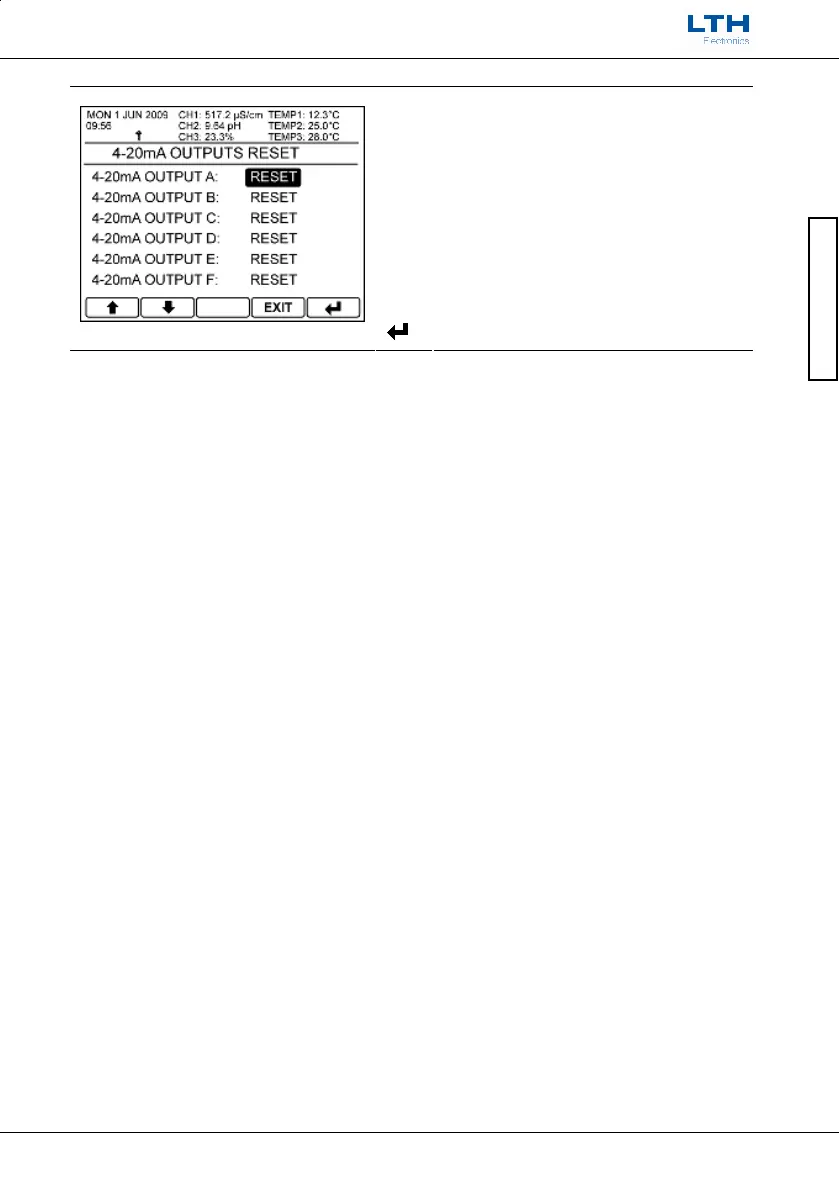

4-20mA Outputs Reset
Select the required 4-20mA Output to Reset its user
calibration back to factory settings.
/ – Select Option
EXIT
– Return to Reset User Calibration
– Enter Option
