Setpoints

MXD70 Setpoints, Current Outputs,
and Digital Inputs Configuration Guide
- 7 -

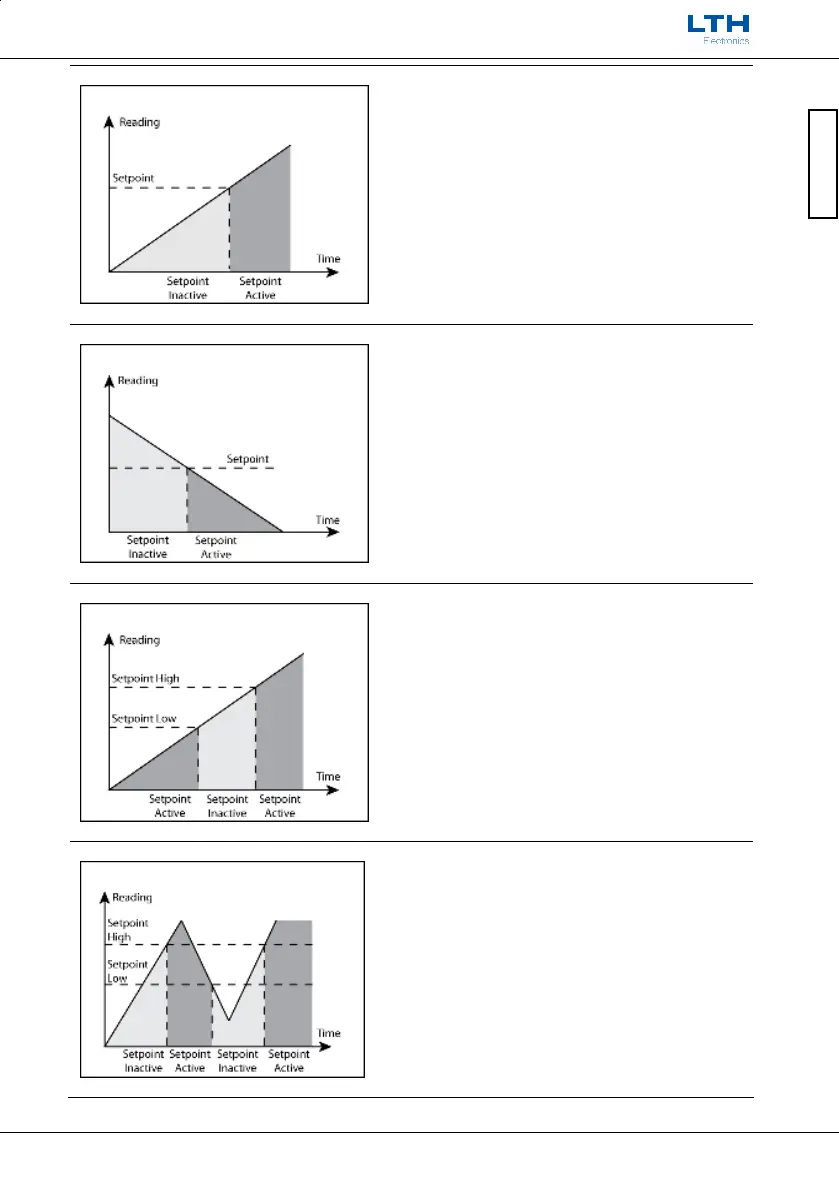

Setpoints
High
The setpoint will activate when the associated Sensor
Input Channel’s input becomes greater than the
setpoint level.
Low
The setpoint will activate when the associated Sensor
Input Channel’s input becomes less than the setpoint
level.
Band
The setpoint will activate when the associated Sensor
Input Channel’s input is either greater than the
setpoint high level or less than the setpoint low level.
Latch Hi
The setpoint will activate when the associated Sensor
Input Channel’s input is greater than the setpoint
high level and will remain active until the input falls
below the setpoint low level. It will then remain
inactive until the input level rises above the setpoint
high level.
