GB Operating manual – multifunction measuring meter XA1000 / XP200 / XP400 • 08_2015 34

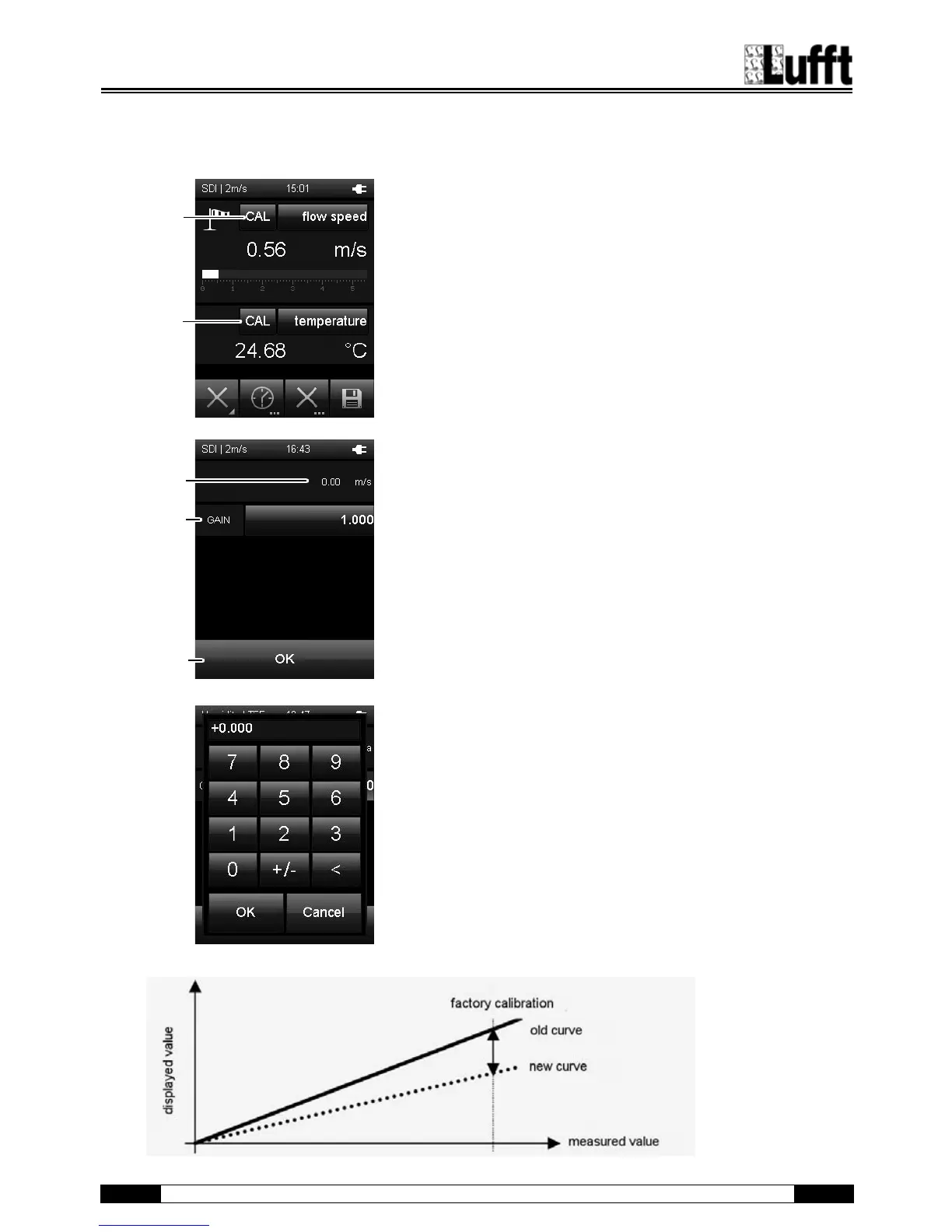

Calibration SDI sensor flow speed and temperature (XA1000, XP400 only)
Note:
All values are stored in the sensor and are retained
even if the device is exchanged.
149 Opens the calibration menu for the flow speed (see fig. B.).
150 Opens the calibration menu for the flow speed.
An offset can be entered here (see fig. C.).
Please observe the limit values.
151 Current measured value indication
152 Gain:
Use this button to enter a multiplying factor. The measured
values are adjusted according to the following formula:
y = x * gain
where y is the indicated and x the measured value.
153 Returns to the "Measuring mode" screen.
D.
Offset input for relative humidity
