STEP 6: CONNECTING THE POWER SUPPLY (UPPER BACK
PANEL)

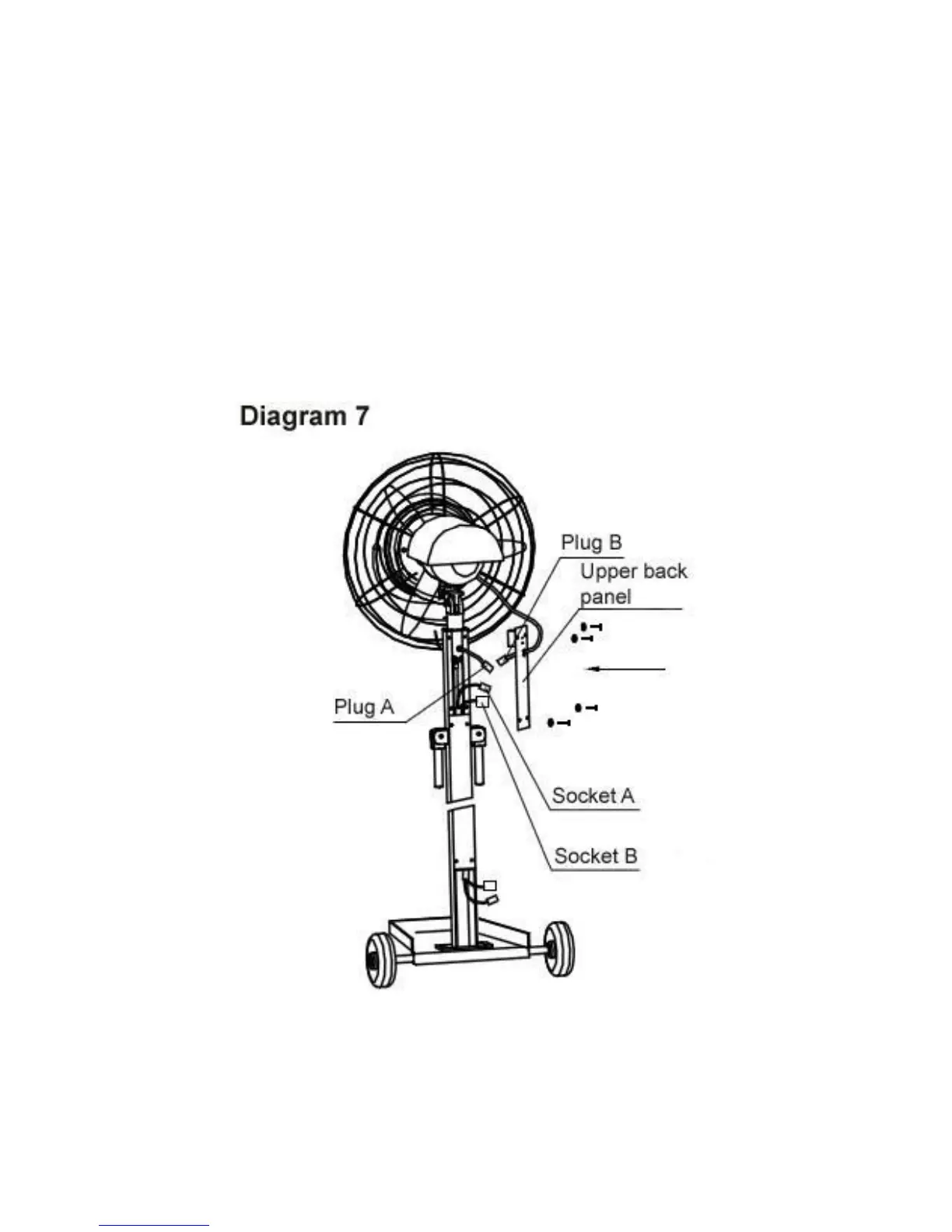

a. Refer to diagram 7. Remove the upper back panel from the top of the stand
pole by unscrewing the 4 M5 screws holding it in place.
b. Insert plug A into socket A and make sure the connection is secure.
c. Insert plug B into socket B and make sure the connection is secure.
d. Push all of the wires back into the stand pole and reattach the upper back
panel onto the stand pole using the 4 M5 screws removed in step a.
