Luma MF26B - Locking and Unlocking Handles

14
www.LumaComfort.com
STEP 9: LOCKING/UNLOCKING THE HANDLES
This misting fan is equipped with handles for convenient transport. The
handles will be in the locked position when first assembled. Follow these steps
to unlock and lock the handles.

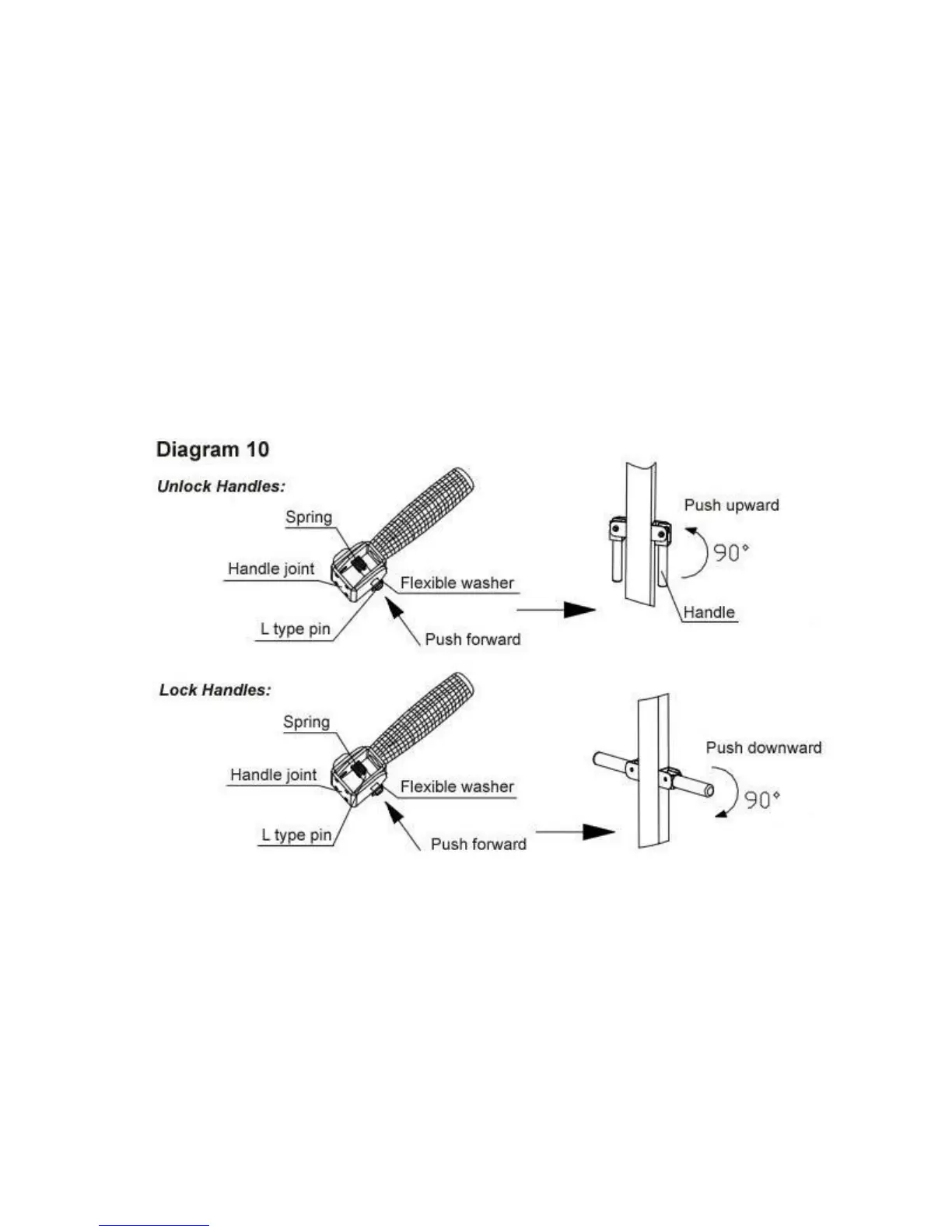

a. Refer to diagram 10. To unlock the handles, push the L type pin on the
handle joint. While pushing in the L type pin, simultaneously push the
handle up.
b. To lock the handles, push in the L type pin on the handle joint and
simultaneously push the handle down to the lock position.
