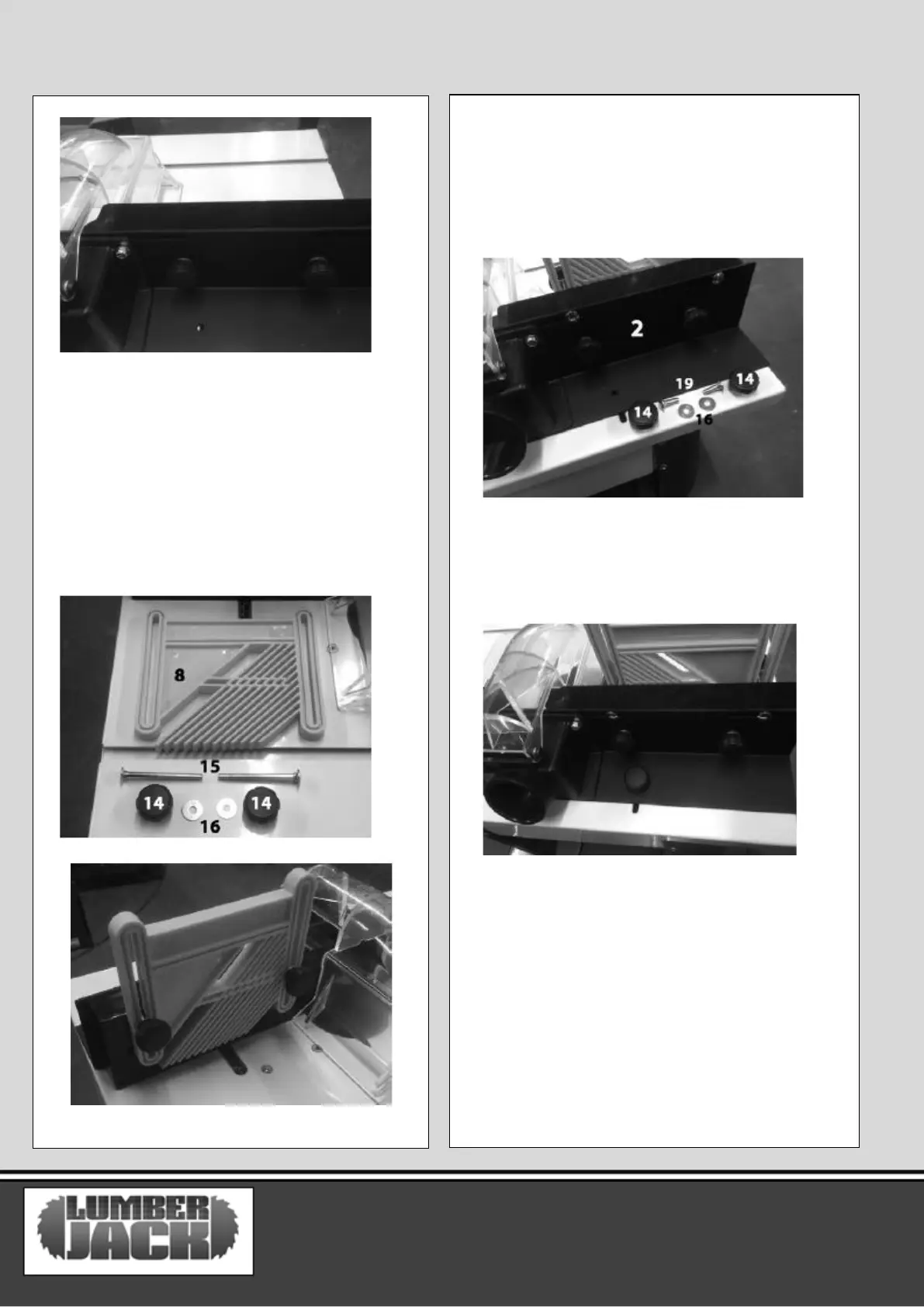

– Attach the feather‐boards to each side using
2 x feather‐board screws (15), 2 x knob nuts
(14) and 2 x large washers (16).
Be aware that the feather‐boards (8) attach
to the back guide fence (2) through the slotted
holes in the fence base (9) and the circular
holes in the back support (12). Also the knob
nuts (14) are used at the front of the feather‐
boards (8).
– The above is needed on both sides of the back
support
– Attach the built back fence guide (2) to the
table top using 2 x back guide fence screws
(19), 2 x large washers (16) and 2 x knob nuts
(14).
be aware that the screws must be inserted
through the slotted hole on the table from
underneath so that the knob nuts (14) can be
used from the top.
