Press “ ” to enter into edit mode, prompt for first digit. (Flashing digit
indicates cursor position).
Press the “ ” and “ ” keys to scroll the value of the first digit. Press the
“ ” key to advance to next digit.
Similarly, enter second and third digits of address. After entering third digit,
pressing “ ” key confirms the selection and shows “Address Setting”
screen (see Section 3.2.2.1).

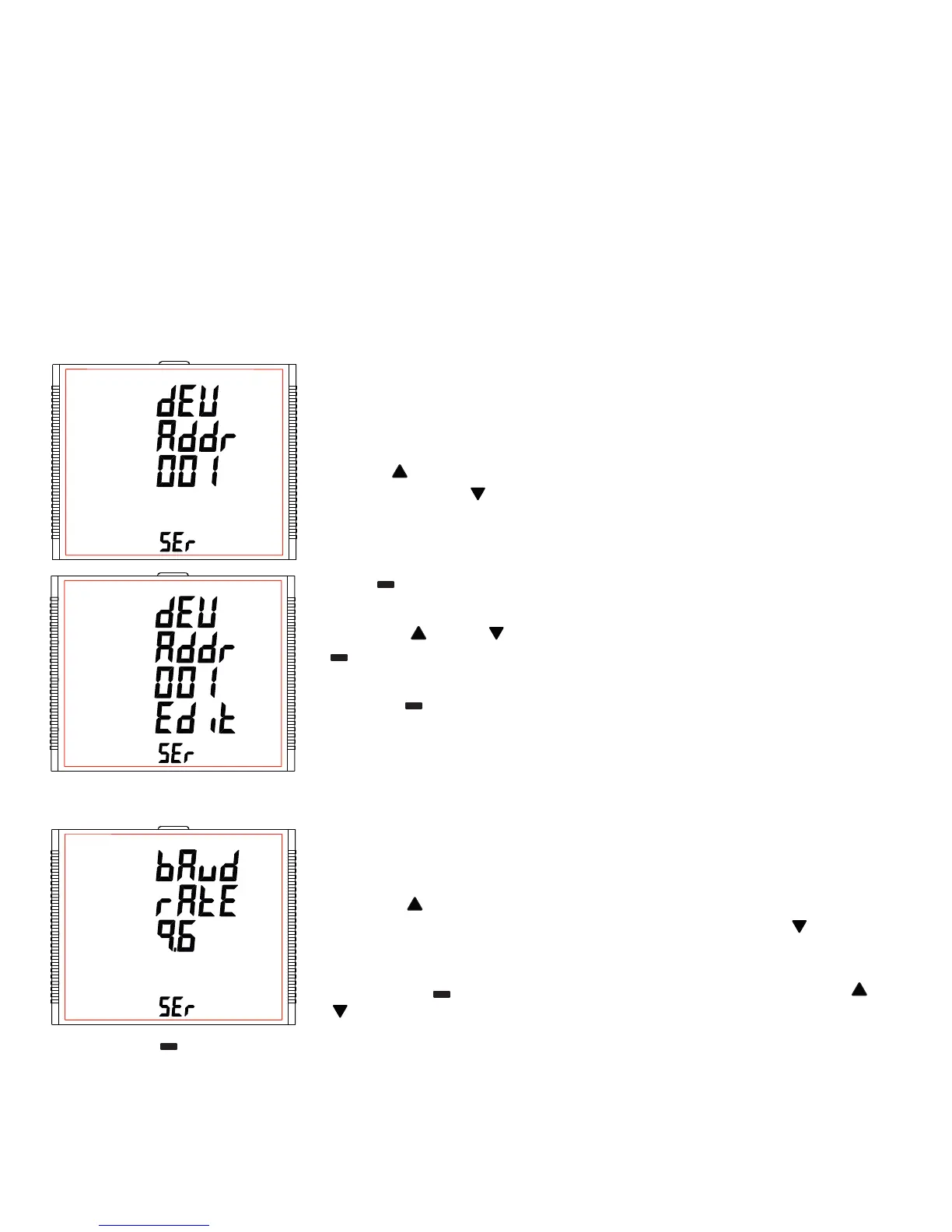

2.1 Address Setting
This screen applies to the RS 485 output only. This screen allows the user
to set RS 485 address for the meter.
The allowable range of addresses is 1 to 247.
Press “ ” key to advance to “RS 485 Baud Rate” screen (see Section
2.2) or press the “ ” key to advance to the “Quit Communication
Parameters” screen (see Section 2.4).
2. Communication Parameter Selection Screen
2.2 RS 485 Baud Rate
k
This screen allows the user to set Baud Rate of RS 485 port. The values
displayed on screen are in kbaud.
Pressing “ ” key accepts the present value and advance to the “RS 485
Parity Selection” screen (see Section 2.3) and pressing the “ ” key
accepts the present value and advance to the “Address Setting”
screen(see Section 2.1).
Pressing the “ ” key advances to the “Baud Rate Edit” mode and “ ” &
“ ” keys scrolls the value through 4.8, 9.6, 19.2, 38.4 and 57.6 kbaud.
Pressing the “ ” key sets the value and shows the “RS 485 Baud Rate” screen (see Section 2.2).
While using USB port communication the Configuration must be :
Device address: 001 Baud rate : 57600
Parity : None Stop bit: 1
3
