3

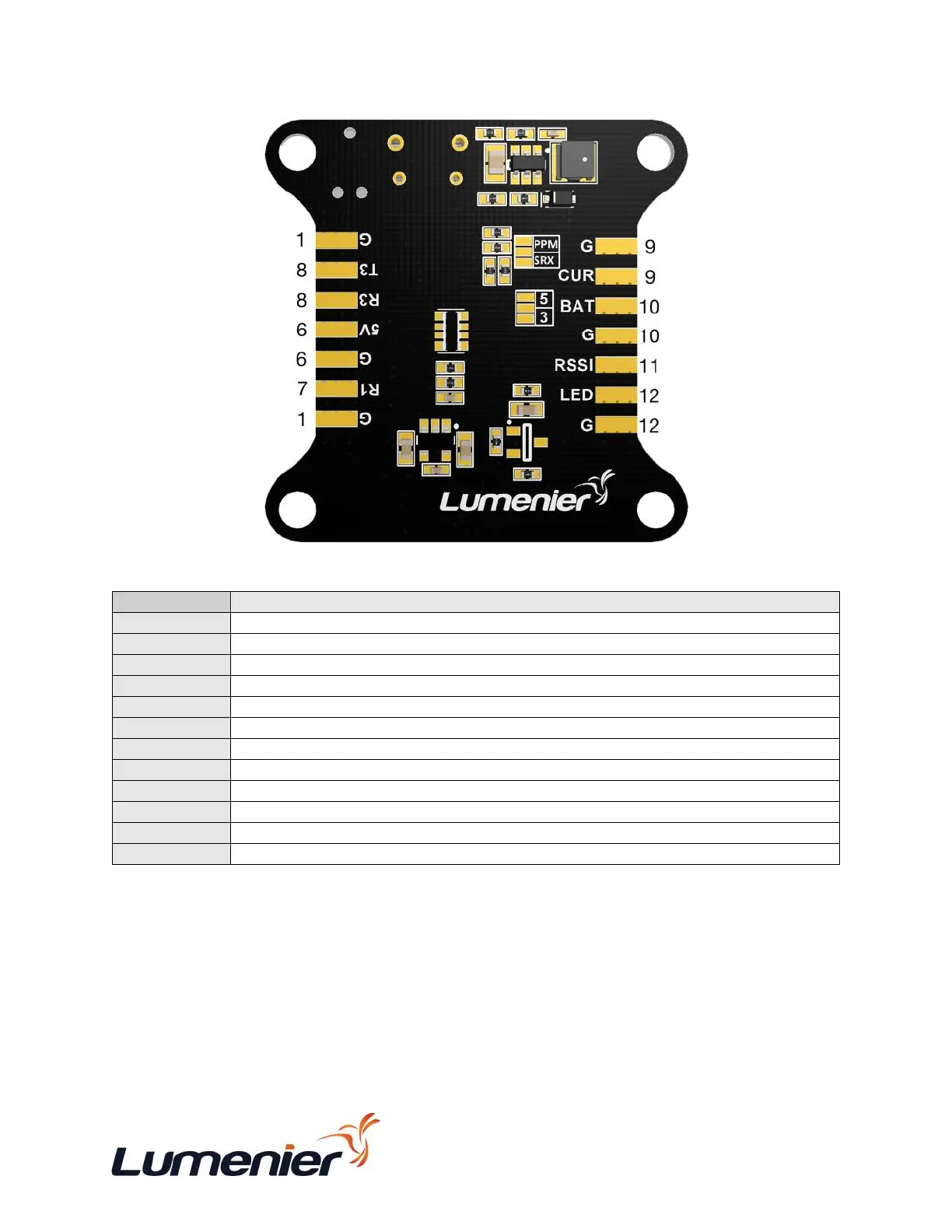

Pins
Pin
Function
1
Ground
2
Motor Signal wire(PWM)
Output
3
PPM Input (PPM / 3.3
-
5V / GND)
4
Buzzer (+ /
-
)
5
USART 2 TX/RX
6
5V / GND
7
USART 1 TX/RX
8
USART 3 TX/RX
9
CURRENT SENSOR SIGNAL / GND
10
BATTERY RAW INPUT / GND
11
RSSI INPUT
12
LED OUTPUT / GND

The accelerometer and gyroscope need to initialize every time the board is given power.
• Do not disturb the
LUX
board or your quad while powering on.
• Do not disturb the
LUX
board or your quad while plugging in.
• Wait until the initialization sequence is completed. When the activity LEDs settle, you
can move the quad/board.
