Lumenier LUX - Getting Started; Board Layout; Pins

2
GETTING STARTED

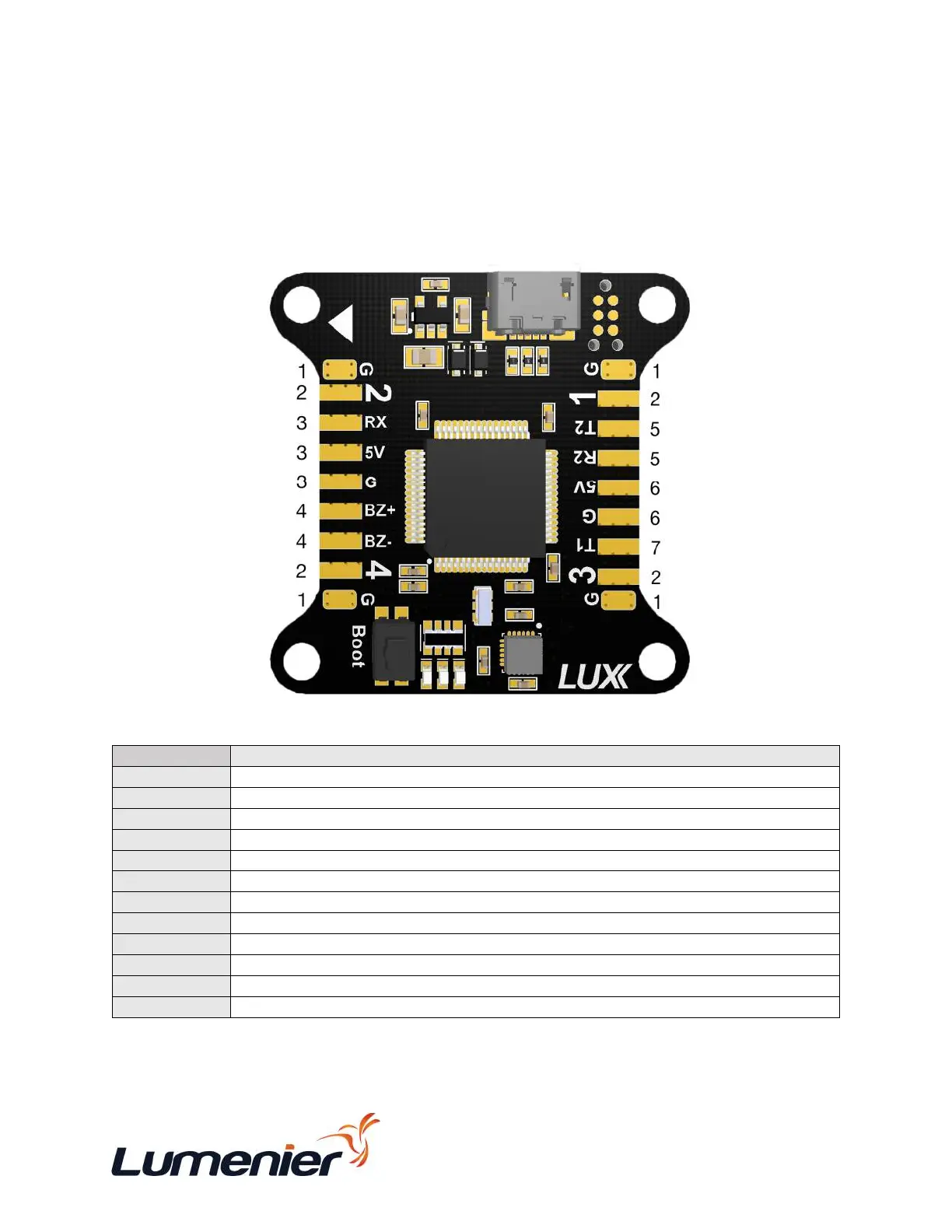

Board Layout
Pins
Pin
Function
1
Ground
2
Motor Signal wire(PWM) Output
3
PPM Input
(PPM / 3.3
-
5V / GND)
4
Buzzer (+ /
-
)
5
USART 2 TX/RX
6
5V / GND
7
USART 1 TX/RX
8
USART 3 TX/RX
9
CURRENT SENSOR SIGNAL / GND
10
BATTERY RAW INPUT / GND
11
RSSI INPUT
12
LED OUTPUT / GND
