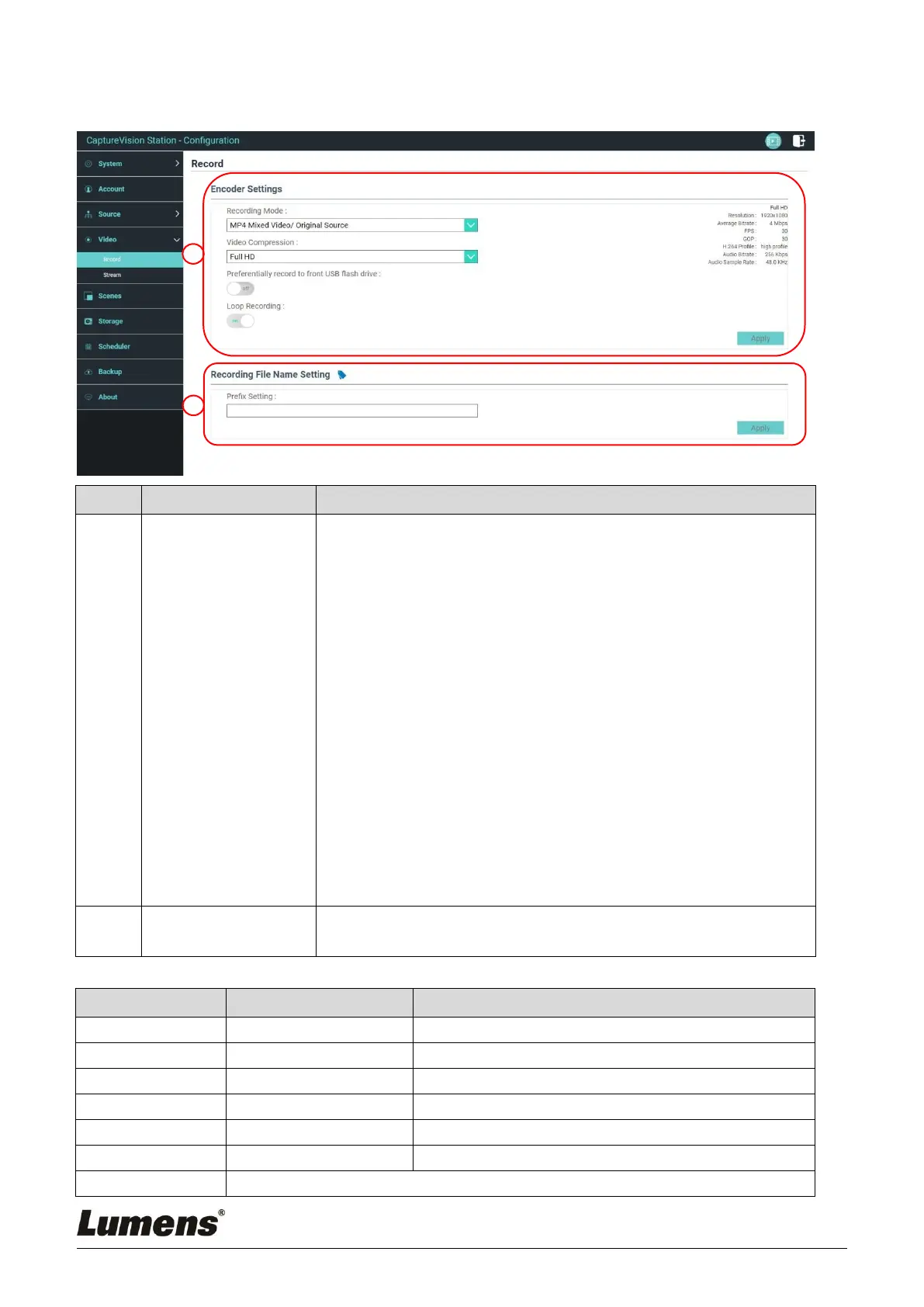

5.2.4 Video Settings
5.2.4.1 Record Settings
No
Item
Function Descriptions
1
Encoder Settings
 Recording Mode: You can select Movie Mode (MP4) and
Movie/Resource Mode (MP4)
 Movie Mode: Only record the single PGM 4-channel composite
screen
 Resource Mode: Can record the single PGM 4-channel
composite screen and 4 signal source screens
 Encode Profile: 6 default encoding formats are available to be
selected by resolutions and average bitrate (Please refer to the
instructions of Encode Profile). You can also set user-defined
image quality.
 Preferentially record to front USB hard drive: Videos or pictures
will be preferentially recorded to the USB flash drive which has
already been connected to the front USB port.
 Cycling Record: Enabling the cycle record function can prevent
recording error when storage device is full
2
Video File Name
Setting
Customizes the prefix name of video file
 Instruction on Encode Profile
Name
Video Resolution/ABR
Description
Full HD
1080p / 4 Mbps
Dynamic scene; Large film site; Local drive recording
Internet Full HD
1080p / 3 Mbps
General scene, Medium film site, Local drive recording
HD
720p / 2 Mbps
Static scene, Small film site, Local drive recording
Internet HD
720p / 1.5 Mbps
LAN director
SD
480p / 800 kbps
Static scene, LAN director
Mobile network SD
480p / 500 kbps
Director via mobile device
User-Defined
Click [ ] to open Custom (as shown in the following figure). Once done, click “Save”.
1
2
