Chapter 3 Product Overview

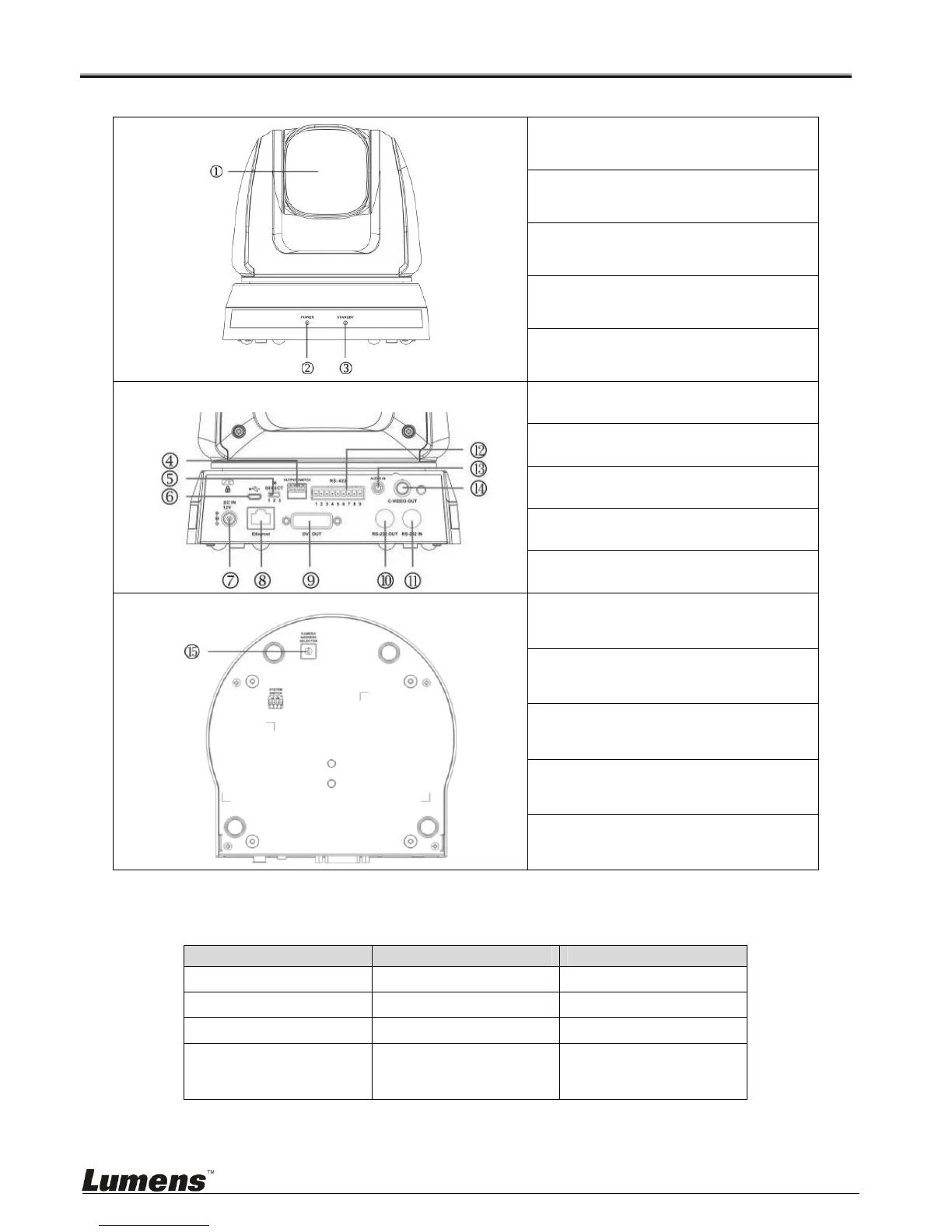

3.1 Overview
1. Camera lens
2. Power LED indicator
3. Standby LED indicator
4. OUTPUT Switch
5. IR SELECT
6. USB port (for FW update)
7. Power input
8. Ethernet port
9. DVI output
10. RS-232 output
11. RS-232 input
12. RS-422 Connection
13. Audio In
14. C-VIDEO output
15. Camera Address Selectors
3.2 Description of LED indicator
Status Power Srandby
Startup in progress Green light
Orange light
In use Green light No indicator
In standby mode No indicator
Orange light
Signal from the remote
control is received
Green light flickers;
it flickers every 0.5
second
No indicator
Front View
Back View
Bottom
