Chapter 8 DIP switch setting
<Note> Please turn off the machine before changing DIP switch setting.

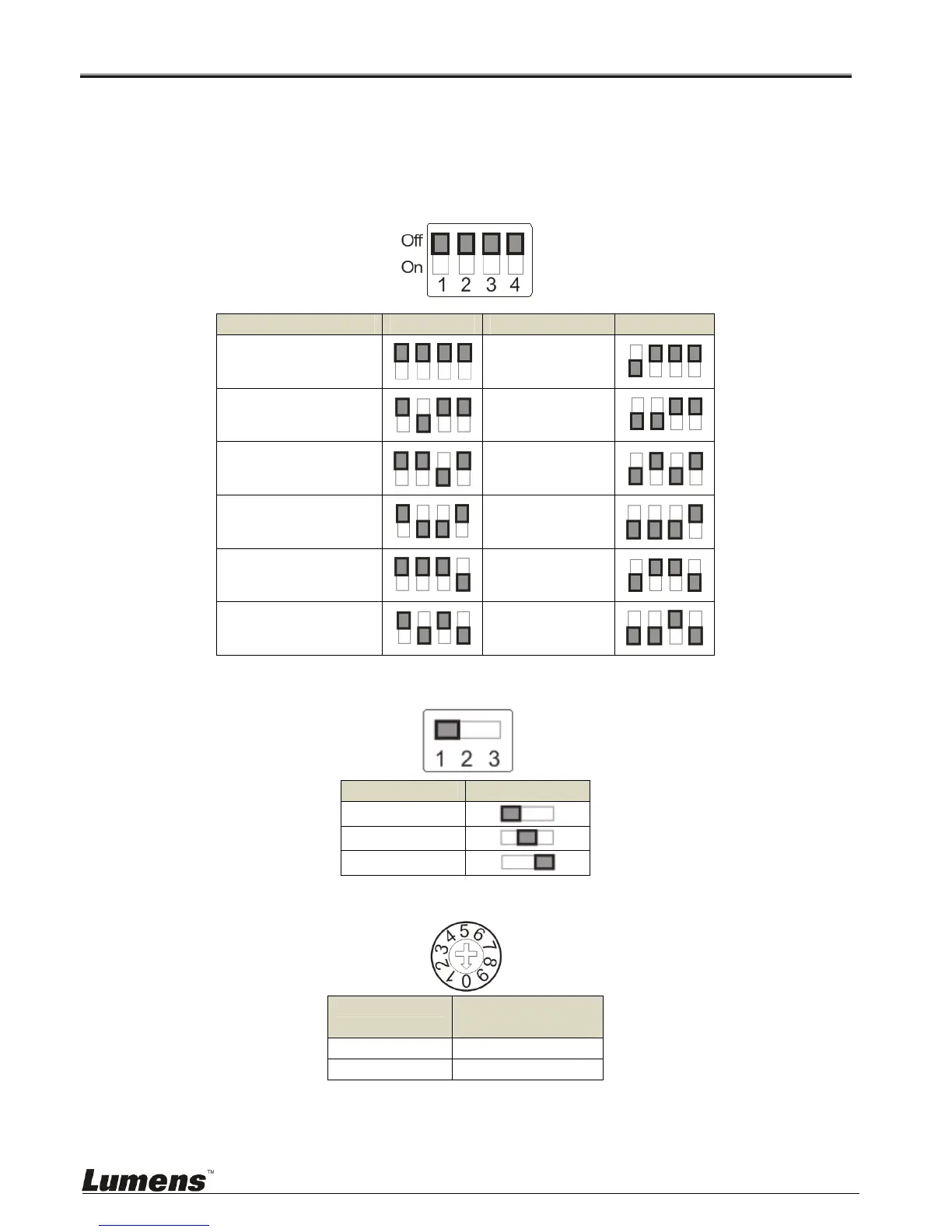

8.1 DIP SWITCH
8.1.1 OUTPUT Switch
Output Mode Setting Output Mode Setting
1920x1080/60p 1920x1080/50p
1920x1080/30p 1920x1080/25p
1920x1080/60i 1920x1080/50i
1280x720/60p 1280x720/50p
1080/59.94p 1080/59.94i
1080/29.97p 720/59.94p
8.1.2 IR SELECT
ID Setting
1
2
3
8.1.3 Camera Address Selector
Setting Function
Descriptions
0~7 ID 0~7
8~9 Reserved
