Lutron Electronics Co., Inc.
7200 Suter Road
Coopersburg, PA 18036-1299
Symptoms Probable cause and action
Light does not turn on or dimmer/switch LEDs do not light up. • Light bulb(s) burned out.
• Breaker is OFF or tripped.
• Light not properly installed.
• Wiring error.
• FASS switch on the dimmer is in the Off position.
Light does not respond to Pico remote. • The dimmer failed to pair with Pico remote; see Pairing the dimmer and Pico paddle remotes
• The dimmer is already at the light level the Pico remote is sending.
• The Pico remote is outside the 30 ft (9 m) operating range.
• The Pico remote battery is low.
• The Pico remote battery is installed incorrectly.
Troubleshooting
Device Ratings
Pico paddle remote
PJ2-P2B
3 V- 10 mA
(1) CR2032 battery (included)
CAUTION
Use only with permanently installed lighting loads or with general purpose fan loads.
!
CAUTION: Risk of Fire, Explosion, Leakage, and Burns. Do Not Recharge, Disassemble,
Heat Above 212 °F (100 °C) or Incinerate. This product contains a lithium button/coin cell
battery. Keep batteries away from children. If a new or used lithium button/coin cell battery
is swallowed or enters the body, it can cause severe internal burns and can lead to death
in as little as 2 hours. Always completely secure the battery compartment. If the battery
compartment does not close securely, stop using the product, remove the batteries, and
keep the batteries away from children. If you think batteries might have been swallowed or
placed inside any part of the body, seek immediate medical attention. The battery in this
device contains Perchlorate Material — special handling may apply. For more information, visit
www.dtsc.ca.gov/hazardouswaste/perchlorate
Codes
Install in accordance with all national and local electrical codes.
Grounding
When no “grounding means” exist in wallbox, the National Electrical Code (NECR) allows
a control to be installed as a replacement if 1) a nonmetallic, noncombustible faceplate
is used with nonmetallic attachment screws or 2) the circuit is protected by a ground
fault circuit interrupter (GFCI). When installing a control according to these methods, cap
or remove green wire before screwing control into wallbox.
FCC / IC Information
This device complies with part 15 of the FCC Rules and Industry Canada license-
exempt RSS standard(s). Operation is subject to the following two conditions: (1) This
device may not cause interference, and (2) this device must accept any interference,
including interference that may cause undesired operation. Modifications not expressly
approved by Lutron Electronics Co., Inc. could void the user’s authority to operate this
equipment.
Note: This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
—Reorient or relocate the receiving antenna.
— Increase the separation between the equipment
and receiver.
— Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
— Consult the dealer or an experienced radio/TV technician for help.
x3
Hold for 6 seconds until
light bar starts blinking

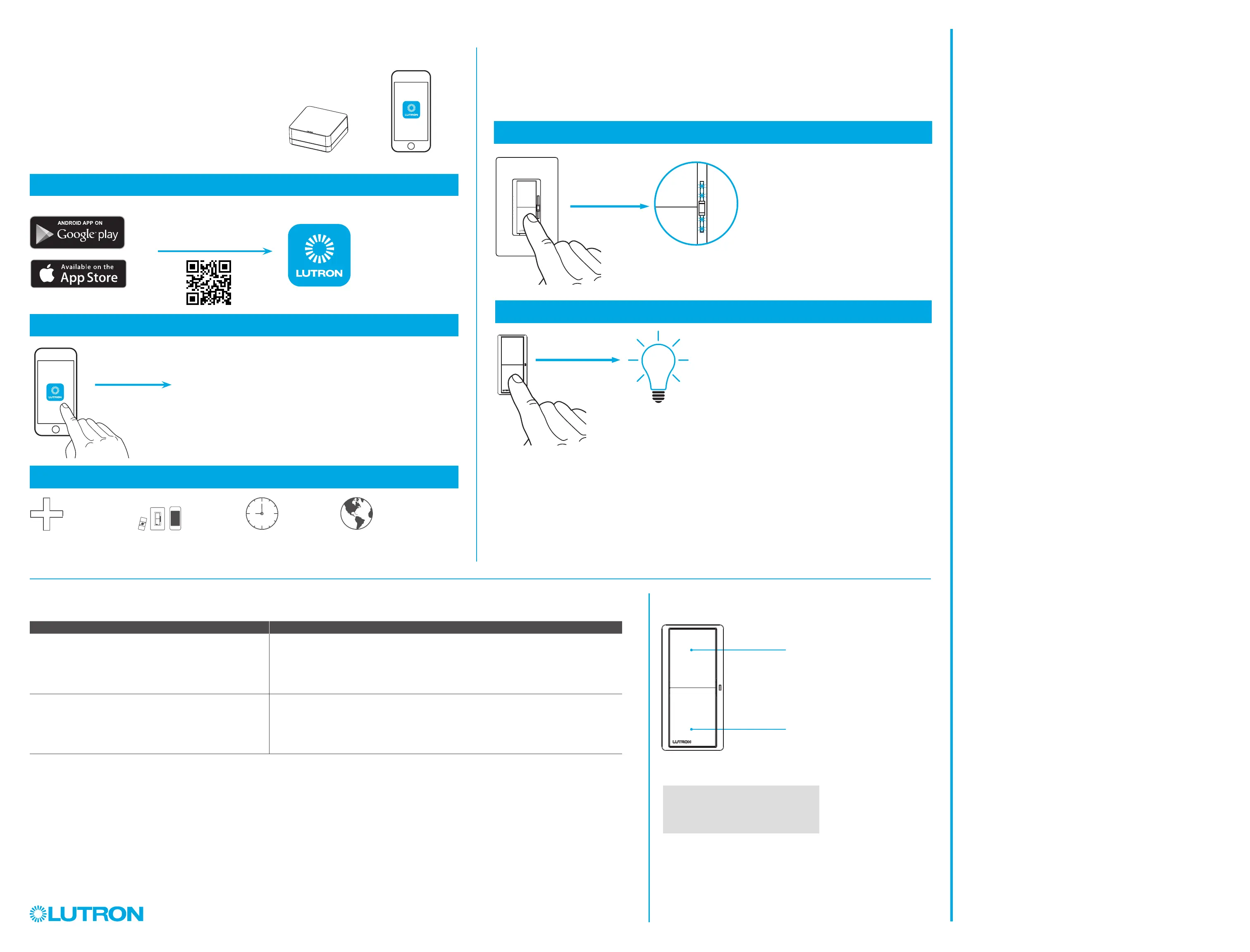

To Use your Caséta by Lutron System*
1
Press and hold “off” button on dimmer
2
Press and hold “off” button on the Pico paddle remote
Pairing the dimmer and Pico paddle remotes
For advanced features, tips for using Caséta dimmers with LEDs and CFLs, the complete Caséta product line, and more,
please visit www.casetawireless.com/features
Hold for 6 seconds until
lights flash 3 times
Option 1: With a smartphone or tablet (smart hub required, sold separately)
3
Use the Lutron app to complete ALL remaining steps
The Pico paddle remote can be controlled from a smartphone when used
with the Lutron smart hub (formerly smart bridge) and the Lutron app.
If you are using the Pico paddle remote with the Lutron smart hub follow
the instructions below.
Lutron Smart Hub
Lutron app
Option 2: Without a smartphone or tablet (smart hub not required)
Control
three ways
Add devices
• Pico remotes
• Dimmers
• Shades
Schedule
your lights
Connect
while away
1 Press and hold “off” button on dimmer
2
Press and hold “off” button on remote
The Lutron app will walk you through setting
up your devices.
Download the Lutron app
Launch the Lutron app
Search for “Lutron Caséta”
Repeat steps to pair other Pico paddle remotes
)Lutron, Lutron, Claro, Caséta, Pico, Diva, the design of the Diva dimmer, RadioRA, HomeWorks, Serena, Sivoia and
FASS are trademarks or registered trademarks of Lutron Electronics Co., Inc. in the US and/or other countries.
All other product names, logos, and brands are property of their respective owners.
© 2023 Lutron Electronics Co., Inc.
Using your Pico paddle remote
Pico paddle remote
When paired with Diva Smart dimmer:
If off, lights to preset
If on, lights to full
On
Off
* To communicate with other systems or devices, including RadioRA, HomeWorks QSX, Serena Shades, and Sivoia QS, refer to those specific
system resources.
Important notes:
1. For indoor use only.
2. Operate between 32 ˚F (0 ˚C) and 104 ˚F (40 ˚C).
