Lutron Electronics LRF2-OCR2B-P-WH User Manual

Ceiling
®
SPECIFICATION SUBMITTAL Page
Job Name:
Job Number:
Model Numbers:
Radio Powr SavrTM Wireless Occupancy/Vacancy Sensor
369480g 5 10.31.14

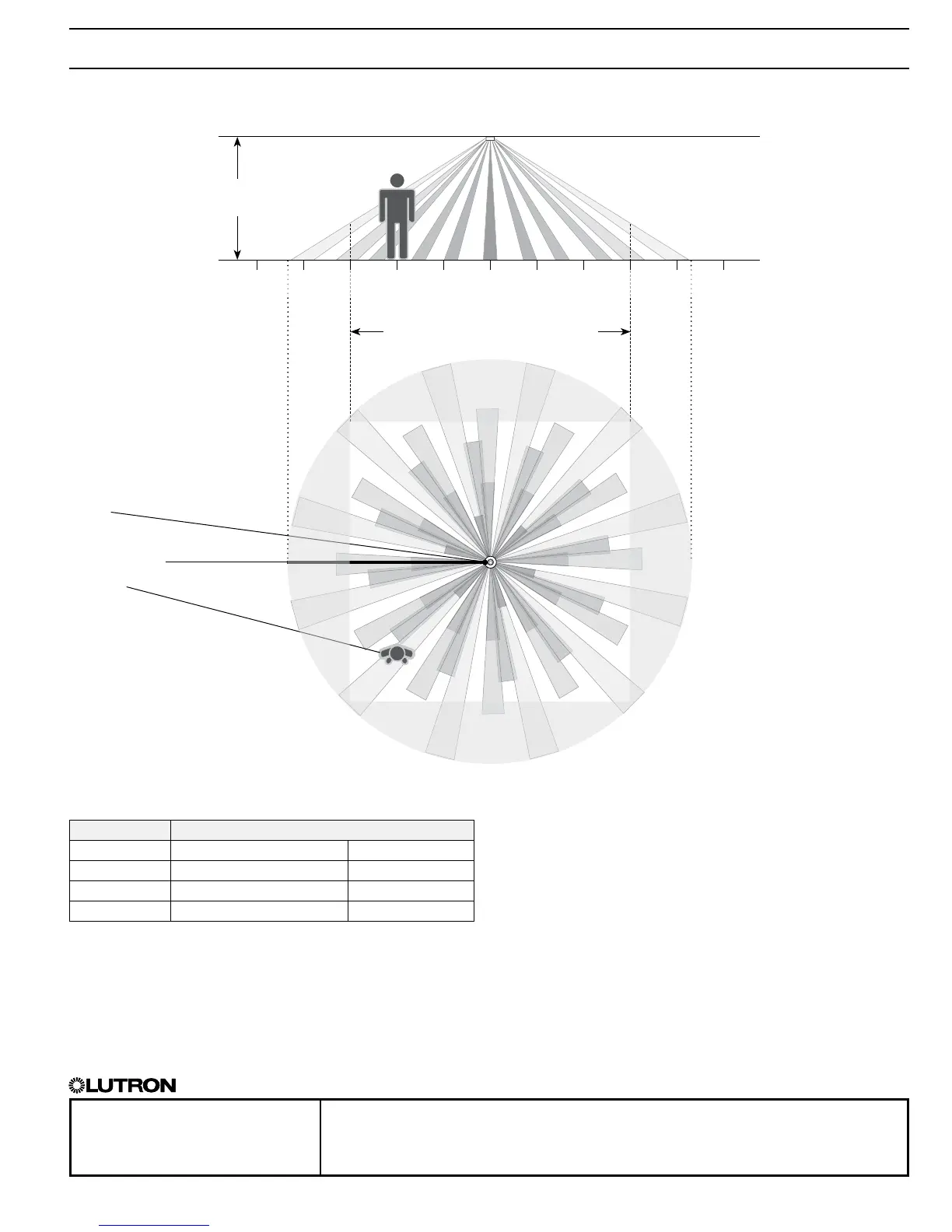

Range Diagrams
Sensor Coverage Chart (for sensor mounted in center of room)
Ceiling Height Maximum Square Coverage Area*
8 ft (2.4 m) 18 ft × 18 ft (5.5 m × 5.5 m) 324 ft
2
(30.2 m
2
)
9 ft (2.7 m) 20 ft × 20 ft (6.1 m × 6.1 m) 400 ft
2
(37. 2 m
2
)
10 ft (3.0 m) 22 ft × 22 ft (6.7 m × 6.7 m) 484 ft
2
(44.9 m
2
)
12 ft (3.7 m) 26 ft × 26 ft (7.9 m × 7.9 m) 676 ft
2
(62.4 m
2
)
* 12 ft (3.7 m) is the recommended maximum mounting height
18 ft × 18 ft (5.5 m × 5.5 m) maximum
square coverage area when mounted
on an 8 ft (2.4 m) ceiling
Ceiling
Floor
8 ft
(2.4 m)
Sensor
13 ft (4.0 m) radius of coverage
at floor when mounted on an
8 ft (2.4 m) ceiling
Occupant
15 ft
(4.6 m)
12 ft
(3.7 m)
9 ft
(2.7 m)
6 ft
(1.8 m)
3 ft
(0.9 m)
0 3 ft
(0.9 m)
6 ft
(1.8 m)
9 ft
(2.7 m)
12 ft
(3.7 m)
15 ft
(4.6 m)
