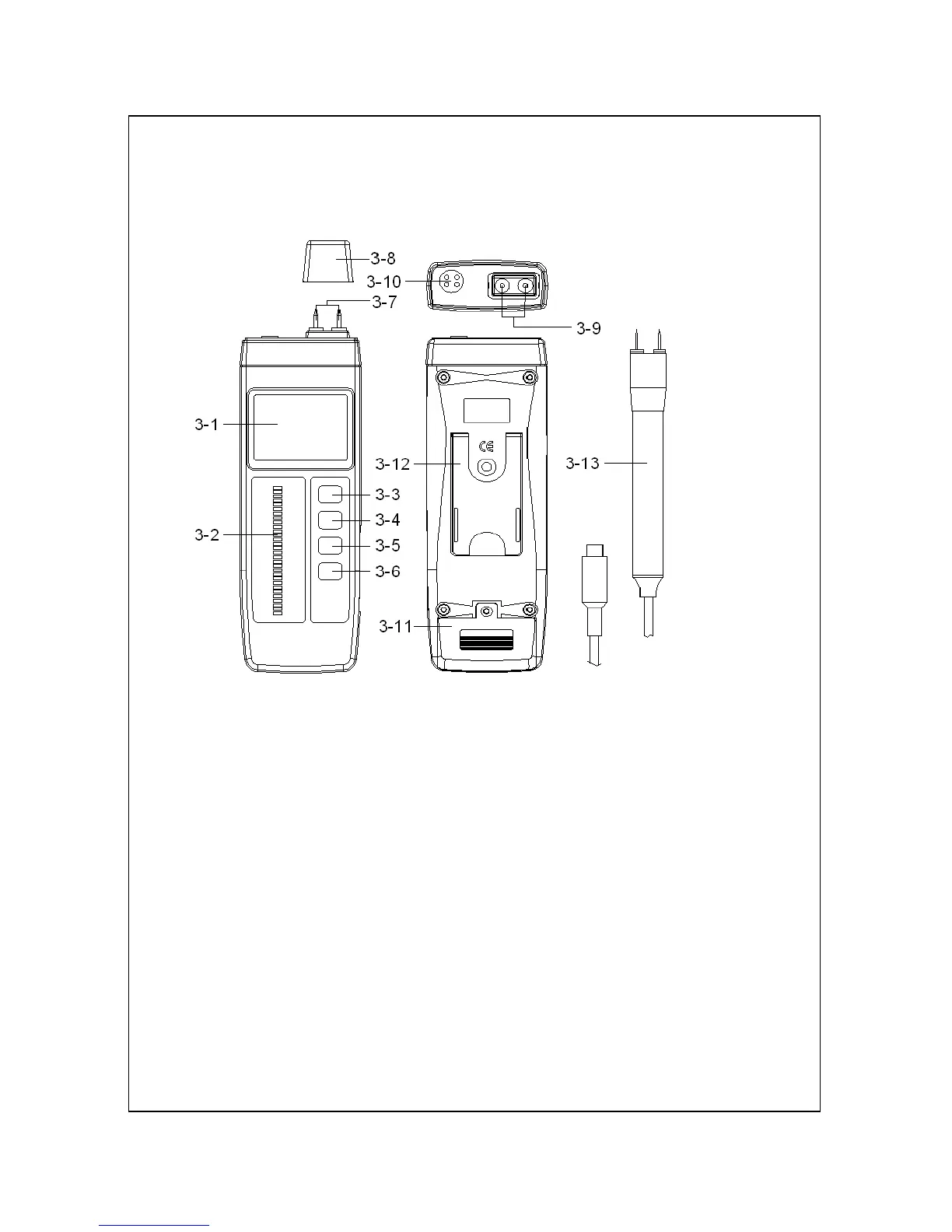

3. FRONT PANEL DESCRIPTION
Fig. 1
3-1 Display
3-2 Red LED bar graph indicator
3-3 Power button
3-4 Hold button
3-5 REC ( MAX/MIN ) button
3-6 Material button
3-7 Test pins
3-8 Protection cover
3-9 Lock nut for test pin
3-10 Input socket for external probe
3-11 Battery compartment/Cover
3-12 Stand
3-13 Optional separate probe
