Lutron Electronics PALLADIOM - Stage Activation Control Diagrams

32
P/N 032498h
Appendix A (continued)
3. Control Diagrams For Turning On / Off Different Heat and Cool Stages
The control diagrams below graphically represent the on / off deltas for different heating and cooling stages.
Table 19: Default Values for Heat and Cool Stages
Heat & Cool Stage
Advanced
Parameter
Default
Value
H1N: Heat Stage 1 on Delta (74A) 1
H1F: Heat Stage 1 Off Delta (75A) 1
H2N: Heat Stage 2 On Delta
1
(76A) 2
H2F: Heat Stage 2 Off Delta
1
(77A ) 2
C1N: Cool Stage 1 On Delta (80A) 1
C1F: Cool Stage 1 Off Delta (81A) 1
C2N: Cool Stage 2 On Delta
1
(82A) 2
C2F: Cool Stage 2 Off Delta
1
(83A) 0

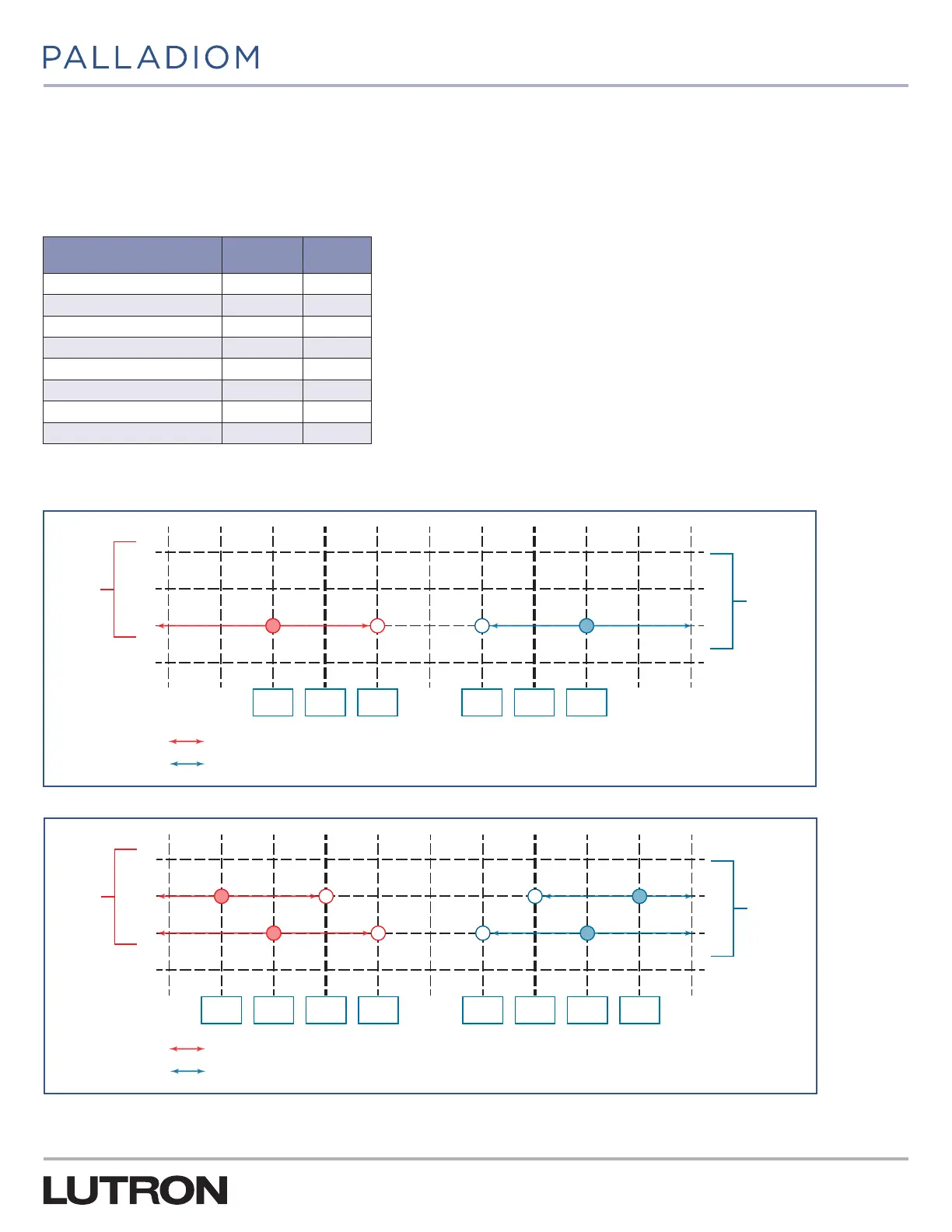

Control Diagram 1: Conventional or Heat Pump 1-Stage Heat, 1-Stage Cool
Control Diagram 2: Heat Pump 2-Stage Heat, 2-Stage cool (No Auxiliary)
1
Continued on next page...
Heat
Stages
(Fan On)
On
1
Cool
Stages
(Fan On)
1
Off
Off
On
HSP-H1N HSP HSP+H1F CSP-C1F CSP CSP+C1N
Heating
Cooling
Heat
Stages
(Fan On)
On
1
Cool
Stages
(Fan On)
1
Off
Off
On
HSP-H1N HSP HSP+H1F CSP-C1F CSP CSP+C1N
Heating
Cooling
On Off Off
On
2
2
HSP-H2N CSP+C2N
1
Included with SMC55-HWQS version 7420 or newer, SMC55-RESI version 7302 or newer and HomeWorks Palladiom Thermostat version 1.10 or newer.
