Names and Functions

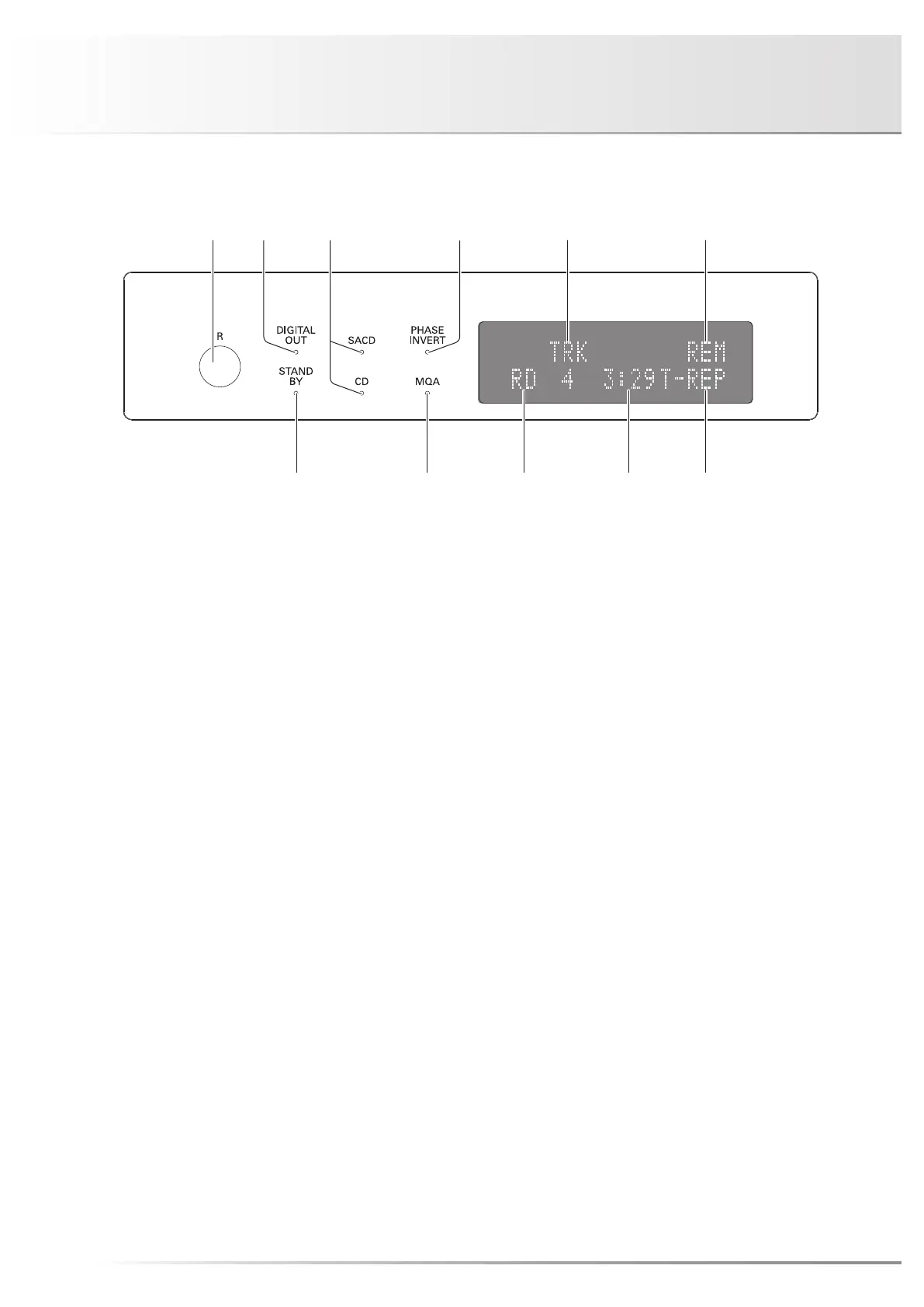

1. Remote control infrared receiver (R)
Receives the infrared signals from the remote control.
2. Digital output indicator (DIGITAL OUT)
Lights up when the digital audio output is ON.
This indicator does not light up when playing back the HD
layer of Super Audio CD because the digital audio signal
cannot be output.
3. Super Audio CD/CD indicator
(SACD/CD)
SACD indicator lights up when playing back the HD (or
SACD) layer of Hybrid Super Audio CD
CD indicator lights up when playing back the CD layer of
Hybrid Super Audio CD.
4. Phase invert indicator (PHASE INVERT)
Lights up when the analog output phase is inverted, which
is caused by pressing the phase invert selector.
[Off (Phase Normal)]
1. GROUND
2. COLD (–)
3. HOT (+)
[On (Phase Inverted)]
1. GROUND
2. HOT (+)
3. COLD (–)
5. Track number (TRK)
“TRK” is displayed above, and the track number is dis-
played below during playback.
6. Time display mode
The display shows different playback time modes. “REM” is
displayed indicating the remaining time of the current track.
“T-REM” is displayed indicating the total remaining time of
disc. This display area does not light up when showing the
elapsed time of a track.
7. Standby indicator (STANDBY)
Lights up when this unit is in the standby state.
8. MQA indicator (MQA)
Lights up while an MQA-CD, an MQA file or stream is being
played back
[Off]
It is not an MQA source
[Green Light]
It is indicating that the unit is decoding and playing an
MQA stream or file and denotes provenance to en-
sure that the sound is identical to that of the source
material.
[Blue Light]
It is indicating the unit is playing an MQA Studio file,
which has either been approved in the studio by the
artist/producer or has been verified by the copyright
owner.
[Magenta Light]
It confirms that the product is receiving an MQA
stream or file. This delivers the final unfold of the MQA
file and displays the original sample rate.
