4.2 Pneumatic connections

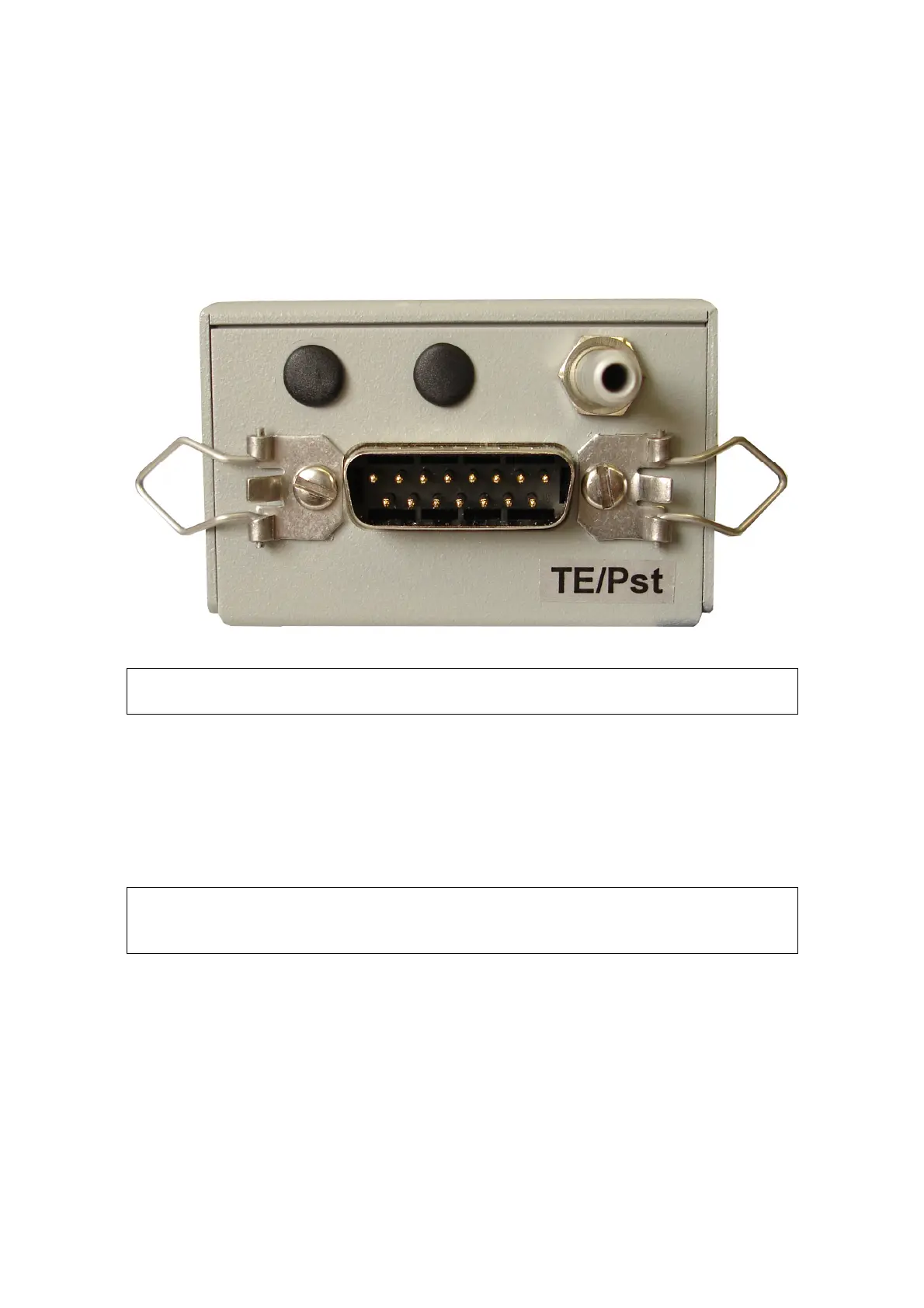

There is one pressure inlet on the rear side of the unit:
• TE/Pst - TE tube or Static Pressure inlet
Note!
If there is only static pressure on the inlet, there will be no total energy compensation!
4.3 Electrical connections
The electrical connections are clearly marked (red + 12V, blue GND) and the pre-
assembled cables make it very easy to connect all the components. The unit has no
ON/OFF switch, use avionic master switch or install a separate switch.
Note!
There is no internal fuse in the LX 16-D and you must install an external fuse with a
rating of 1 amp (quick blow).
In the LX 16-D delivery box you will find the following cables and accessories:
main power supply cable
external rotary switch with push button
LX 16-D
the manual
speaker
