LX Navigation LX 16-D User Manual

4 Installation
4.1 Mechanical installation
LX16-D unit:

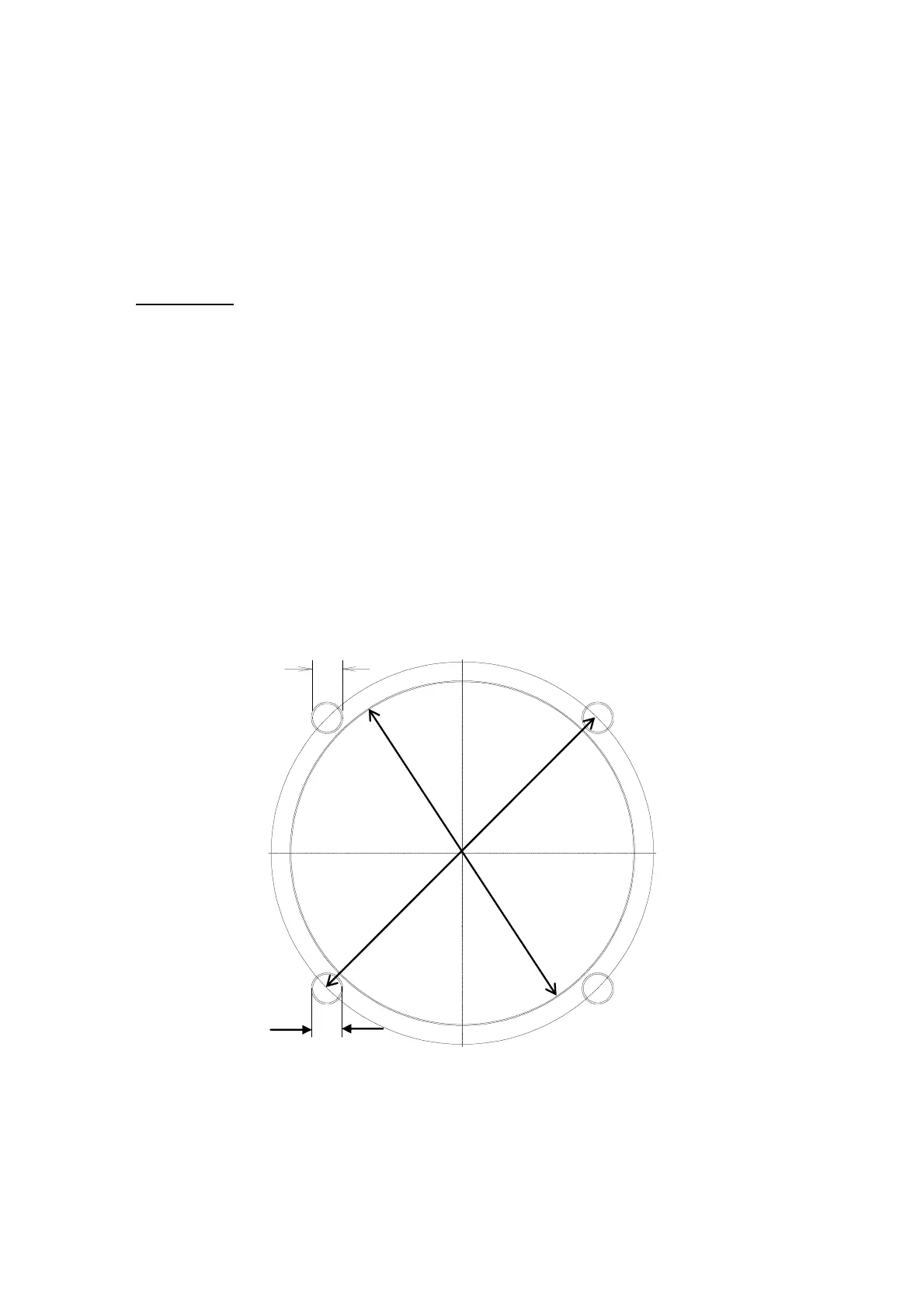

One 57mm diameter circular cut out is required but you need to allow for the overall
dimensions of the unit which are as follows:
65mm width
65mm height
115mm length with connectors
The unit is attached by four M4 screws; the positioning of these holes is the same as any
other instrument of this size.
Installation procedure:
• Remove the four screws.
• Insert LX 16-D into the cut out and fix it using the four screws.
2 1/4 “
φ
φφ
φ
57mmh11
φ
φφ
φ
66.0mm
4
,5
mm
4,5mm
