LYCOMING OPERATOR’S MANUAL SECTION 5
IO-320 SERIES MAINTENANCE PROCEDURES

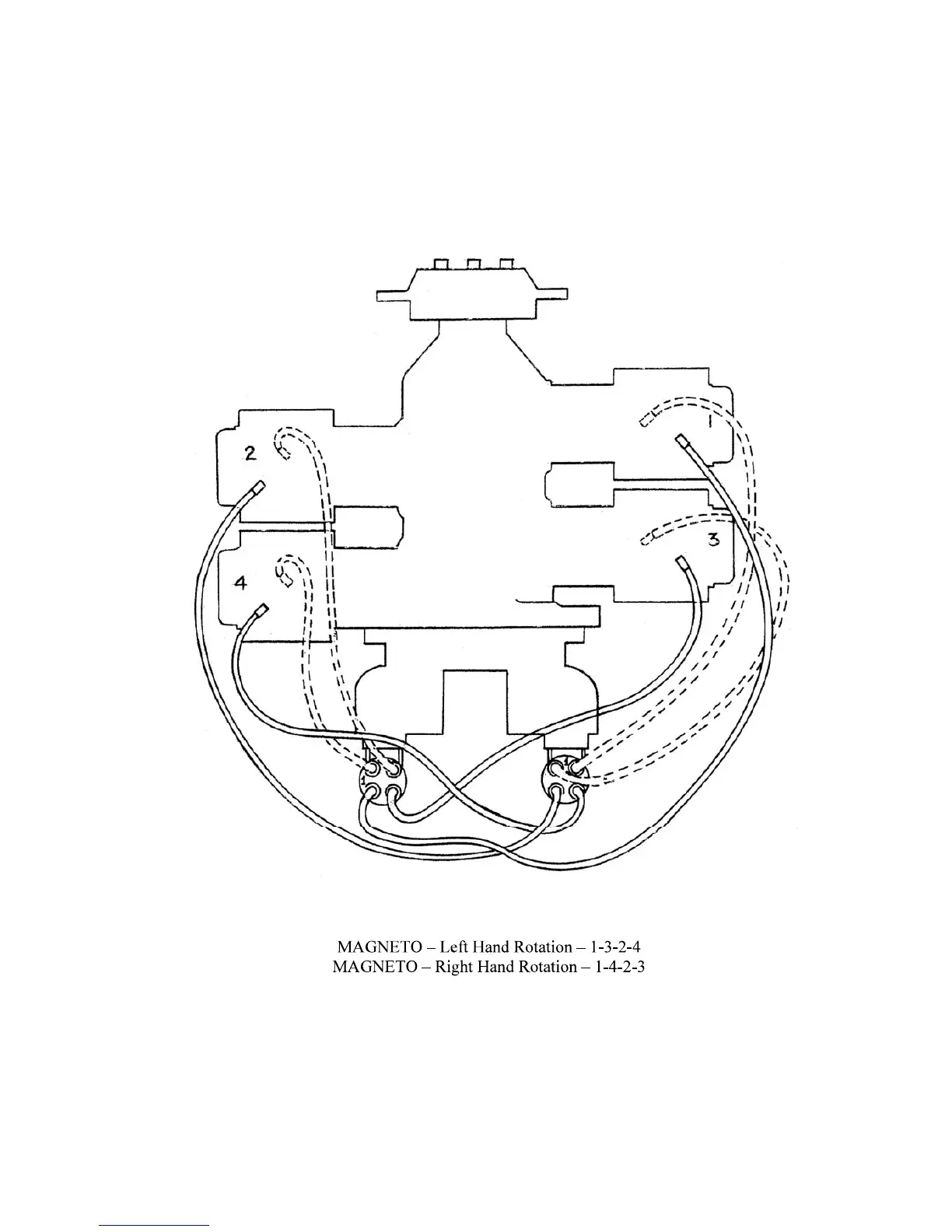

FIRING ORDER
Figure 5-2. Ignition Wiring Diagram (Optional)
5-3
