TUNE YOUR RIDE
fmo2015-003-009_d

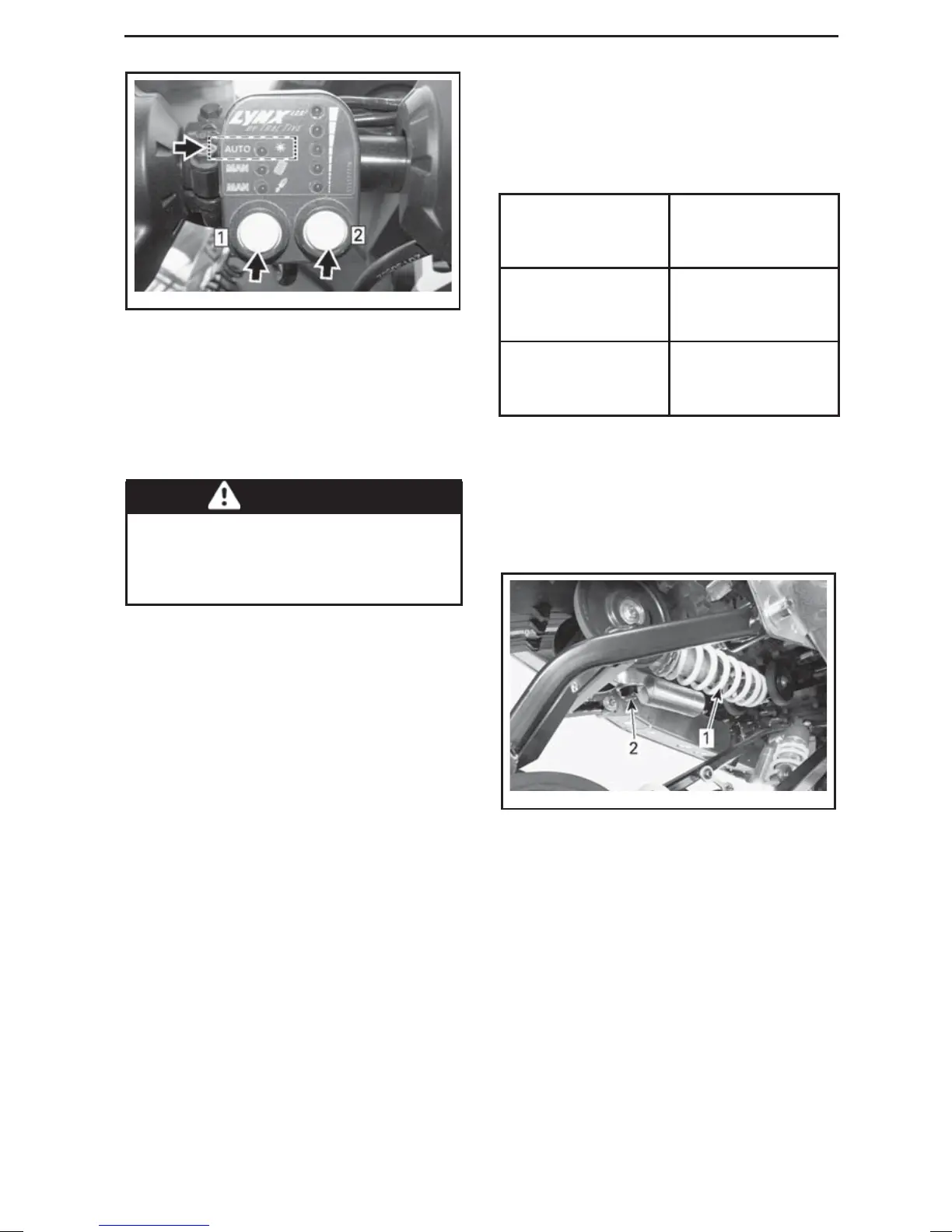

To use preselected values push the left
button till AUTO led lights up. Push the
right knob to set the preselected spring
preload and dam ping force. Upwards
is more spring preload/damping force
and down is less spring preload/damp-
ing force.
WARNING
When adjusting ECS², be sure to
maintain situational awareness of
other snowmobiles, obstacles or
persons .
NOTE: When the LEDs are flashing
the s ystem is calibrating itself. No a c-
tions are needed in this case. Keep
vehicle running as long the leds flash-
ing stops .
NOTE: When one of the LED’s starts
blinking the controller is reporting an
error code. Contact an authorized Lynx
dealer and report which LED is blink-
ing.
Rear and Center Shock Absorber
Rear Shock Compression Damping
NOTE: Both low a nd high speed com-
pression damping are adjusted sepa-
retely.
Low speed compression damping con-
trols how the shock absorber reacts to
a low suspension velocity (slow com-
pression strokes, in most cases when
riding at lower speeds).
High speed compression damping
controls how the shock absorber re-
acts to a high suspension velocity
(quick compression strokes, in most
cases when riding at higher speeds).
ACTION
RESULT ON BIG
AND SMALL
BUMPS
Increasing
compression
damping force
Firmer
compression
damping
Decreasing
compression
damping force
Softer
compression
damping
To adjust, turn the adjuster button lo-
cated on the oil reservoir on shock
clockw ise to increase c ompression
damping force and counterclockwise
to decrease compression damping
force.
fmo2012-003-025_a
1. Rear shock absorber
2. Compression damping adjuster (button)
Front Suspension
Adjustments
Skis
It is possible to s et the ski to three dif-
ferent position.
Standard positio n for Ski is that Ski run-
ner is installed on center holes.
(1)
The KYB Pr
o S eries is a registered mark of KYB America LLC.
______________
101
