CONTROLS/INSTRUMENTS/EQUIPMENT
To Engage Parking Brake
Squeeze brake lever and maintain
while pulling locking lever with a finger.
When brake lever is held at halfway the
parking brake should be fully applied.
CAUTION Parking brake posi-
tion can vary depending on brake
pads wear. Ensure when the park-
ing brake is applied that the vehicle
stays securely in place.
NOTE: Locking lever can be adjusted
in two different positions.
mmo2007-009-037_a

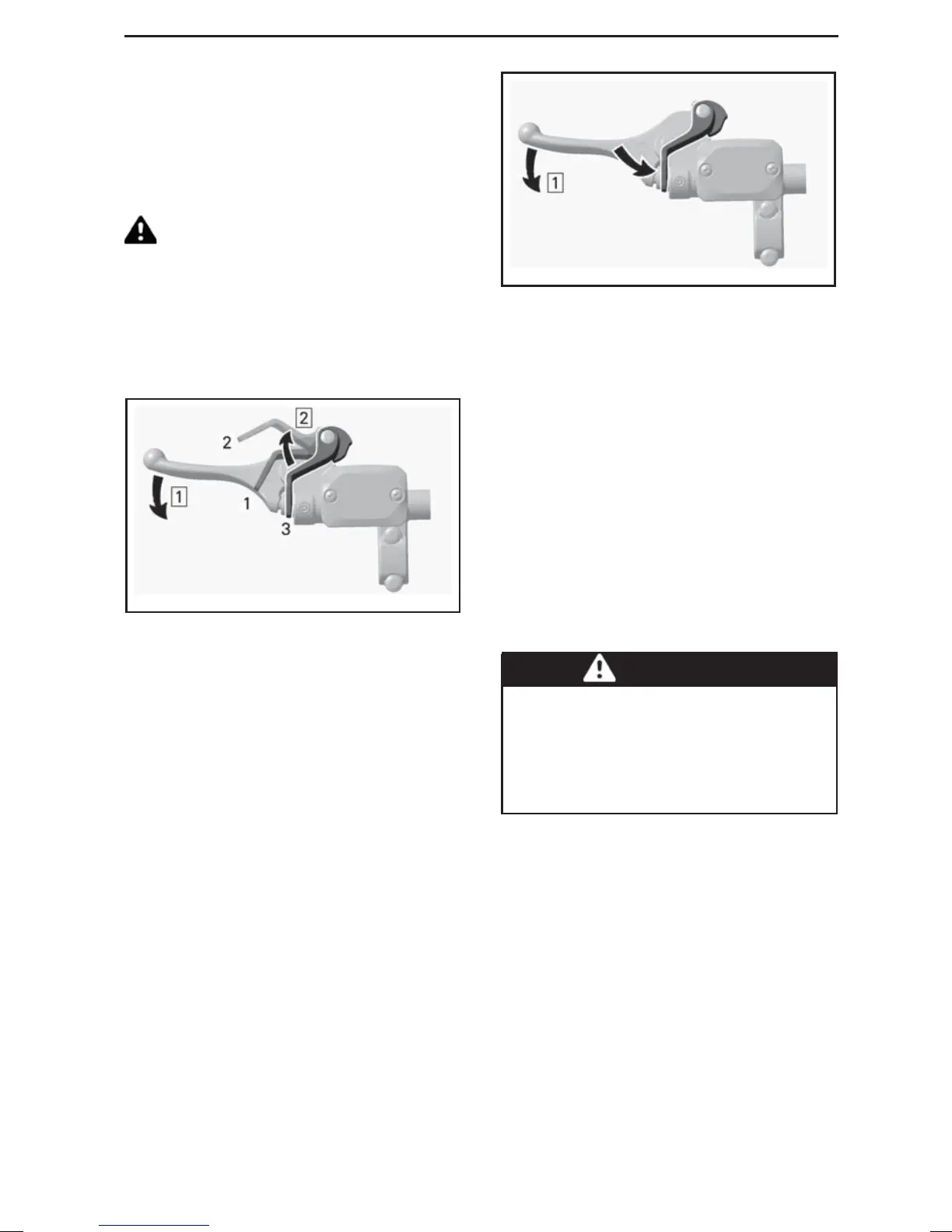

TYPICAL — ENGA GE MECHANISM
Step 1: Step 1: Squeeze and maintain brake
lever
Step 2: Step 2: Adjust locking lever
1. Position 1
2. Position 2
3. OFF
To Release MechanismParking
Brake
Squeeze brake lever. Locking lever will
automatically retu rn to its original posi-
tion. Always release parking brake be-
fore riding.
mmo2007-009-037_b
TYPICAL — RELEASE MECHANISM
Step 1: S tep 1: Squeeze brake lever
5) Engine (Tether) Cut-Out
Switch
The engine cut-off switch (tether cord)
is loc ated to on the RH s ide of console .
The tether cord cap must be securely
snapped on the engine cut-off switch
to allow vehicle operation.
General
When the tether cord cap (DESS key)
is removed, it shuts the engine off pre-
venting snowmobile to runaway if the
operator falls off the vehicle accidently.
WARNING
Always remove the tether cord cap
(DES S key) wh e n vehicle is not in
operation in order to prevent ac-
cidental engine starting, to avoid
unauthorized use by children or
others or theft.
Operation
Attach tether cord eyelet to clothing,
then snap cap (DESS key) over post
before starting engine.
