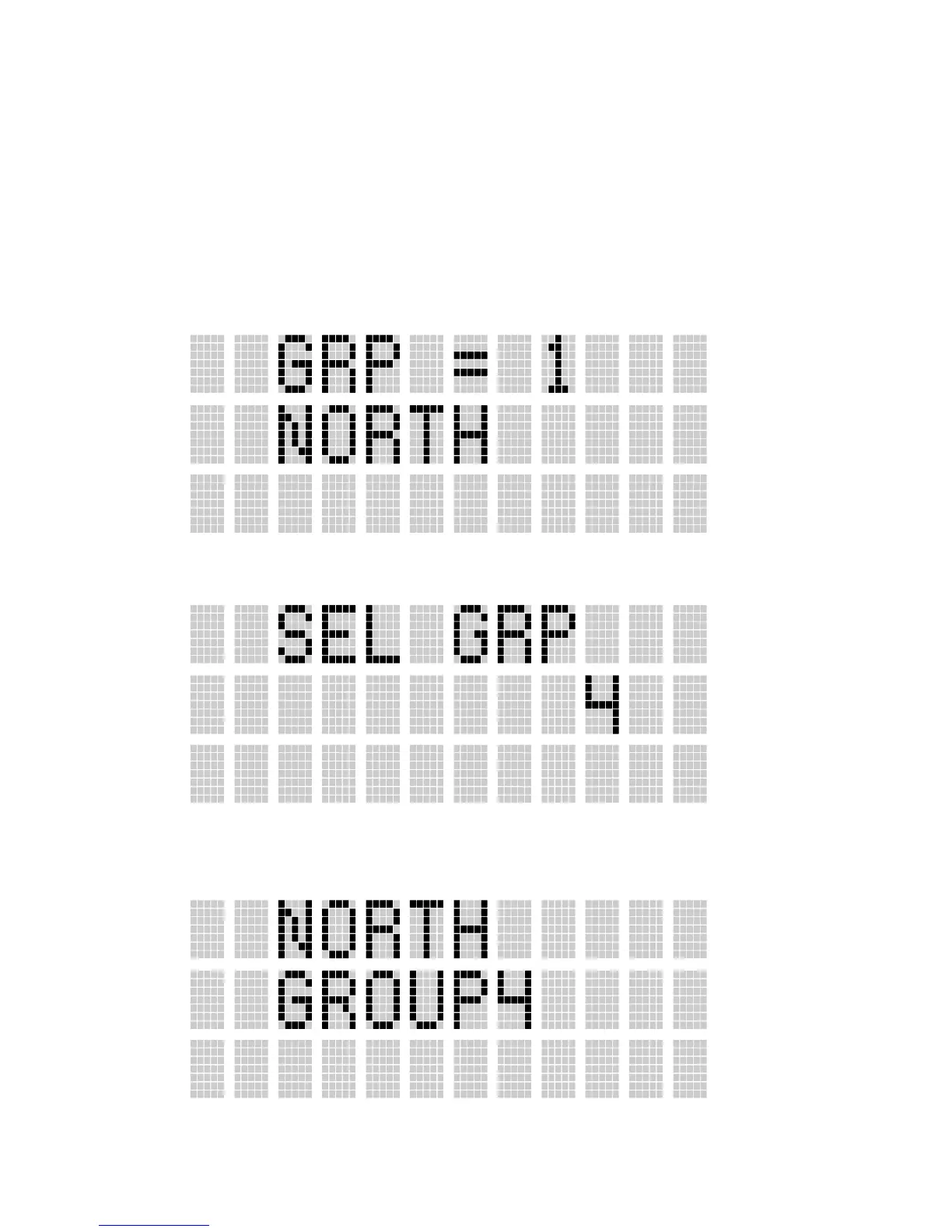

Example:

System: 1 = North Group: 1=Group 1

2 = South 2=Group 2

3 = East 3=Group 3

4 = West 4=Group 4

Press 2 (North is the currently selected group).

Press 4.

Press M.
