on recording techniques). Plug the guitar and bass into the high impedance

inputs 7 & 8 of the pre-amps.

2. Plug the outputs of the pre-amps 1-8 into the hardware inputs 1-8 of the Delta

1010. Usually pre-amp outputs are balanced, so if they are, use TRS cables

and set the Delta +4/-10 input switches to the +4dB setting.

3. Plug the hardware outputs 1-8 of the Delta 1010 into your mixer’s inputs 1-8

(using 1-8 is recommended for convenience, but not necessary). Some mixers

run at –10 line level, and some at +4. Many mixers may be set either way and

actually have their own +4/-10 switch(es). Let’s assume that our mixer runs

at +4, so set the Delta +4/-10 output switches to +4. At this point we’ll assume

that all mixer faders are down, and that the mixer is plugged into a sound

system for monitoring.

We’re now physically set up to monitor, record, and playback audio with the

Delta 1010 and related components. The next steps involve the settings in the

Delta Control Panel. We’ll use the same settings as Typical Setup #1 for the

Delta Control Panel’s ‘Hardware Settings’ page, i.e. "Internal Xtal", "Reset Rate

When Idle" and 48kHz idle sampling rate. The settings that we’ll focus on will

involve the ‘Patchbay/Router’ page. We won’t be using the Delta 1010’s

Monitor Mixer, so we’ll ignore the ‘Monitor Mixer’ page.

4. Open the Delta Control Panel software and click on the Patchbay/Router tab.

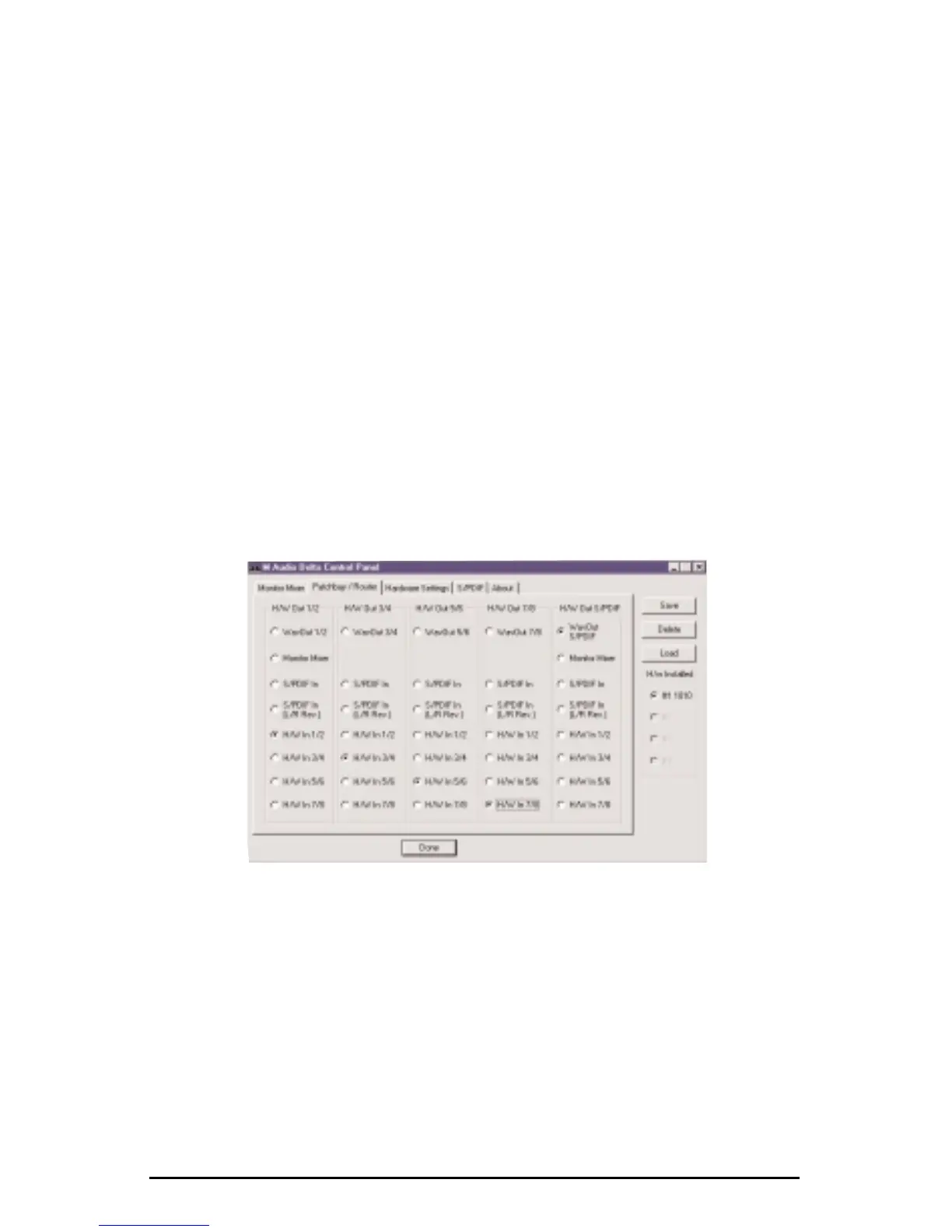

5. For the first stereo pair, H/W Out 1/2, click the radio button in that column

for "H/W In 1/2." For the second stereo pair, H/W Out 3/4, click the radio

button in that column to "H/W In 3/4." Continuing with this pattern, set the

H/W Out 5/6 column to "H/W In 5/6," and the H/W Out 7/8 column to

"H/W In 7/8." Using these settings for the Patchbay/Router page connects

each hardware input directly to a hardware outputs. These settings will allow

us to monitor the inputs to the Delta 1010 (drums, guitar, and bass) while we

are recording.

6. Minimize the Delta Control Panel to the Windows taskbar.

7. Open your music software program. Set up eight tracks for recording:
