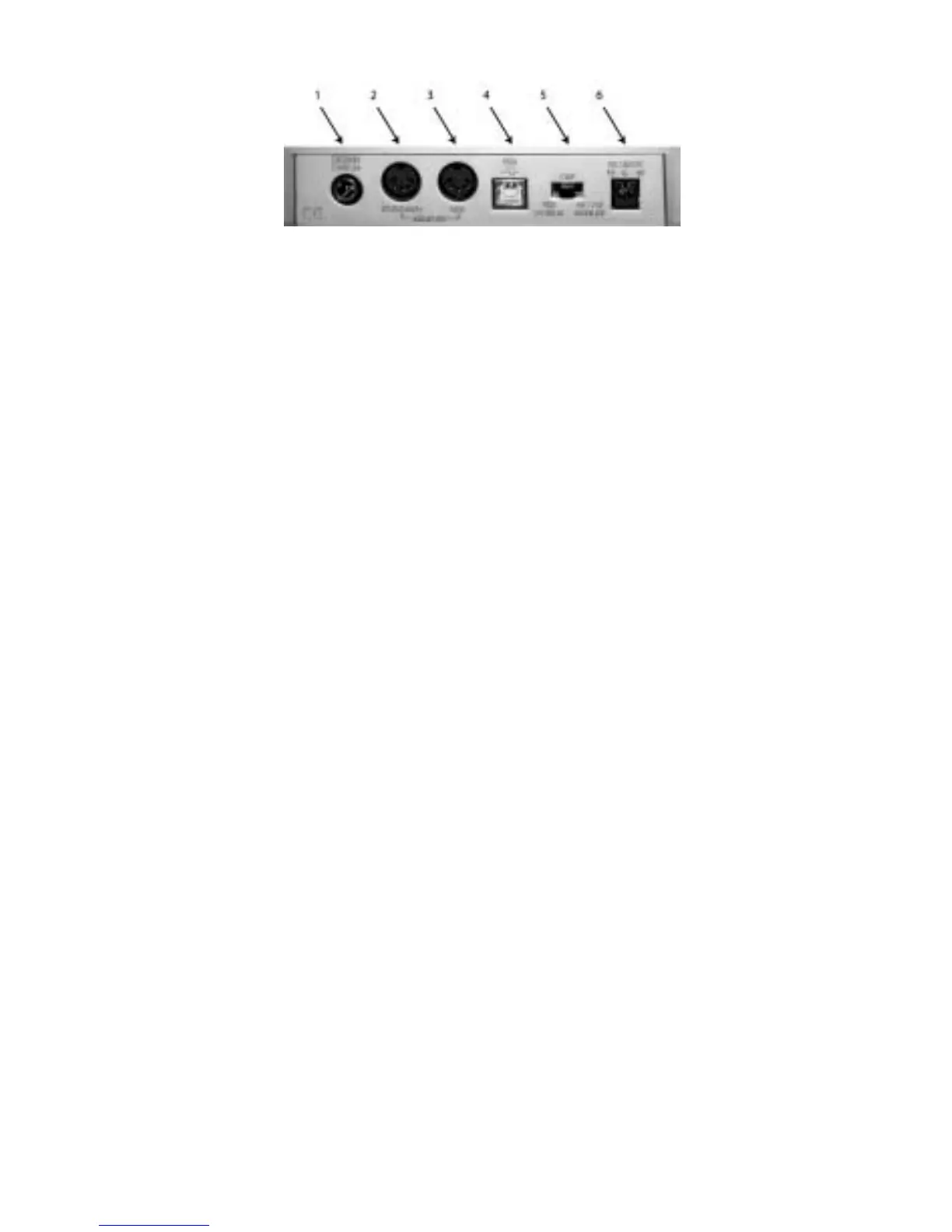

Rear Panel
1. Sustain jack:This jack allows you to connect an optional footswitch to the
keyboard.When the footswitch is depressed, notes played on the keyboard
will continuously sound as long as the footswitch is held, while MIDI
controller information is sent from the Oxygen 8.
2. MIDI Out jack,“Keyboard”:This standard MIDI jack is a direct MIDI out from
the keyboard in “standalone” mode, and is used to send MIDI messages to
another MIDI instrument (such as sound module).
3. MIDI Out jack, USB”:This standard MIDI jack receives its source from the
computer when software is set to Oxygen 8 MIDI Out,and is used to send
MIDI messages to another MIDI instrument (such as sound module).
4. USB port:This USB connector jack is used to connect the Oxygen 8 to the
computer’s USB port using a standard USB cable (included).
5. Power switch:The 3-way power switch selects the keyboard’s power mode—
powered by USB connection, external power supply/battery power, or
powered off.When set to “USB Power” the KEYSTATION receives power
only after the computer is powered on.When the KEYSTATION’s power is
turned on,the keyboard will reset to it’s default settings.
6. Power jack:This jack is used to connect the keyboard to an optional 9vDC,
500mA “wall-wart” type power supply.
19
