M-Audio OXYGEN PRO MINI User Manual

12

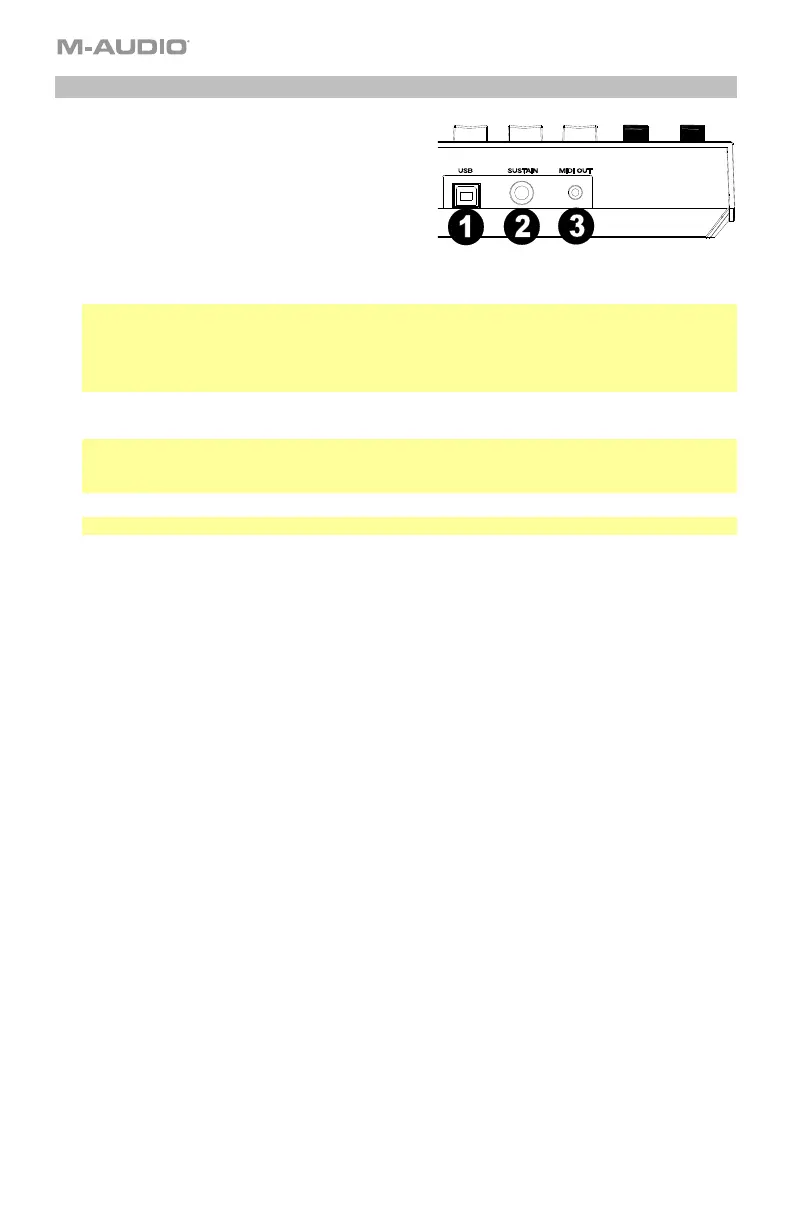

Rear Panel
1. USB: When connected to a computer, the USB
port delivers power to the keyboard and transmits
MIDI data.
2. SUSTAIN: This input accepts a momentary-
contact foot pedal (not included). When pressed,
the pedal by default will sustain the sound you
are playing without you having to keep your
fingers pressed down on the keys. The sustain
pedal input can be remapped to perform a
custom MIDI assignment.
Note: The polarity of the sustain pedal is determined by the keyboard upon startup. When an
Oxygen Pro Mini keyboard is powering up, the sustain pedal is assumed to be in the "up" (Off)
position. It is important that the sustain pedal is not in the down position before starting up the
keyboard, as the pedal will then operate in reverse, and notes will sustain when the pedal is not
pressed.
3. MIDI OUT: Use a 1/8” TRS to 5-pin MIDI cable (sold separately) to connect this port to a
hardware synth or other MIDI device.
Note: The MIDI output port can send MIDI from the Oxygen Pro Mini, your connected computer,
or both. Go into the Global Settings (see Global Settings Menu) to set what is sent to the MIDI
Out.
Note: Please use a TRS 3.5 mm to 5 Pins DIN Female - Type A cable

M-Audio OXYGEN PRO MINI Specifications

General

Control type	Buttons, Rotary, Slider
Number of pads	8
MIDI-keyboard number of keys	32 keys
Product color	Black
Octave adjustment	Yes
Display type	OLED
Power source type	USB

Weight and Dimensions

Depth	190 mm
Width	401 mm
Height	60 mm
Weight	1200 g
