IDM 510-065-1
K11-R sealing unit
English languageOperation and maintenance manual
▀
Upper sealing unit (ap 30 mm)
1. Remove the adhesive tape from the
sealing unit.

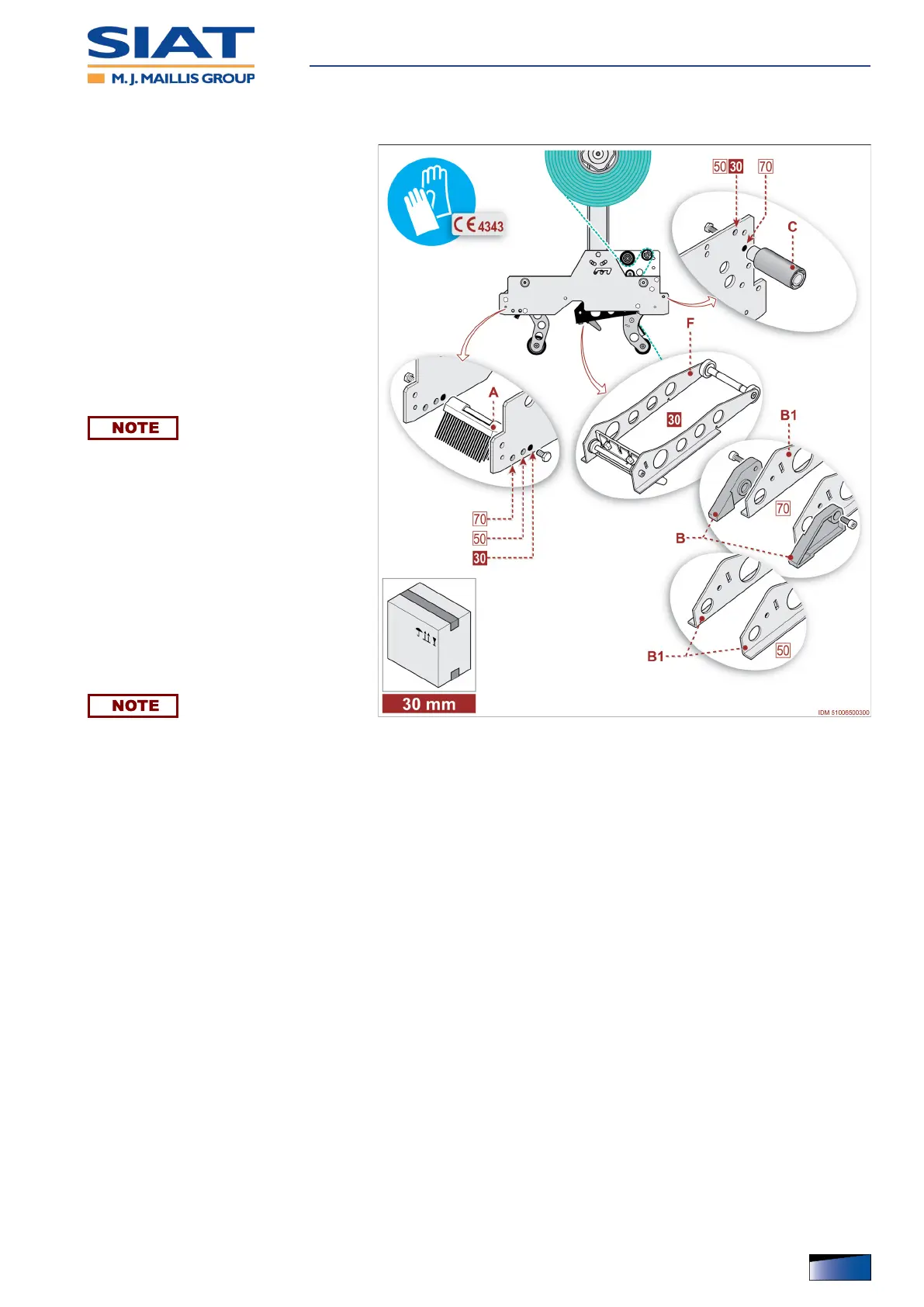

2. Components A-C-F must be installed
as shown in the gure.
3. Apply tape stretcher to the adhesive
side of the tape.
4. Guide tape stretcher until the tape
stretcher is beyond the point of tan-
gency of case inlet roller.
5. Cut the adhesive tape close to tape
stretcher.
The part of exceeding adhesive tape
must not be lower than the ap
length.
– Request components B-B1 in or-
der to obtain a 70 mm ap.
– Request components B1 in order
to obtain a 50 mm ap.
▀
Lower sealing unit (ap 30
mm)
1. Lift upper conveyor completely.
This operation is necessary to assist
the operations.
2. Remove lower sealing unit
– Repeat the operation according to the procedure described for upper sealing unit.
3. Insert sealing unit into its original housing.
To Next Page
