Main Module Menu Summary
1. Main Menu
- Functions : Controller Type, Communication Protocol, Version Info., Language Setting and Time
Setting
* Time Data is retained minimum 1year by battery without input power voltage.
2. Communication Setting
- Functions : Baud Rate, Data Bit, Parity Bit, Stop Bit, Communication Level, Station Num, Serial
Timeout, Send Wait, 2Port Communication Setting, N:1 Setting and Ethernet setting.
3. Initial Setting
- Functions : Power On Mode, Screen off Time, Buzzer Sound, Latch Start Buf., Latch End Buf.,
Alarm, Printer, Security Password, Touch sensitivity, USB setting, LCD Brightness and Default
Setting
4. Diagnosis
- Functions : Print Test, Memory Test, Touch Key, Display Test, Communication Diagnosis,
Port Diagnosis and CF-card setting.
5. System Information
- Excluding Time data, you can have data of internal system buffer memory at the time of quitting
running. (* Data type is 16bit HEX)

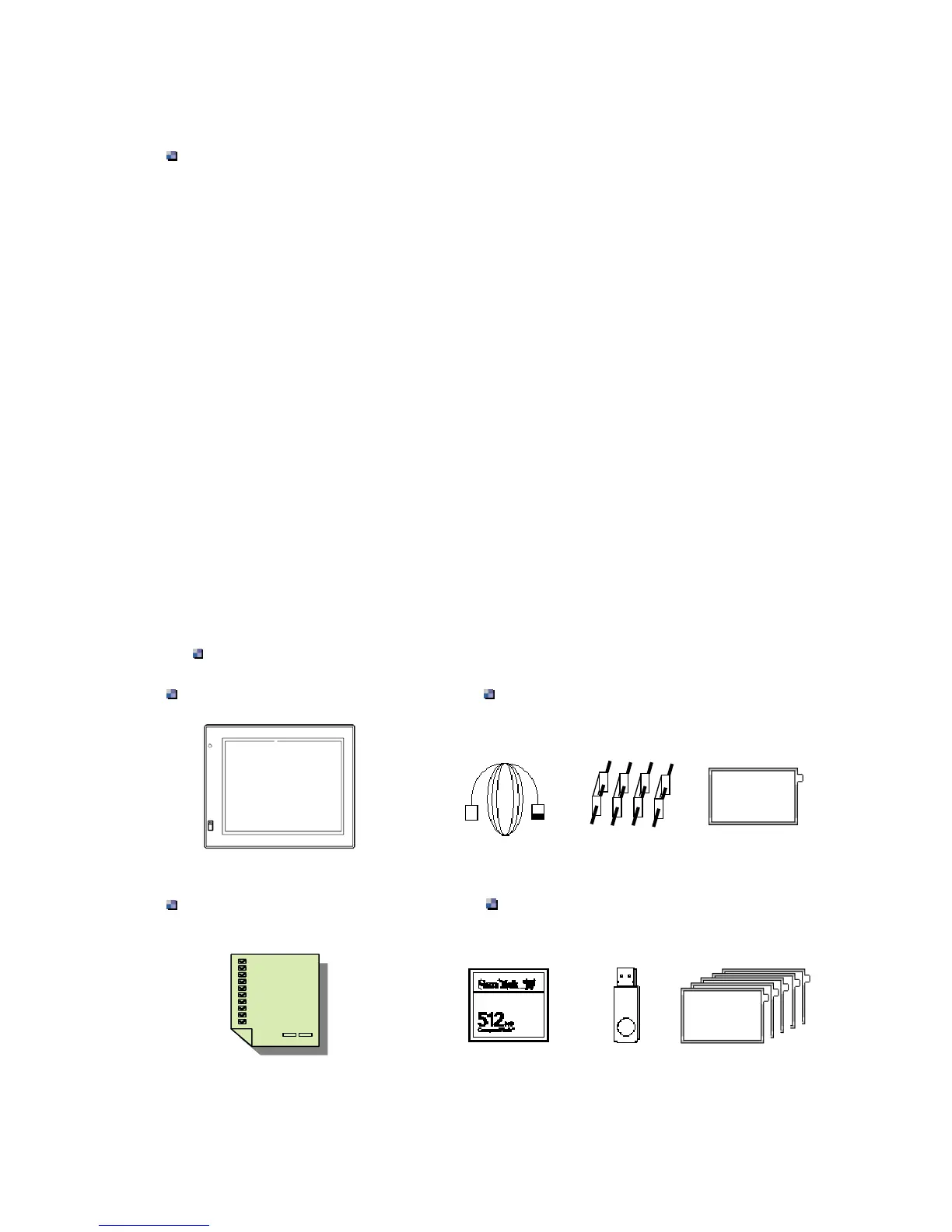

Package Contents
Main Module 1set USB Download Cable 1pcs,
Bracket 4pcs, Protection sheet 1pcs
Main Module H/W Manual CF-Card / USB (option)
Communication Cable Connection Protection sheet 1set(5pcs) (option)
