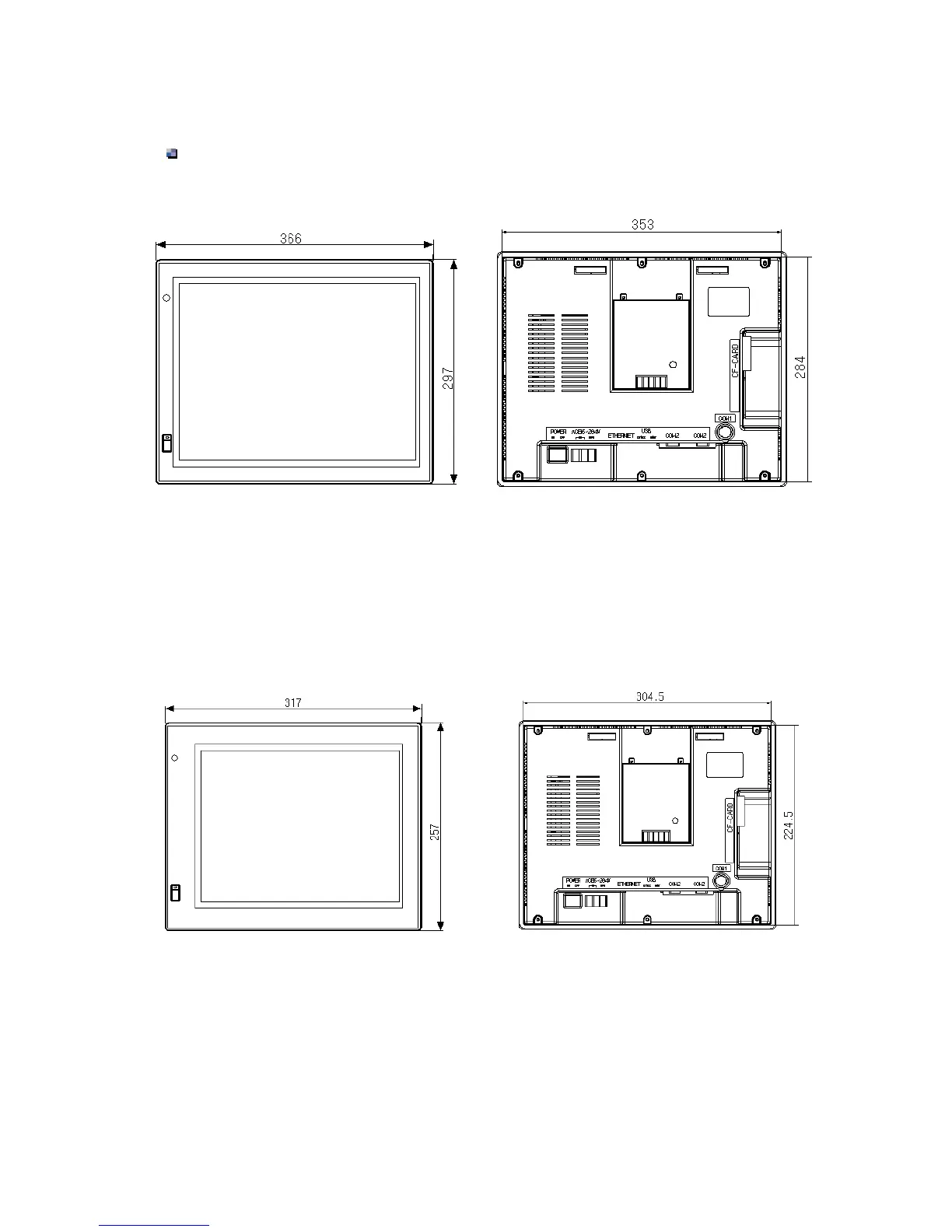

Outer Dimension (Front, Rear, Side, Upper, Bottom)

[Fig. 1]

[Fig. 1] XTOP15 series  Front Outer and Rear Outer Dimension]

* XTOP15 series panel cut size : 357(W) X 286.5(H) mm

[Fig. 2]

[Fig. 2] XTOP12/10 series  Front Outer and Rear Outer Dimension]

* XTOP12/10 series panel cut size : 307(W) X 247(H) mm
