Display
The MA 2Port Node display will only show the most important settings. For configuring a node, you have to use a
grandMA console or at the onPC versions alternatively the „onPC“ software.

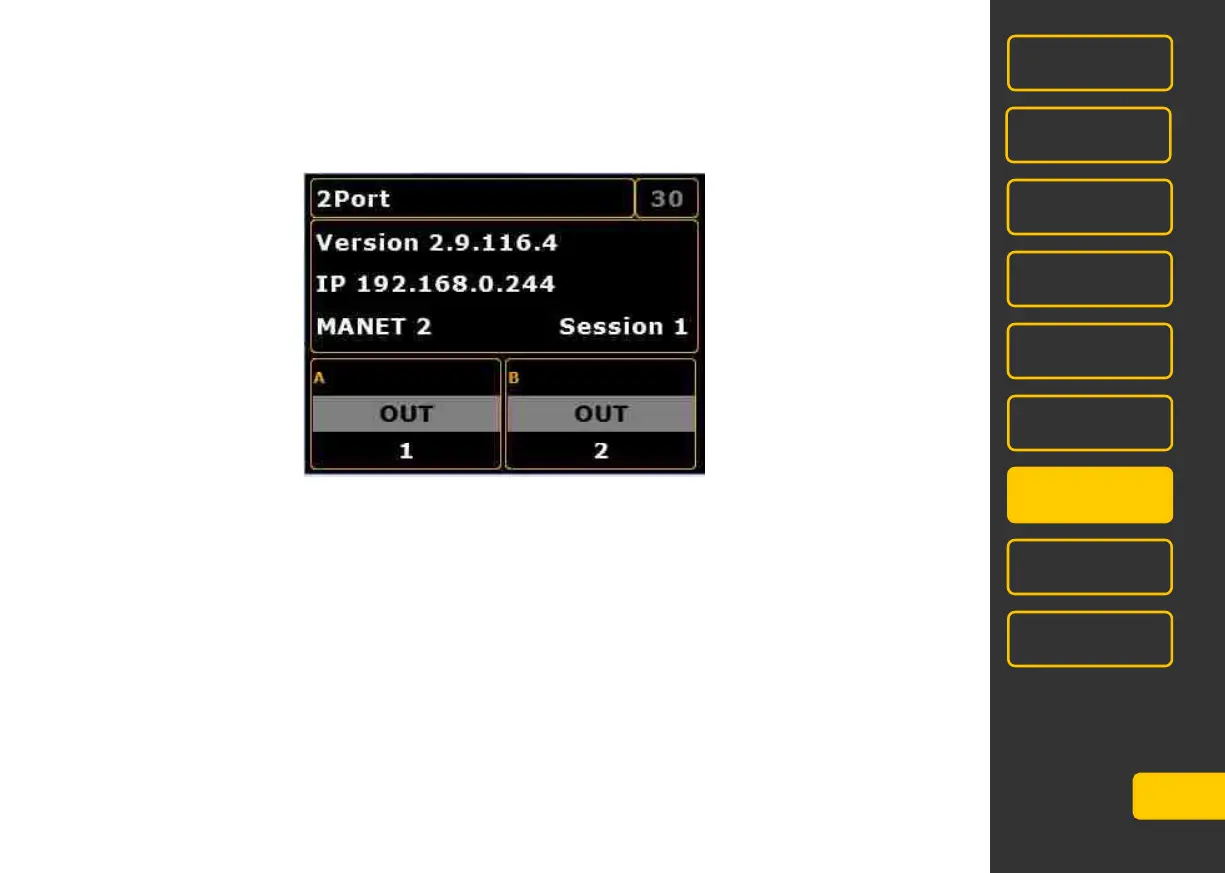

After switching the device on, the display will show this menu:
Name of MA 2Port Node e.g. 2Port
DMX Output e.g. 30 = frequency of DMX-output in Hz; max. 30Hz possible
IP – Address e.g..192.168.0.244
Mode MANET2 or ARTNET
Number of Session e.g. Session 1 - MA 2Port Node is part of session 1
e.g. Session 0 = no session
e.g. Session 3 + areas OUT grey highlighted = no active session
Configuration of DMX-Ports In – this port receives DMX
OUT – this port sends DMX
Flashing frequency of the green area corresponds to the
refresh quote between MA 2Port Node and PC/console
OFF – this port is off
Univers Univers number of respective ports 1 - 256
