indoor unit

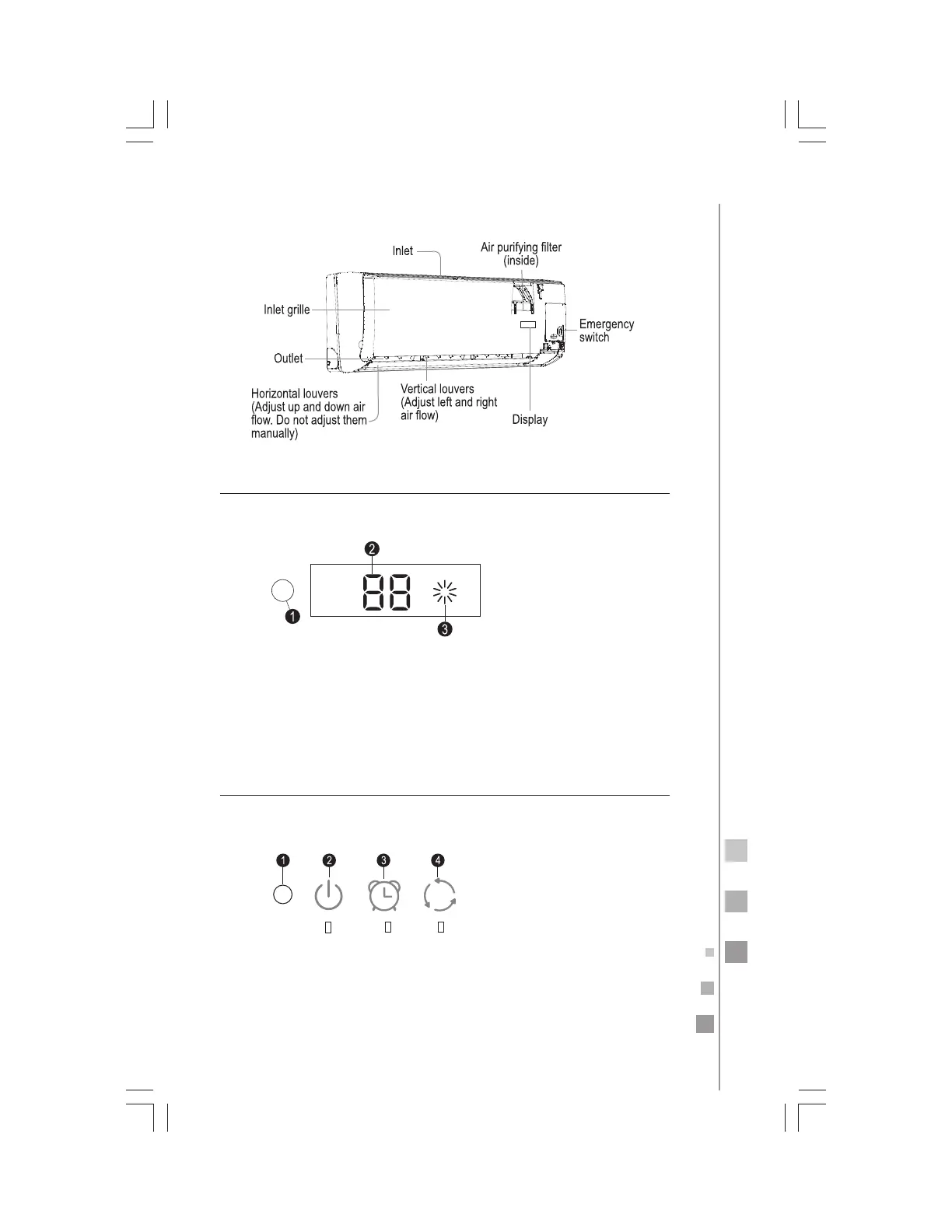

display board B
1. Signal receiver hole.
2. Ambient temp. display. When receiving the remote control signal,
display the set temperature.
3. Operation mode indicator (lights up when the compressor is on.)
display board C (on models having only LED
indicators)
1. Remote control signal receiver. A beep is heard when a signal
from the remote control is received.
2. Power indicator. Lights up when the unit starts.
3. TIMER mode indicator. Lights up when the TIMER operation is se-
lected.
4. Operation mode indicator. Lights up when the compressor is on.
