77
indoor unit

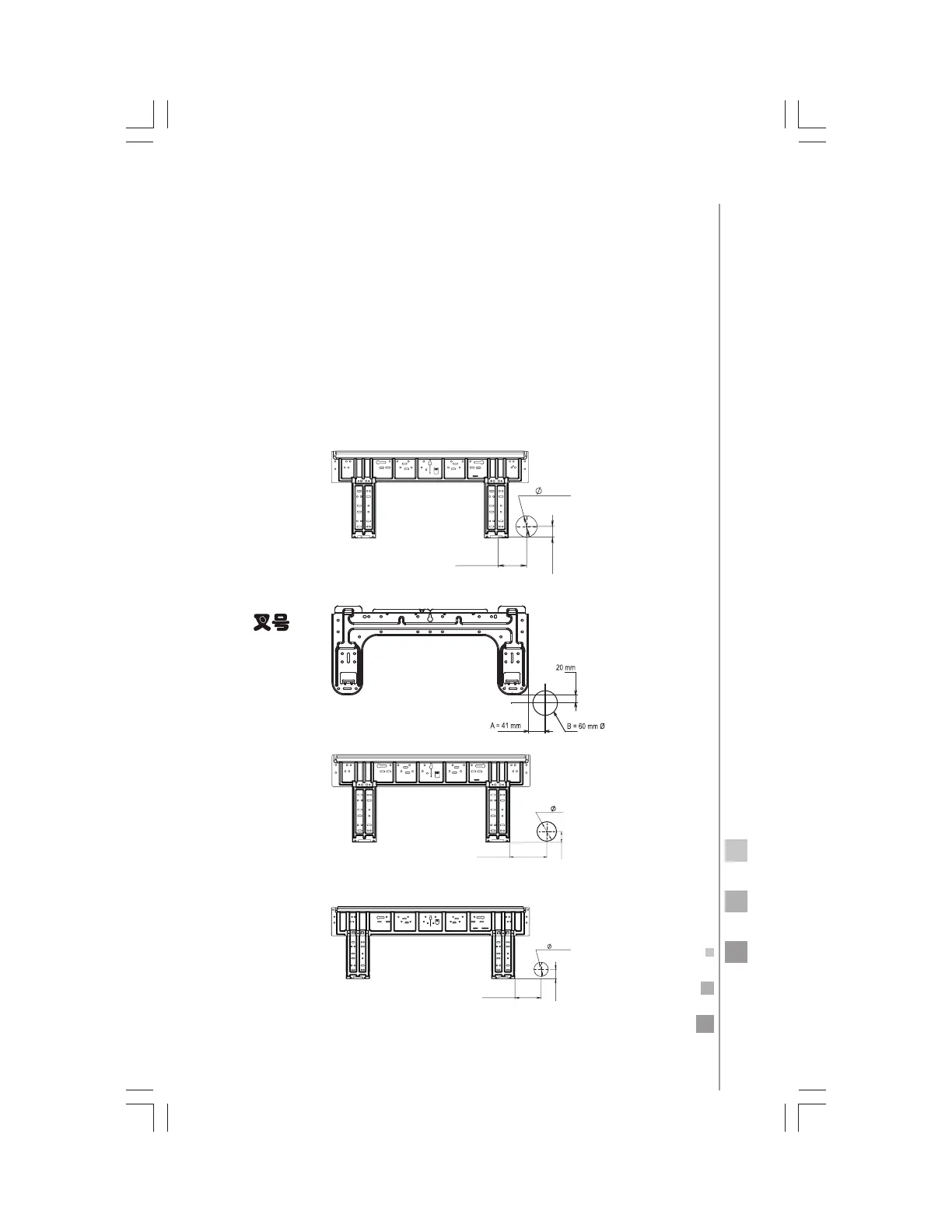

1. Fitting of the mounting plate and positioning of the wall
hole.
1. Carry out based on the neighboring pillars or lintels, a proper lev-
eling for the plate to be fixed against the wall, then temporarily
fasten the plate with one steel nail.
2. Check again the proper level of the plate by hanging a thread
with a weight from the central top of the plate, then fasten se-
curely the plate with the attachment steel nail.
3. Find the wall hole location "A" using a measuring tape.
When the mounting plate is first fixed
For some 12 000 BTU/h systems
For some 18 000 BTU/h and 24 000
BTU/h systems
For 24 000 BTU/h systems
Sistemas de 12 000 BTU/h
B=
60
mm
A=
80
mm
30
mm
B=
60
mm
35
mm
A=
120
mm
A=110mm
40mm
B=
60
mm
