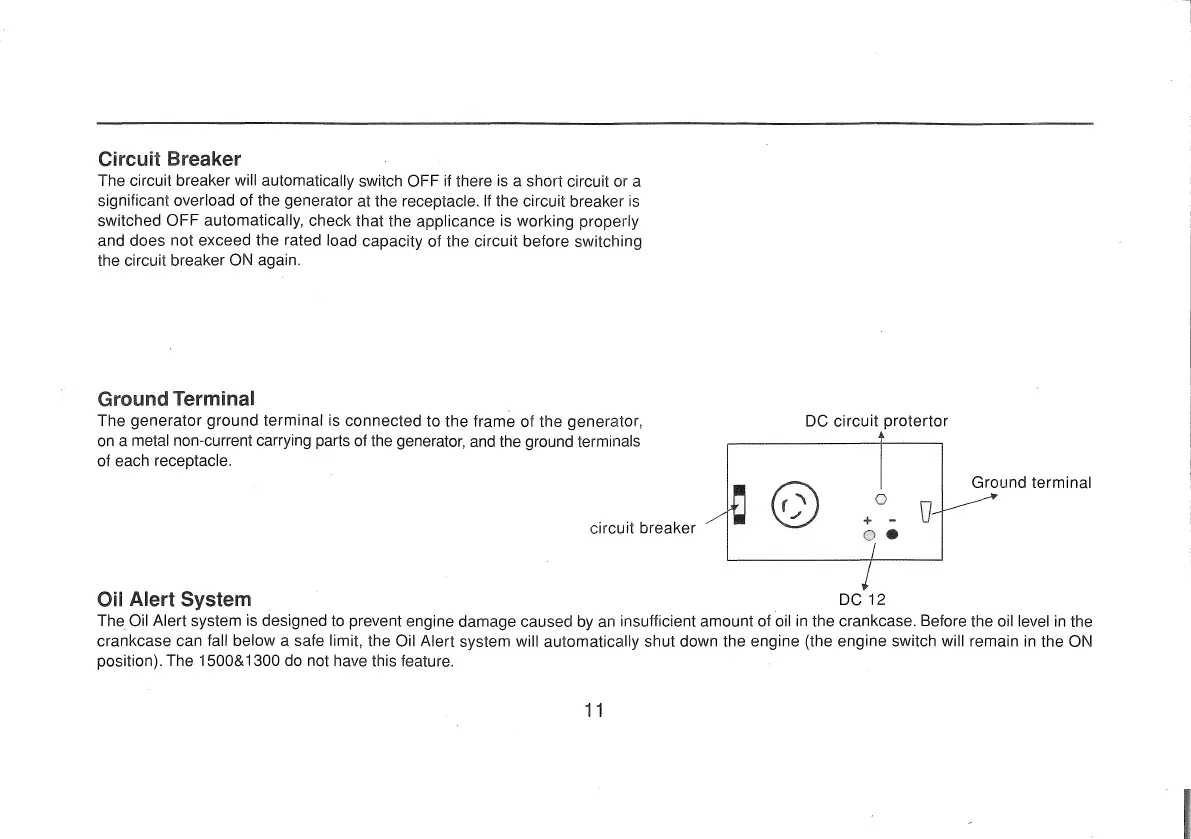

Circuit Breaker
The circuit breaker will automatically switch OFF if there
is
a short circuit
or
a
significant overload of the generator at the receptacle.
If
the circuit breaker
is
switched OFF automatically, check that the applicance
is
working properly
and does not exceed the rated load capacity of the circuit before switching
the circuit breaker
ON
again.
Ground Terminal
The generator ground terminal
is
connected to the frame of the generator,
on
a metal non-current carrying parts
of
the generator,
and
the ground terminals
of
each receptacle.
circuit breaker
_,,
DC
circuit protertor
+
@
0
0
+ -
Oil
Alert
System
DC
12
Ground terminal
The
Oil Alert system
is
designed
to
prevent engine damage caused
by
an
insufficient amount of oil
in
the crankcase. Before the oil level
in
the
crankcase can fall below a sale limit, the
Oil Alert system will automatically shut down the engine (the engine switch will remain
in
the
ON
position). The 1500&1300 do not have this feature.
11
