Mac allister MLM1841 - Page 16

EN
16
Getting
started...
MLM1841
by MacAllister

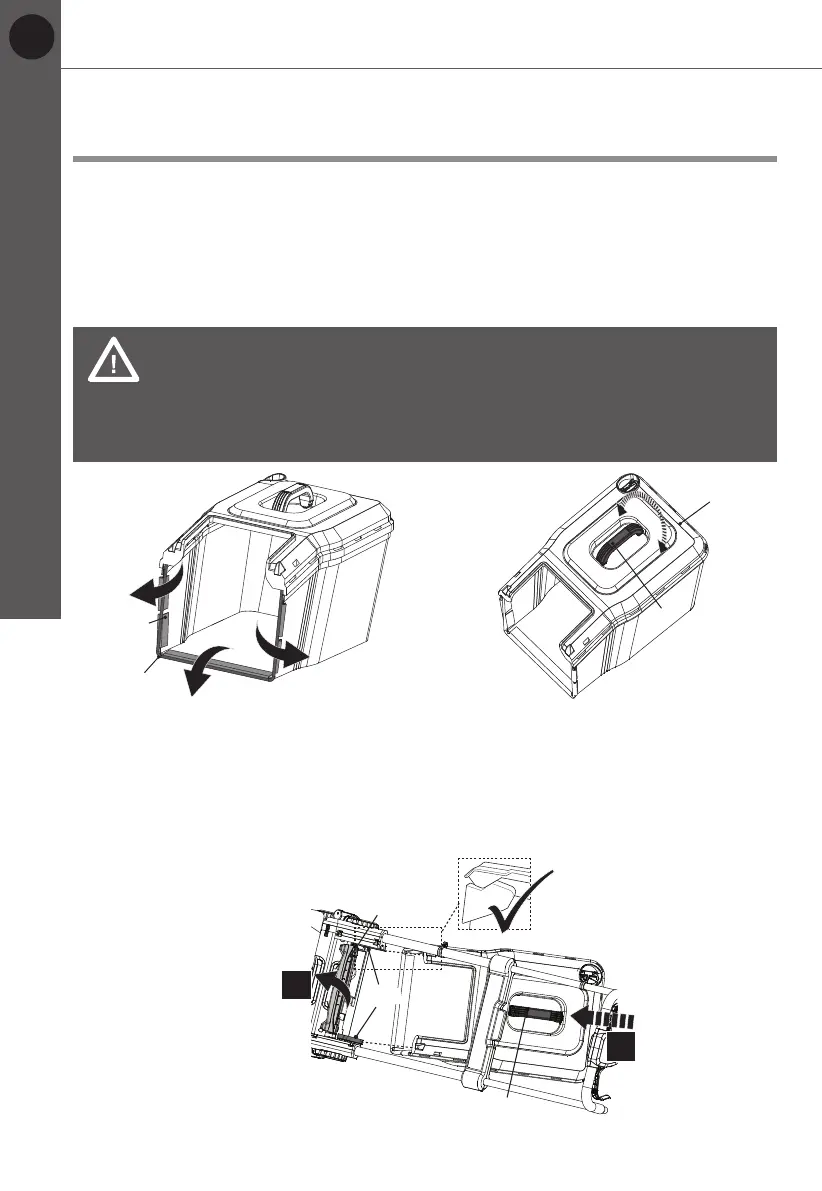

4. Open the deector guard (16) and hold it in position (Fig. 7, step 1).
5. Carry the grass catcher (7) by its carry handle (7a).
6. Align the support with the hooks (19a) and hang the grass catcher onto it (Fig.
7, step 2).
7. Carefully release the deector guard (16) afterwards.
Grass catcher
1. Clip the three rubber clips (7c) to the supporting rod (7d) of the grass catcher (7)
(Fig. 5).
2. The carry handle (7a) is already preassembled on the top cover (7b) and its
position is rotatable to t the intended use (Fig. 6).
3. The grass catcher (7) is ready for use.
WARNING!
Do not attempt to use the product without the grass catcher
attached – danger of flying objects! The motor must be switched off
and the blade must have stopped rotating before you remove the grass
catcher. The grass catcher must be fully assembled with the top part,
bottom part and collection tongue all in position before rst use.
Before you start
Assembly
7d
7c
Fig. 5
7b
7a
Fig. 6
19a
7a
16
1.
2.
Fig. 7
Fig. 7
7d
7c
Fig. 5
7b
7a
Fig. 6
19a
7a
16
1.
2.
Fig. 7
Fig. 6Fig. 5
