8
CHISEL ASSEMBLY
NOTE: Chisel retainers and chisels used should be checked
before use for signs of damage and/or wear. Replace with new
parts promptly, as needed.

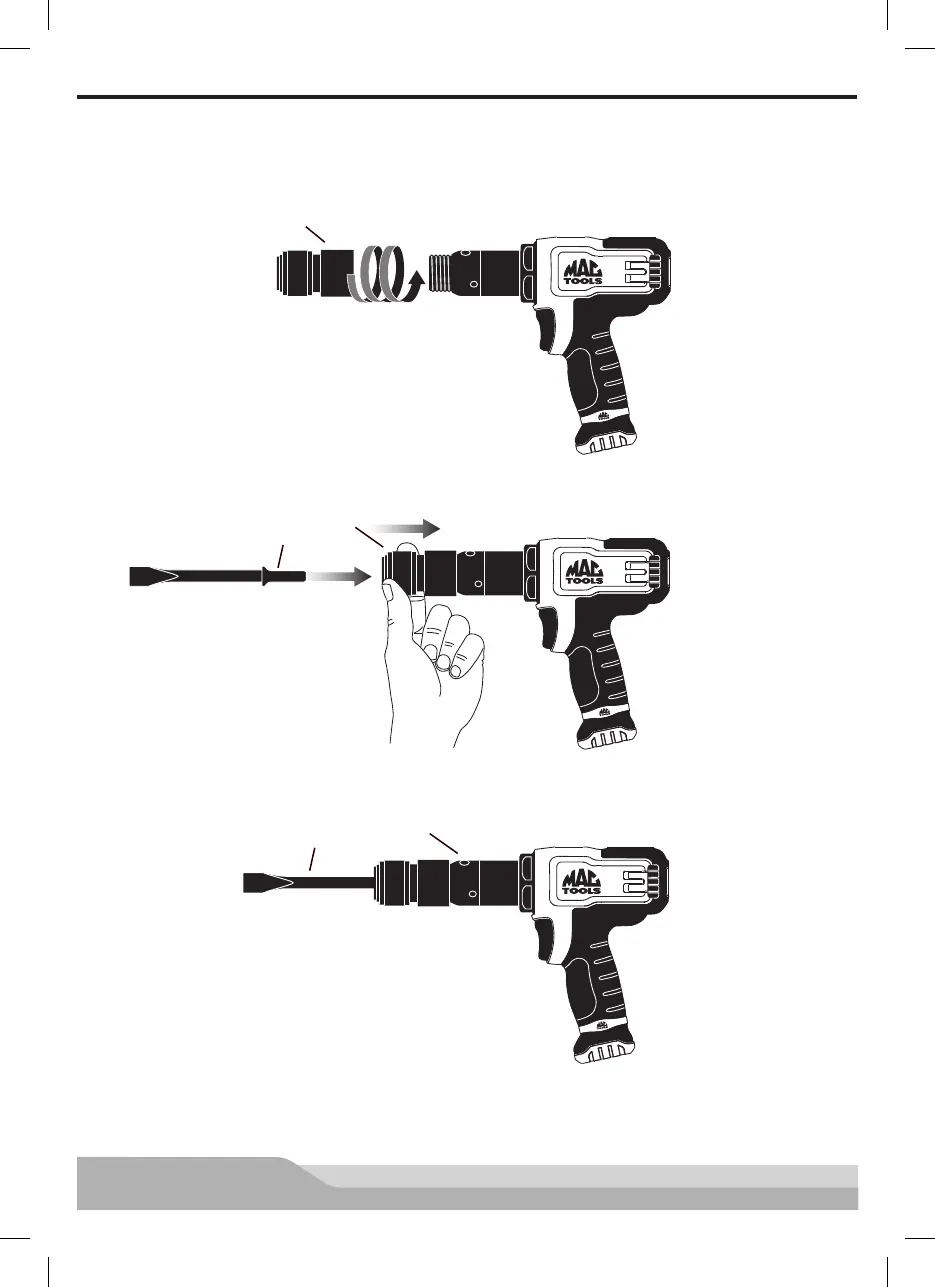

• Screw the chisel retainer (G) to the front end of the tool (Fig. 2).
• Pull back the chisel retainer collar (H) then slide the chisel shank (K) into the collar (Fig. 3).
• After the chisel is fully inserted into the Air Hammer barrel (A), release the retainer collar to secure the
chisel (J) (Fig. 4).
IMPORTANT: The Chisel Retainer prevents the chisel from being ejected from the tool. It must be secure before
use to ensure safe operation of tool.
G
H
K
A
J
Fig. 3
Fig. 4
Fig. 2
