MAC 6000 Hydronic Heater
Riello Burner
2106 East Indiana Ave., Bismarck, ND 58504 U.S.A. • www.macheaters.com • +1-800-272-4604
2453
2
GB

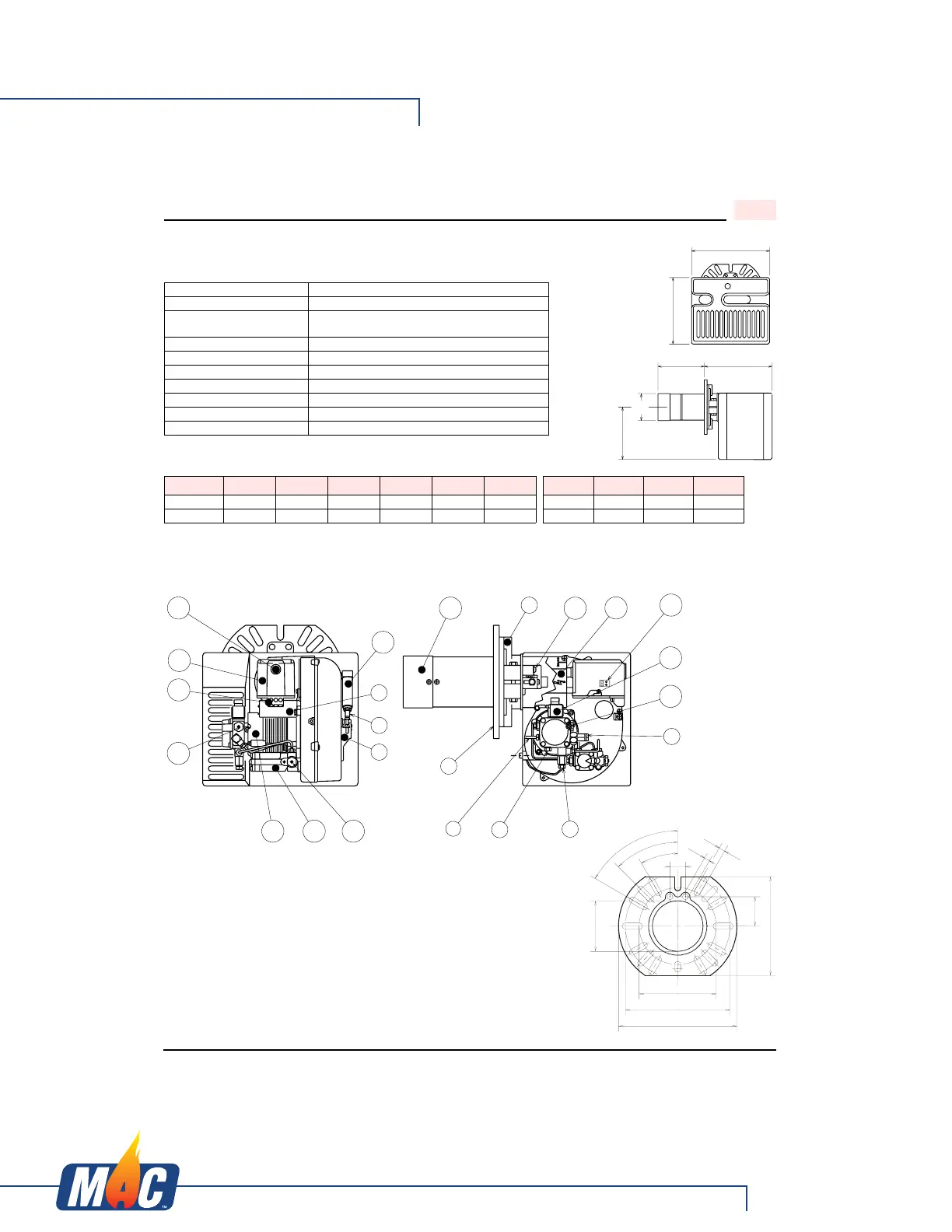

TECHNICAL DATA
SPECIFICATIONS
BURNER AND MOUNTING FLANGE DIMENSIONS
E1: 10-inch long (254mm) tubes are also available.
BURNER COMPONENTS IDENTIFICATION
Fuel No. 2 Fuel Oil
Firing rate 3.50 to 6.40 GPH 11.3 to 20.7 kg/h
Effective output
490,000 to 896,000 BTU/h - 143.5 to 262.5 kW
123,480 to 225,790 kcal/h
Voltage (single phase) 120V 60Hz (+ 10% - 15%)
Absorbed electrical power 465 Watts
Motor (rated) 3250 rpm Run Current 4.3 AMP
Capacitor 16 Microfarads 260V
Pump pressure 100 to 200 psi
Primary control RIELLO 530 SE/C 24V
Ignition transformer 8kV 16mA
Model F20 A B C D E F G H I L
Inches 11 3/4 13 25/32 9 1/16 4 11/16 5 11 27/32 1 1/2 1/4 7/16 2 7/8
mm 298 350 230 119 127 301 38 6 11 73
D8860
B
A
EF
E1
C
D
18
5
19
14
23
1
21
4
3
2
6
22
15
16
14
13
17
9
8
12 11 10
7
BURNER COMPONENTS
1 Pressure gauge connection port
2 Return fuel line port
3 Inlet fuel line port
4 Capillary tube
5 Adjustable collar
6 Mounting flange with gasket
7 Air adjustment fixing screws
8 Hydraulic air shutter
9 Capacitor
10 Fuel pressure adjustment screw
low fire
11 Hydraulic delay valve low fire start
12 Motor
13 Pump pressure regulator adjust-
ment screw
14 Primary control sub-base
15 Lockout indicator lamp and reset
button
16 Primary control
17 Hydraulic jack
18 End cone
19 Turbulator adjustment screw
20 Air tube cover
21 Coil
22 Vacuum gauge connection port
23 24V thermostat connections
6
17
/
32
”-166mm
8
1
/
4
” - 210 mm
9
1
/
4
” - 235 mm
7
7/
8
” - 200 mm
4
31
/
32
”
126 mm
6
0°
4
5
°
3
0
°
H
I
G
L
D6000
D8806
