MacAllister MTC650 - Assemble;Adjust Metal Bracket

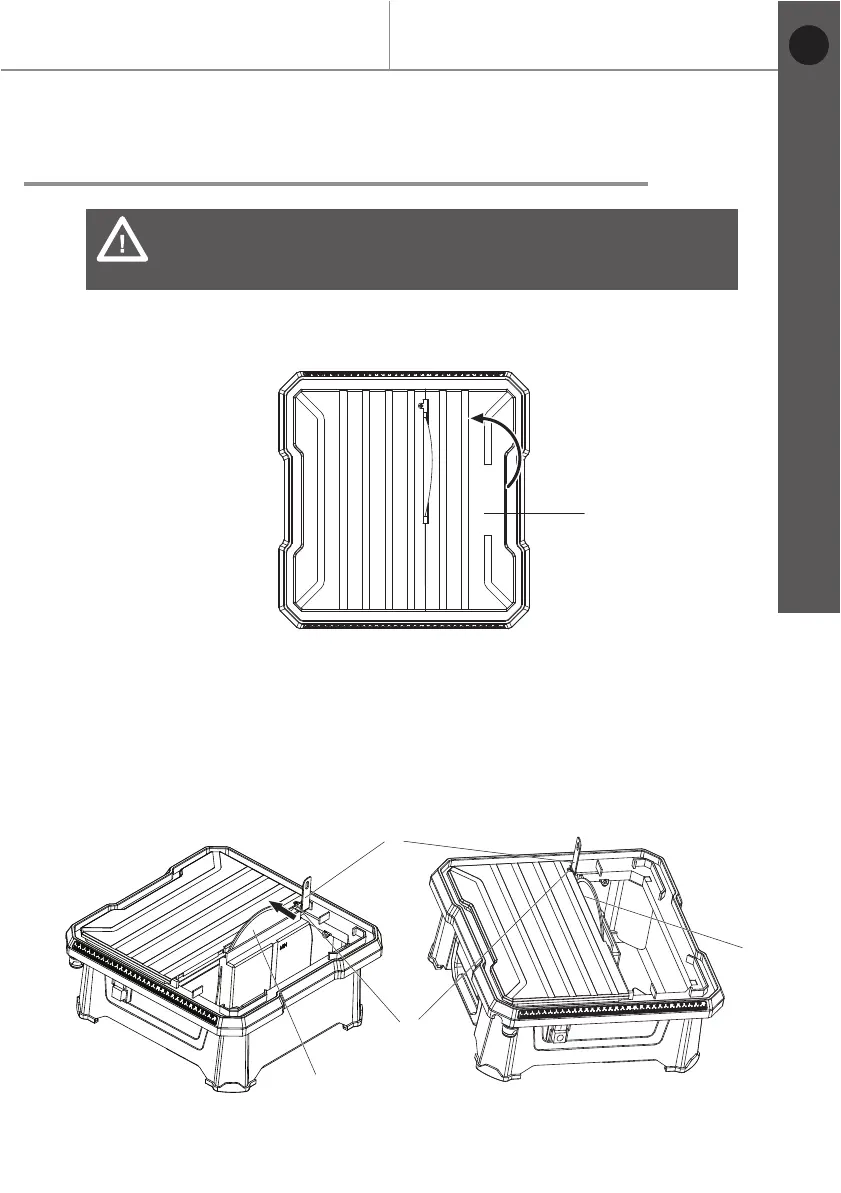

Fig. 6-1Fig. 6
Fig. 5
Assemble/adjust metal bracket
> Unplug the tile cutter from the mains supply.
> Raise the vertical fence (3) approx. 45° and remove.
> Loosen the cross-screw (26) with the Phillips screwdriver (not supplied).
> Push slotted hole in the metal bracket (13) below the cross-screw (26).
> Gently tighten the cross-screw (26).
> Align metal bracket (13) with the cutting disc (2).
> Tighten cross-screw (26) with a Phillips screwdriver (not supplied).
> Replace the vertical fence (3).
WARNING: Product damage!
The metal bracket must always be aligned parallel to the cutting
disc.
