MacAllister MTC650 - Extension Table Installation

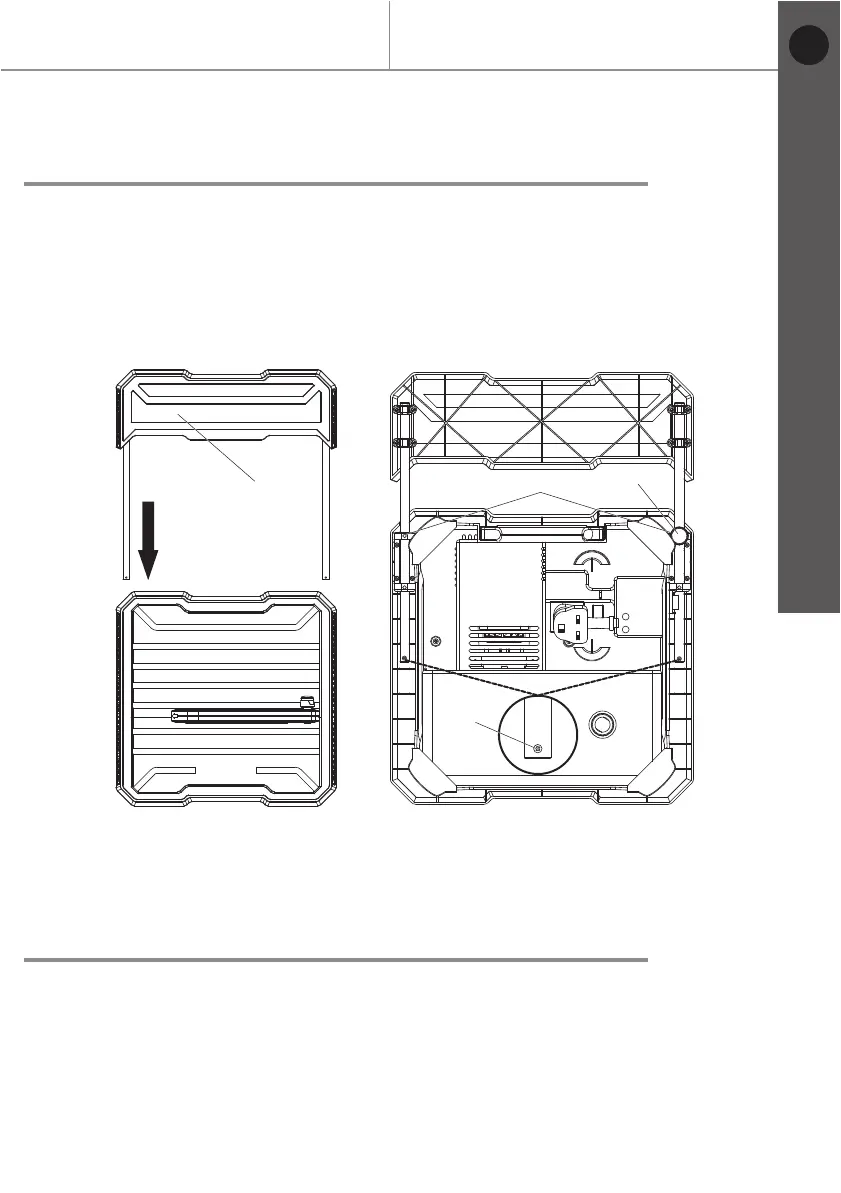

Fig. 8
Before you start
MTC650 by MacAllister
Getting started...
17
Setting the extension table
> Unplug the tile cutter from the mains supply.
> Loosen the locking knob (8).
> Set the extension table (9) to the desired distance from the cutting disc.
> Tighten the locking knob (8).
Mounting the extension table
> Unplug the tile cutter from the mains supply.
> Undo the cross-screws(29).
> Push the guide rails for the extension table (9) on both sides into the locator (30)
of the machine body.
> Refit the cross-screws (29).
> Mounting the locking knob (8).
9
8
30
29
