MacAllister MTC650 - Parallel Cutting Guide Setup

Fig. 9
18
MTC650 by MacAllister
Before you start
Getting started...

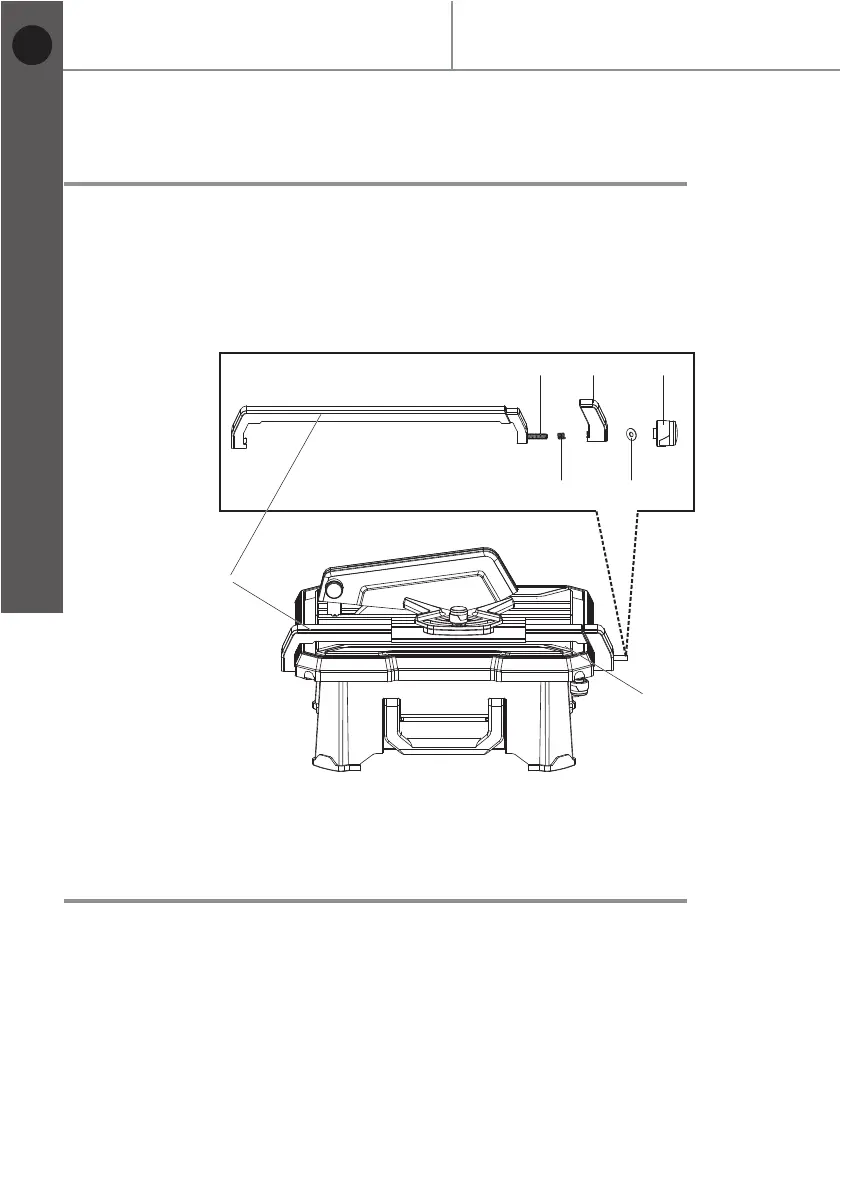

Mounting the parallel cutting guide
> Unplug the tile cutter from the mains supply.
> Attach the rear end of the parallel cutting guide (11) to the rear of the working
table (5).
> Push the spring (31), clamp (32) and washer (33) onto thread (34).
> Screw locking knob (7) onto thread (34) and tighten.
Adjusting the parallel cutting guide
> Gently release the locking knob (7).
> Push the parallel cutting guide (11) to the desired distance.
> Tighten the locking knob (7).
11
5
34 32 7
31 33
EN
