Take Apart Analog Board & Power Supply - 7

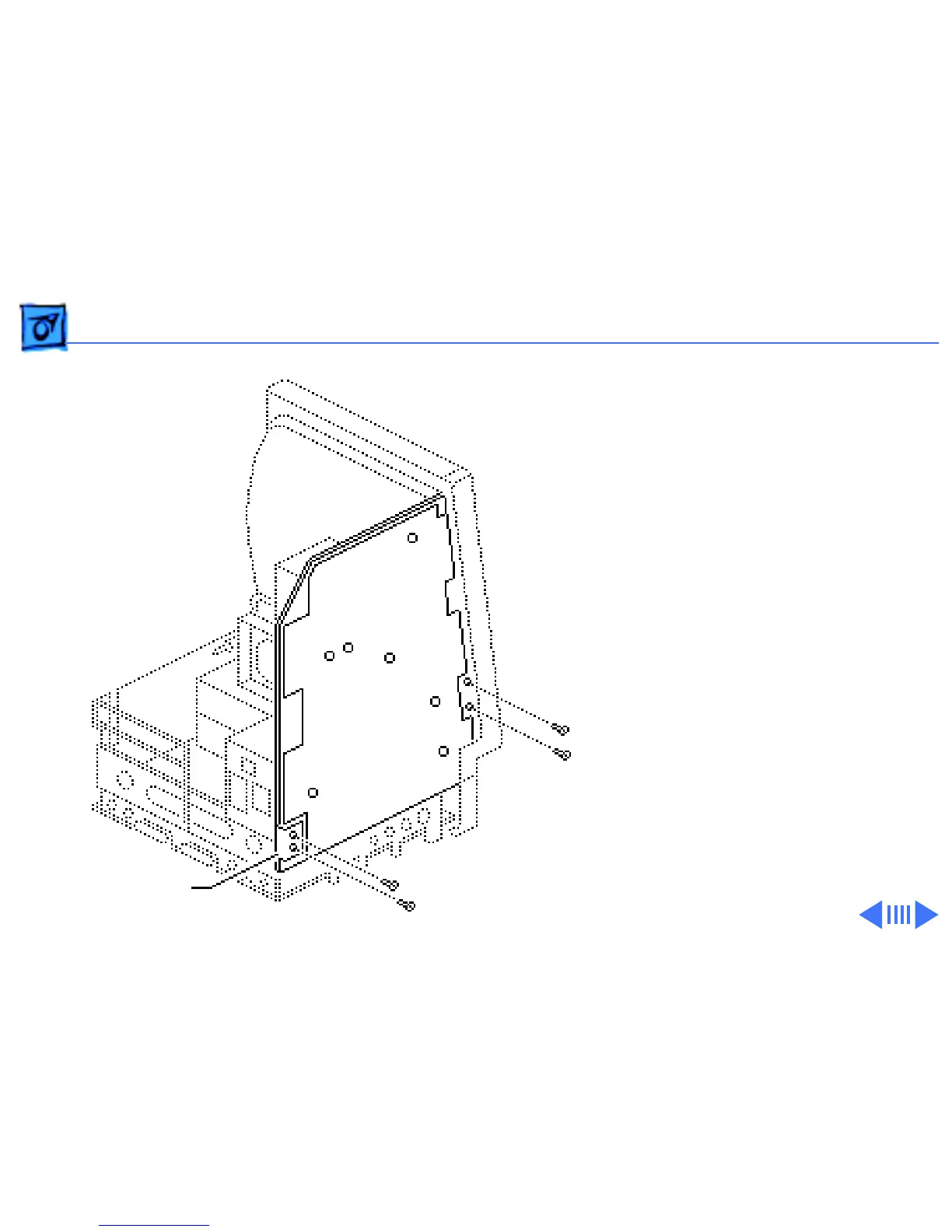

4 Remove the four screws
that secure the analog
board to the chassis.
5 Remove the metal clip
from the corner of the
board.
Metal Clip
