Macintosh SE - Page 84

Upgrades Logic Board Upgrade - 14

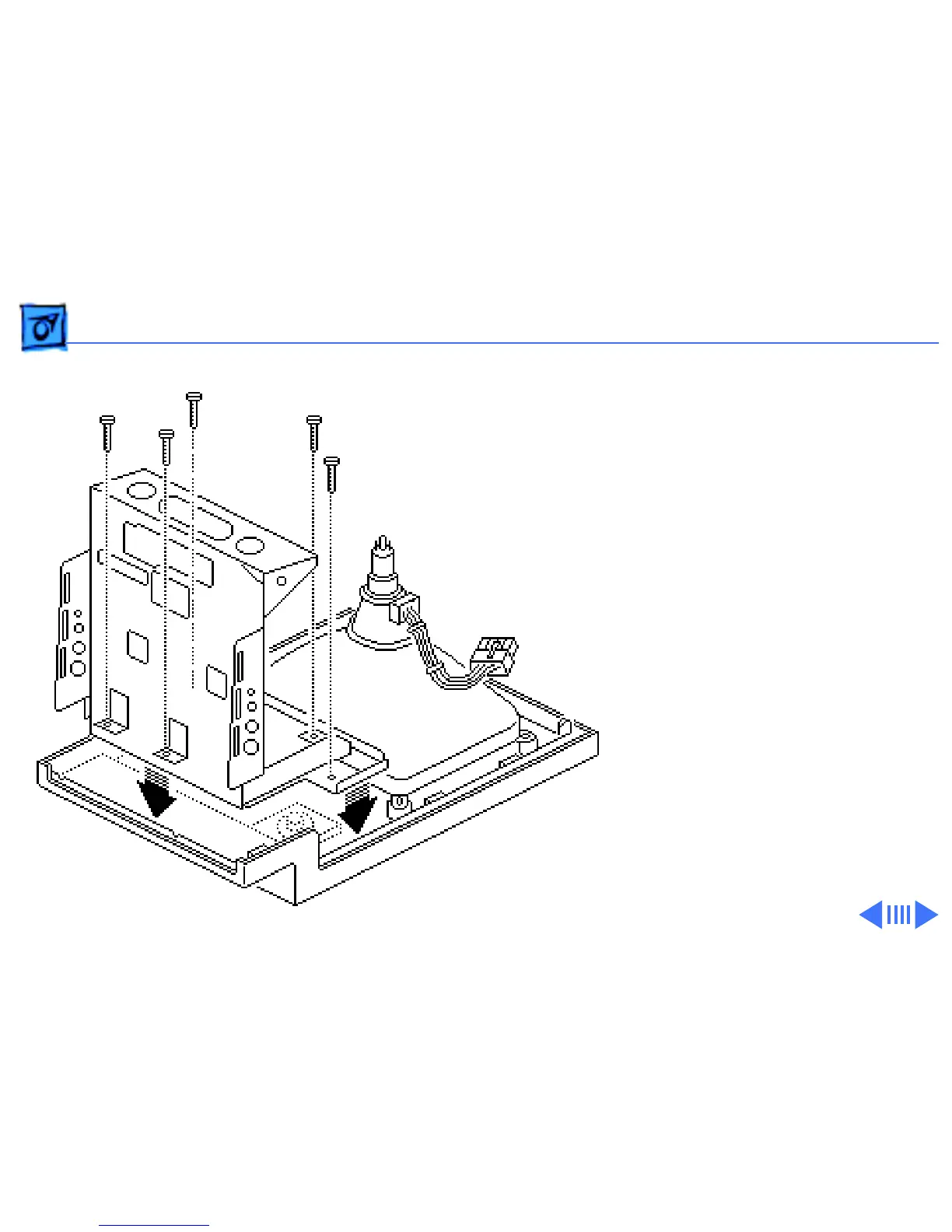

4 Install the new chassis
on the new bezel with
five Torx screws.
5 Install the hard drive or
upper floppy drive on
the new chassis. Refer
to “Hard Drive” or
“Upper Floppy Drive”
in Take Apart.
6 Replace the analog board.
Refer to “Analog Board”
in Take Apart.
7 Install the new SE/30
logic board. Refer to
“Logic Board” in Take
Apart.
