Macintosh SE - Page 85

Upgrades Logic Board Upgrade - 15
8 Clasp the clip-on ferrite
bead around the video
board cable as near the
video board connector as
possible. Secure the
ferrite bead near the
connector with tie-
wraps.
9 Replace the video board.
Refer to “Video Board”
in Take Apart.
10 Install the new
insulating shroud over
the bottom of the SE and
replace the cover. Refer
to “Cover” in Take
Apart.

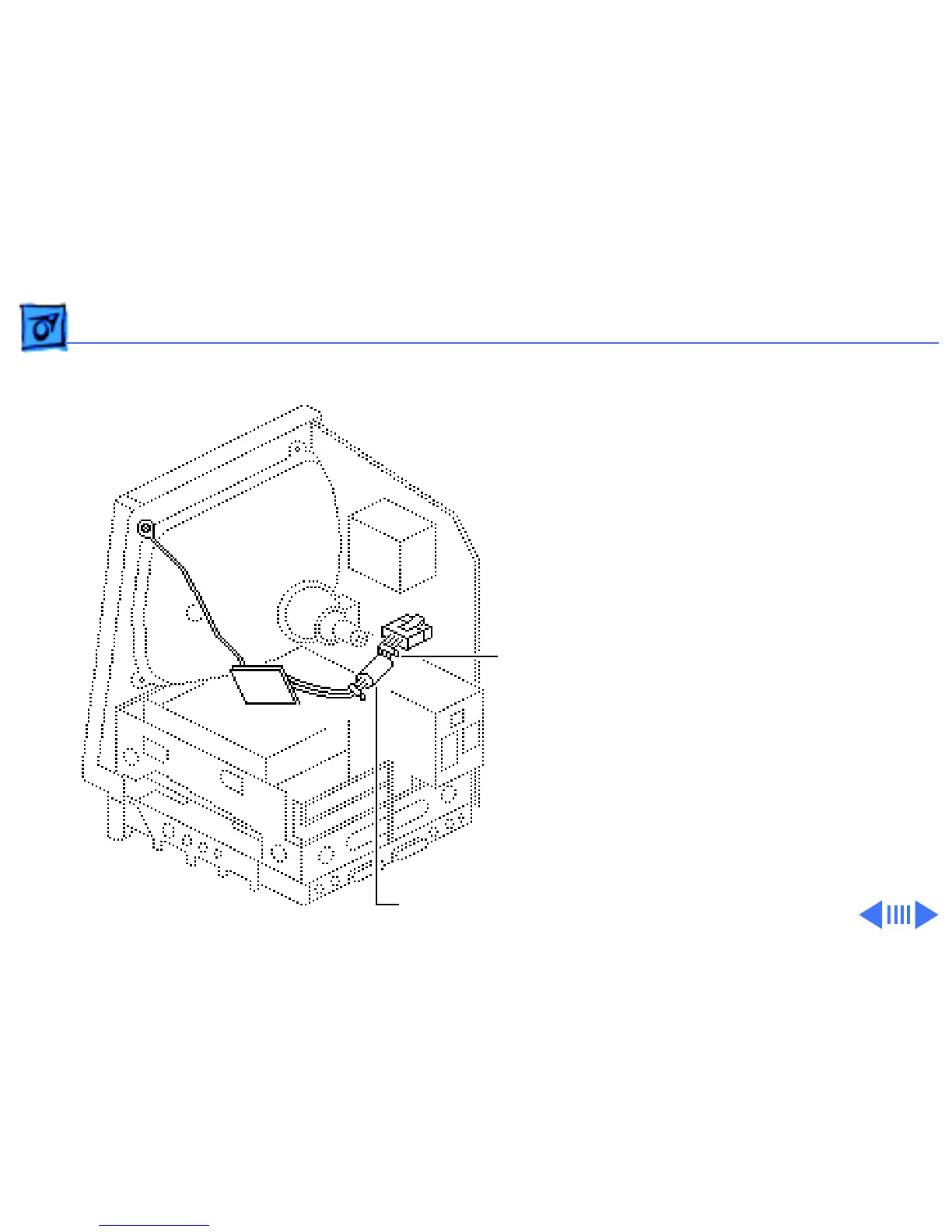

Tie-Wrap
Ferrite Bead
