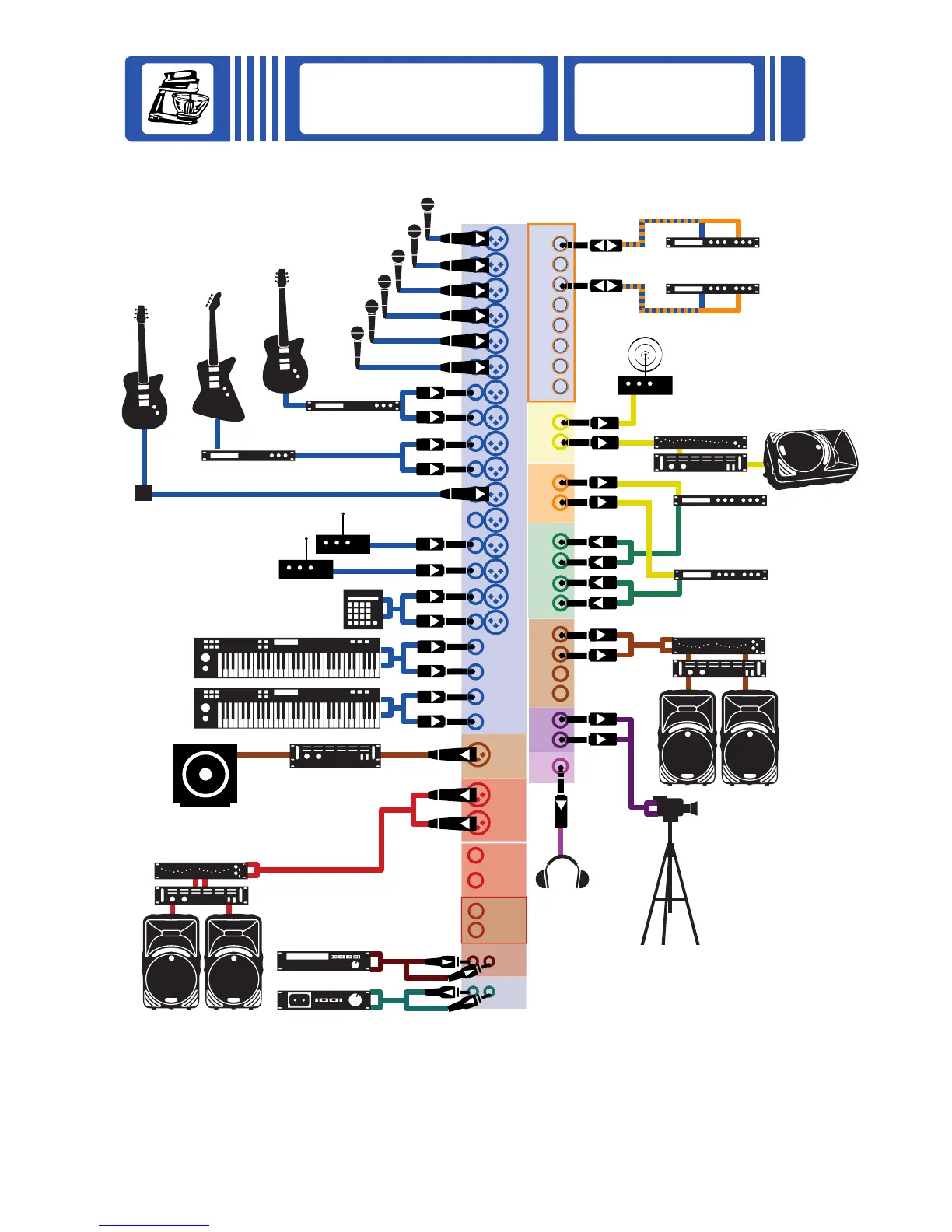

Mackie CFX 12 Hook-Up Guide

SET IT UP, AND GO!
VLZ PRO CFX SERIES
CFX-20
CHURCH SET UP
CHANNEL INSERTS
STEREO EFX RETURNS
MAIN OUT
BAL/UNBAL
1
LR
2
PHONES
OUT
AUX SENDS
BAL/UNBAL
SUB OUTS
BAL/UNBAL
CHANNEL INPUTS
TAPE
OUT
TAPE
IN
EFX SENDS
BAL/UNBAL
SUB OUT
75Hz
UTIL OUT
BAL/UNBAL
MAIN OUT
BAL/UNBAL
LR
MAIN
INSERT
Mic 1-6
Processors
Reverb/Delay
Reverb/Delay
Keyboards
Drum Machine
Compressors
Assisted Listening
Transmitter
Mono EQ, M•1400i Amp,
Passive Stage Monitor (C300)
Wireless Mic
Receivers
Stereo EQ, M•2600 Amp,
and Passive PA Speakers (C300s)
Stereo EQ, M•1400i Amp,
and Passive PA Speakers (C300s)
Headphones
Bass
Guitar
Guitar
Direct Box
Cassette
or
DAT Recorder
CD Player
M•2600 Amp
Subwoofer
To the line level
inputs on a
Video Camera/
TV/Radio feed
