Hookup Diagrams
A DRM8S subwoofer and DRM loudspeaker is the perfect tool for a standard PA setup, whether installed in a club,
gymnasium, house of worship and more.
Here you will want to connect a cable from the mixer’s lef main output jack to the ch.  input jack of the DRM8S.
The ch.  high-pass output of the DRM8S subwoofer is then connected to the ch.  input of the DRM loudspeaker
[DRM22 in this example].
It is possible to reproduce this exact same hookup in stereo. Simply utilize the lef and right main outputs from the mixer
to feed the ch.  input of each DRM8S and mirror the rest of the system as described above.
You will want to set the crossover to DRM Top as described in detail on page 3. Or set it to Var if using a non-DRM
loudspeaker.
Simple PA Setup

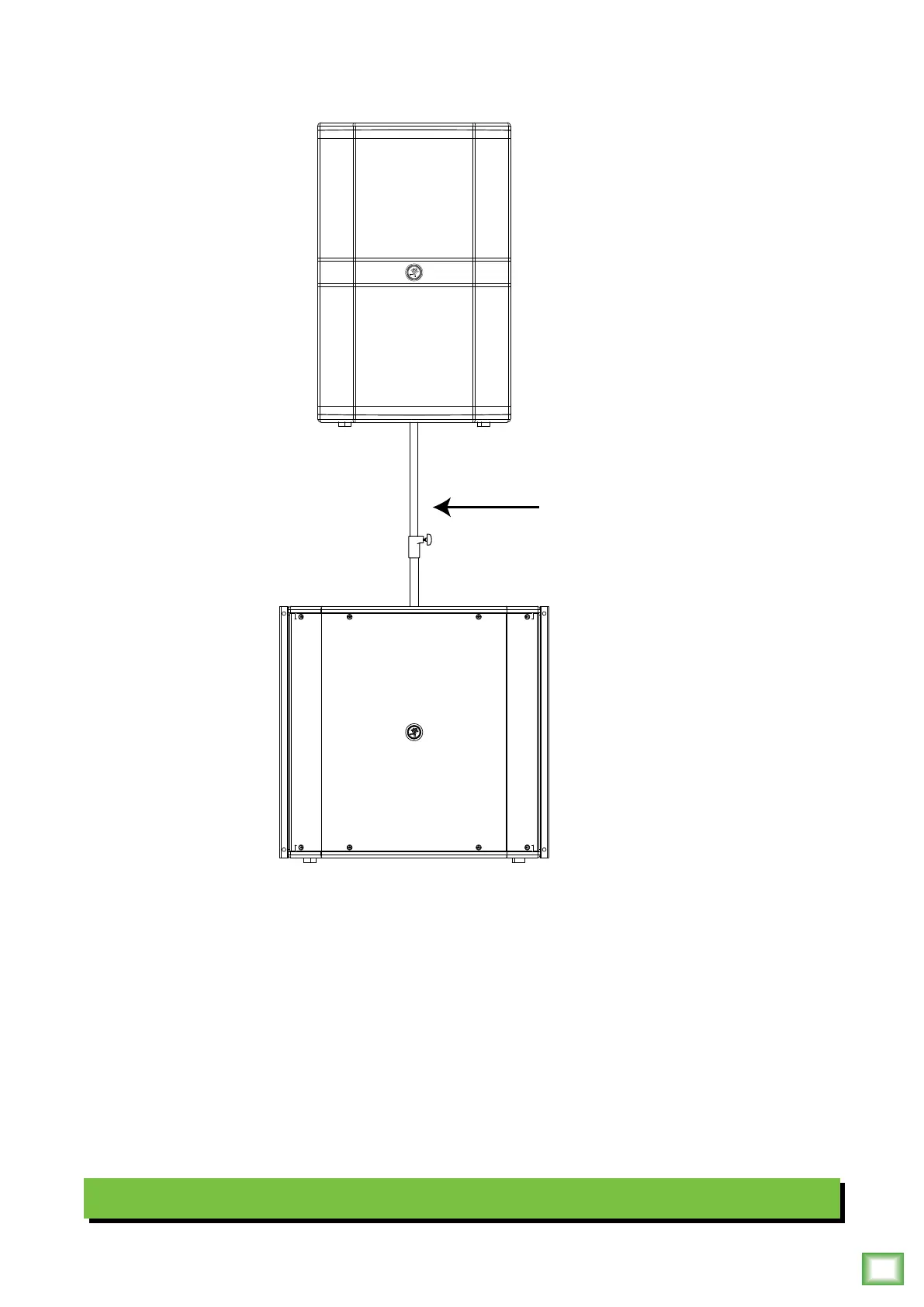

SPM400 Pole Mount
