Owner’s Manual
7
Owner’s Manual
Hookup Diagrams continued...

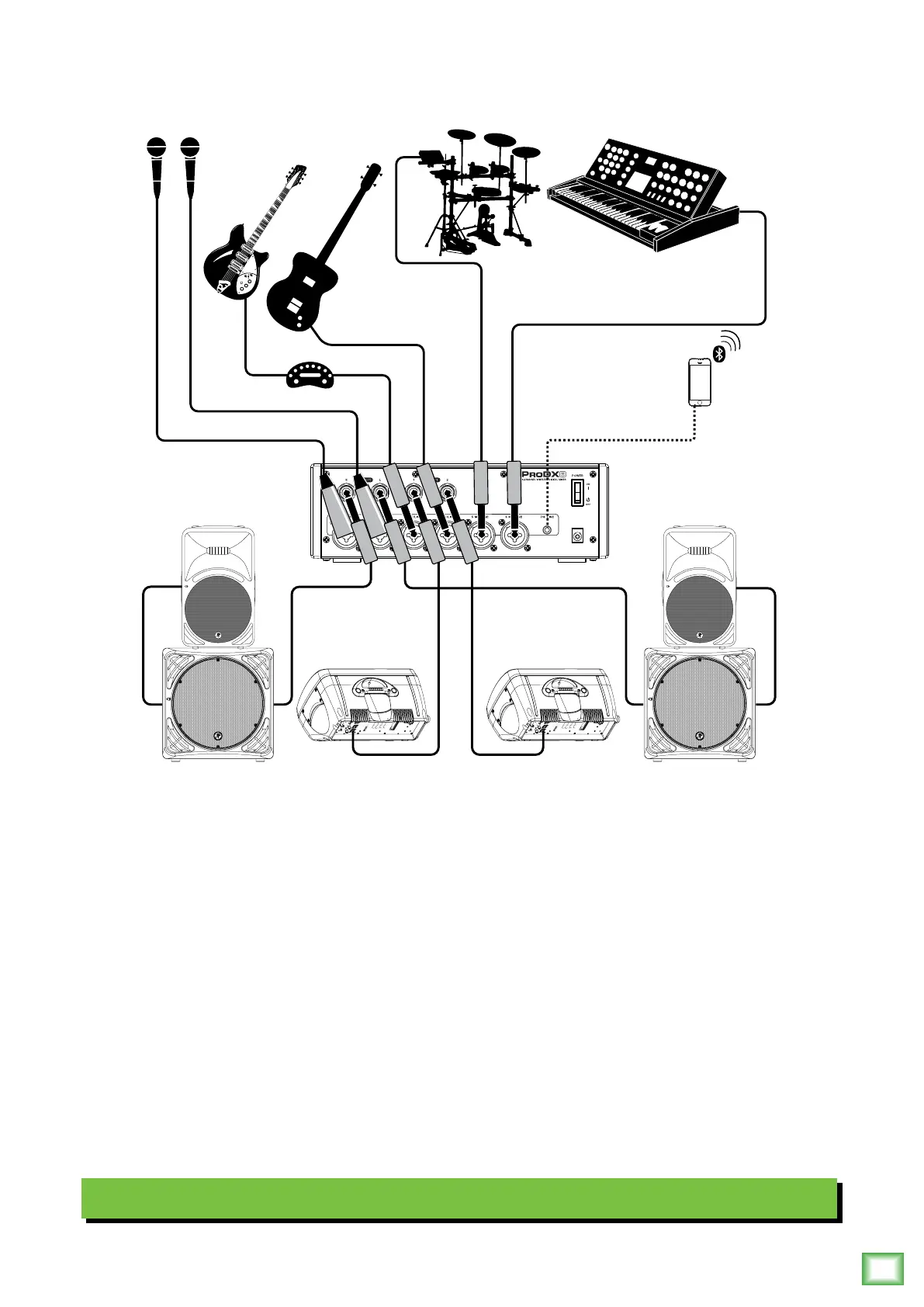

Band Setup
ON
POWER
SIG/OL
SIG/OL
U
MAX
LI MIC
U
MAX
LINE MIC
PA
DJ
MON
SOLO
1
ON
HOLD TO
CLEAR
2
3 4
LIMIT
ON
LOGO
OFF
SPEAKER MODES
PA
DJ
MON
SOLO
20Hz 100Hz 1kHz 20kHz
20Hz 100Hz 1kHz 20 kHz
R L
GAIN
GAIN
SPEAKER
MODE
FEEDBACK
DESTROYER
MAIN
REVISION
SERIAL NUMBER
DO NOT OPEN
RISK OF ELECTRIC SHOCK
WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK, DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR
MOISTURE. DO NOT REMOVE COVER.
AVERTISSEMENT:
POUR RÉDUIRE LES RISQUES D'INCENDIE
OU DE CHOC ÉLECTRIQUE, NE PAS EXPOSER CET APPAREIL À LA
PLUIE OU À L'HUMIDITÉ. NE PAS RETIRER LE COUVERCLE.
ATTENTION
:
NE PAS OUVRIR -RISQUE DE
CHOC ELECTRIQUE-
ON
POWER
SIG/OL
SIG/OL
U
MAX
LI MIC
U
MAX
LINE MIC
PA
DJ
MON
SOLO
1
ON
HOLD TO
CLEAR
2
3 4
LIMIT
ON
LOGO
OFF
SPEAKER MODES
PA
DJ
MON
SOLO
20Hz 100Hz 1kHz 20kHz
20Hz 100Hz 1kHz 20 kHz
R L
GAIN
GAIN
SPEAKER
MODE
FEEDBACK
DESTROYER
MAIN
REVISION
SERIAL NUMBER
DO NOT OPEN
RISK OF ELECTRIC SHOCK
WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK, DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR
MOISTURE. DO NOT REMOVE COVER.
AVERTISSEMENT:
POUR RÉDUIRE LES RISQUES D'INCENDIE
OU DE CHOC ÉLECTRIQUE, NE PAS EXPOSER CET APPAREIL À LA
PLUIE OU À L'HUMIDITÉ. NE PAS RETIRER LE COUVERCLE.
ATTENTION
:
NE PAS OUVRIR -RISQUE DE
CHOC ELECTRIQUE-
Those first two examples just barely scratch the surface of the capabilities of the ProDX...let’s kick this
thing into high gear! Here we have a (somewhat) typical band setup, be it at a local club or glorified
band practice.
This ProDX has mics connected to the channel 1 and 2 inputs, a guitar (through effects processor)
and bass directly into the channel 3 and 4 inputs...and we’ve only used half of our inputs at this point!
Let’s get our money’s worth by connecting an electronic drum set to channel 5, an old-school synth
to channel 6 and a smart phone to the 1/8" stereo channel 7/8 input (or connect via Bluetooth!)
for intermission music. All input levels may be adjusted as described on page 10.
The house PA is a pair of SRM1550 subwoofers and SRM450 loudspeakers (connected to the main L/R
out), while the front of the stage houses a couple of SRM450s (connected to the aux outs) that are used
as wedges.
