Typical Recording System

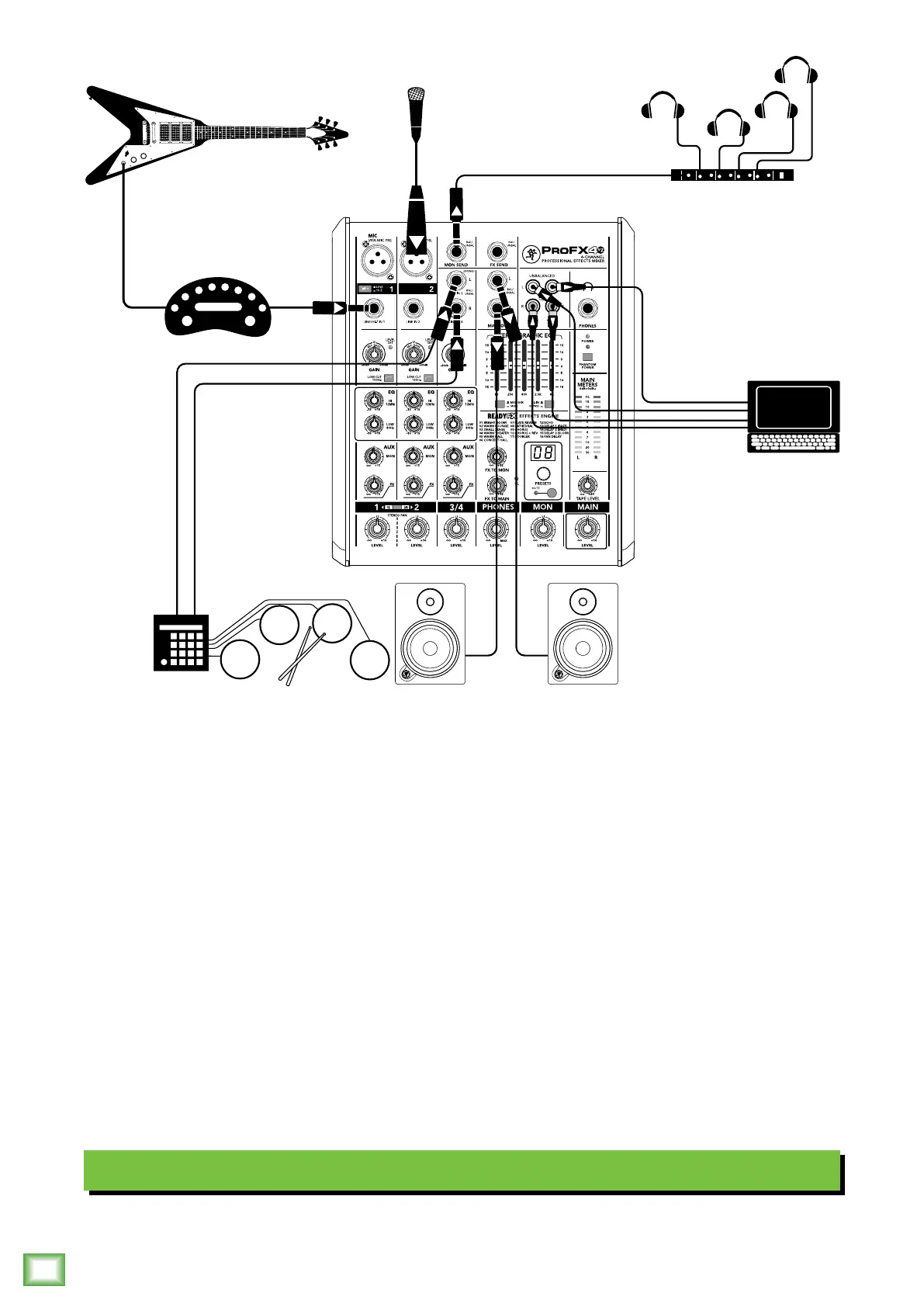

This diagram shows a Flying V plugged into a modeling device which is then connected to the channel
1 line input with the line/hi-z switch disengaged. [The modeling device is at line-level, not instrument].
A microphone is connected to the channel 2 XLR input for vocals and a drum machine is attached to the
channel 3-4 line-level inputs.
MR8mk3 powered reference monitors are connected to the left and right main output. Headphones
connected to the mon send via a headphone amp are available for the talent to utilize when tracking.
A laptop connects to the stereo tape inputs and outputs to record the 2-channel main mix to the DAW,
as well as play back two channels from the DAW.
