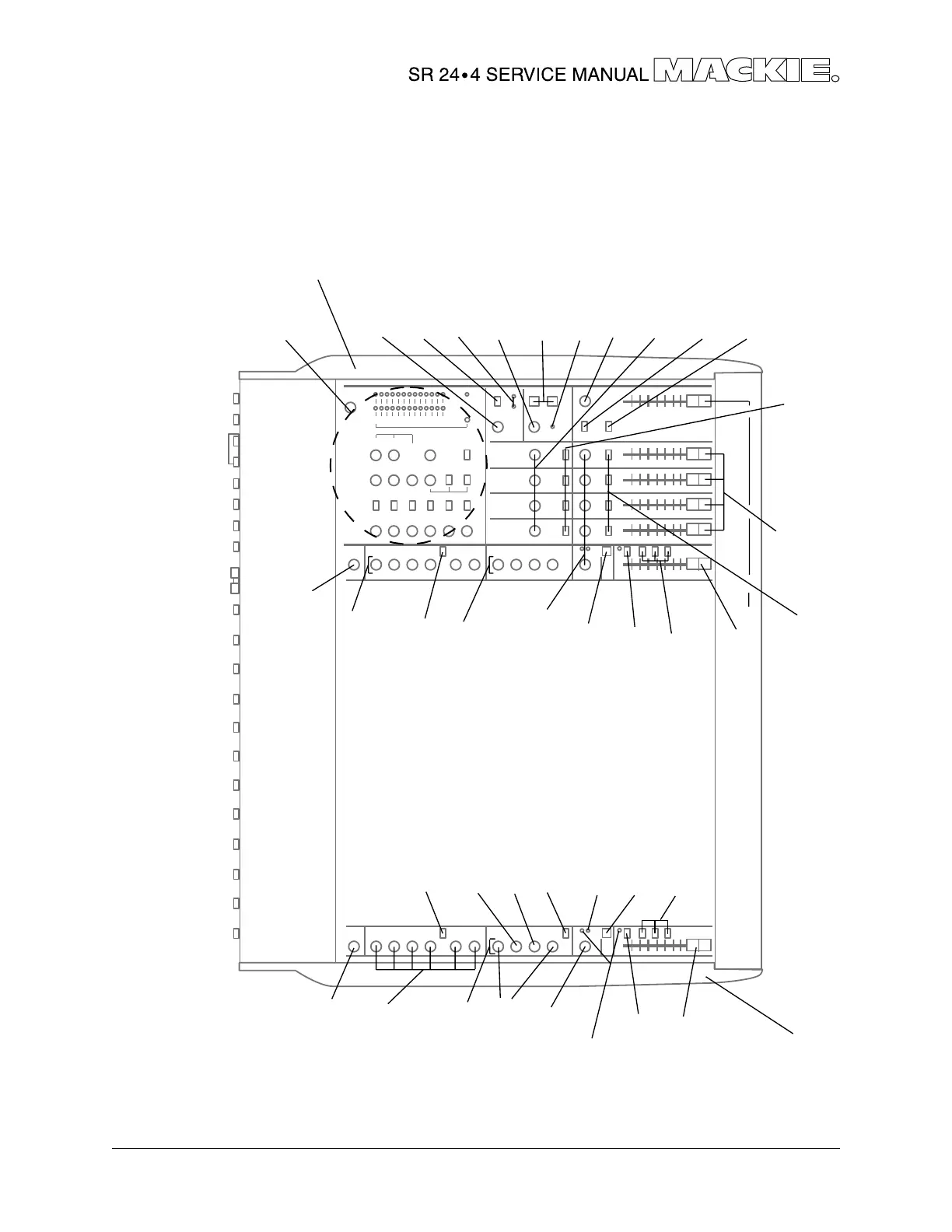

QUICK PARTS
GAIN TRIM knob 760-048-01 50KG pot 130-061-02
AUX
(pre)
button 760-003-00 switch 500-018-00
AUX SENDS (red) knob 760-048-02 50KG pot 130-003-02
EQ section (blue) all knobs 760-048-03 50KB pot 130-066-02
MUTE button 760-011-00 switch 500-018-00
FADER knob 760-037-01 50KD pot 130-032-00
BALANCE (dark grey) knob 760-048-04 656 pot 130-065-02
BUS ASSIGN button 760-003-00 switch 500-018-00
SOLO button 760-013-00 switch 500-012-00
RED LEDS 304-001-00
FADER knob 760-037-01 10KD pot 130-031-00
L/R ASSIGN button 760-013-00 switch 500-018-00
AIR EQ CONTROL knob 760-048-03 10KB pot 130-022-02
PHONES/CR LEVEL knob 760-048-03 50KG pot 130-061-02
TALKBACK ASSIGN buttons 760-013-00 switchs 500-012-00
YELLOW LED 304-003-00 TALKBACK LEVEL knob 760-048-01 50KB pot 130-002-02
SOLO MODE button 760-003-00 switch 500-018-00
SOLO LEVEL knob 760-048-01 50KG pot 130-061-02
AUX SENDS (red) knob 760-048-02 50KG pot 130-003-02
EQ section (blue) all knobs 760-048-03
Mid EQ 10KB pot 130-022-02
MID Freq 500KC pot 130-064-02
HI/LO EQ 50KB pot 130-002-02
AUX
(pre)
button 760-003-00 switch 500-018-00
PAN (dark grey) knob 760-048-04 656 pot 130-065-02
MUTE button 760-002-00 switch 500-018-00
SOLO button 760-013-00 switch 500-012-00
BUS ASSIGN button 760-003-00 switch 500-018-00
FADER knob 760-037-01 10KD pot 130-031-00
RED LEDS 304-001-00
GREEN LED 304-004-00
GAIN TRIM knob 760-048-01 5KZY pot 130-030-02
LO - CUT button 760-003-00 switch 500-018-00
TAPE RET. TO PH / CR button 760-003-00 switch 500-018-00
TAPE RET. TO MAIN MIX button 760-003-00 switch 500-018-00
Exploded view - see next page
SUB SOLO button 760-013-00 switch 500-012-00
05/99
END CAP - LEFT
760-045-20
END CAP - RIGHT 760-045-10
1/4" JACKS
400-214-00 400-223-00
XLR JACKS
