Maco MULTI - MULTI POWER Hinging and Unhinging

- 15 -
MACO
MULTI
2
1
4
5
6
3

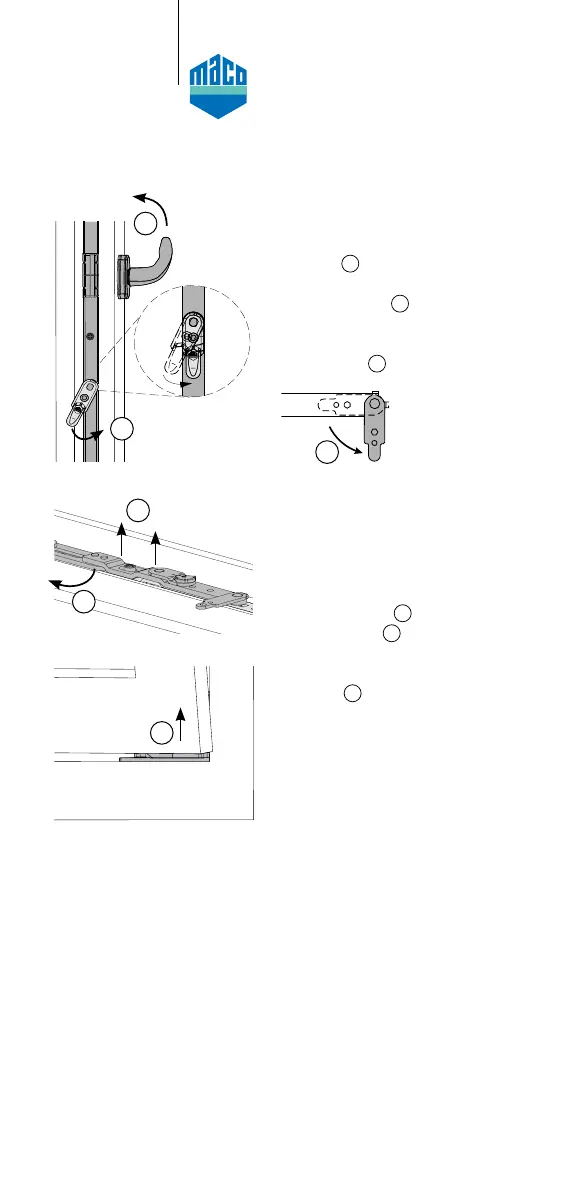

■ MULTI POWER (see also video at www.maco.eu):
1. Open the sash 90°.
2. Trigger the mishandling
device
1
(only on turn&tilt
windows), turn the handle to
the tilt position
2
.
3. Open the scissor stay arm safety
device/turn-only hinge arm sa-
fety device
3
.
4. Lift the scissor stay and/or
turn-only hinge arm until it is
completely free
4
, then move it
into the frame
5
.
5.Closethesash.
6. Tilt the sash slightly and lift it up
and out
6
.
For hinging, carry out the above
steps in reverse order.
Disposal:
Disposal of hardware and hinge components must comply with
local regulations or laws.
Dear customer,
if you have any ideas or suggestions for improving our instructions,
please send them by e-mail to:
feedback@maco.eu.
