Maco MULTI - Setting the Turn-Only, Turn&Tilt and Tilt-First Sash; Setting Scissor Stay or Turn-Only Hinge

- 6 -
MACO
MULTI
max. 1
+2,85 / -1,8
4
1.
-3 / +5
9

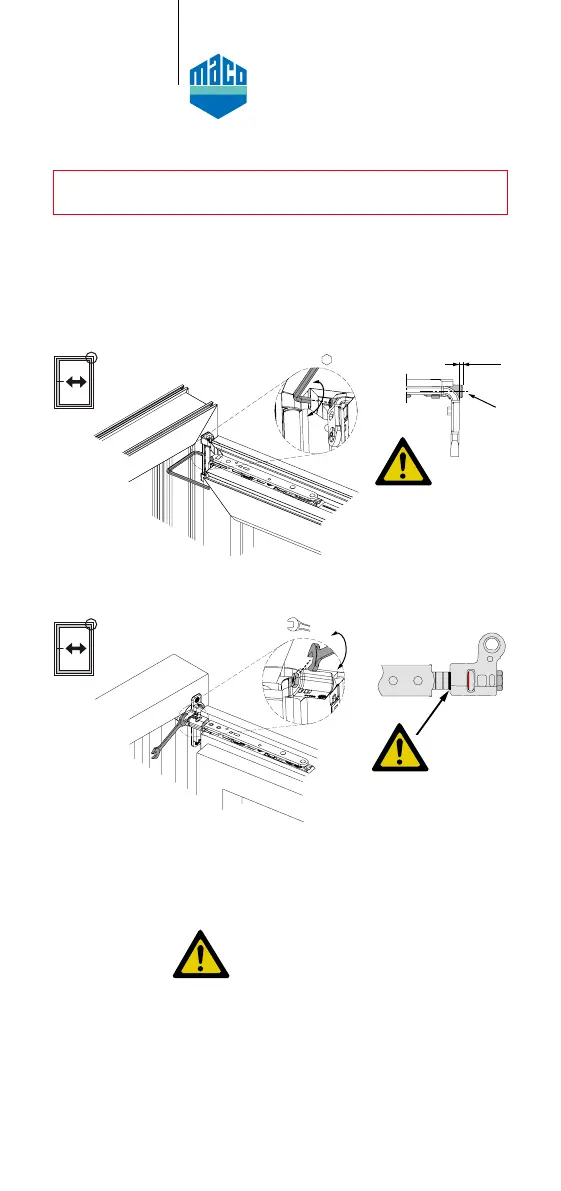

Setting scissor stay or turn-only hinge
1. Lift/lower
■ MULTI-MATIC / MULTI-TREND corner hinge version
■ MULTI-MATIC / MULTI-TREND stay and hinge
The adjusting screw
must not protrude
more than a
maximumof1mm!
The sash may only be
lowered to the third notch
and/or to the red mark,
otherwise the sash can fall
out!
Adjustmentvaluesarealwaysspeciedinregardtothehinge-side
air gap and/or the bottom horizontal air gap.
■ MULTI MAMMUT
The side adjustment of the scissor stays
up to version 2 requires the mandatory use
of feeler gauge item no. 468684 to ensure
that the minimum adjustment measure-
mentisnotunderrun!
